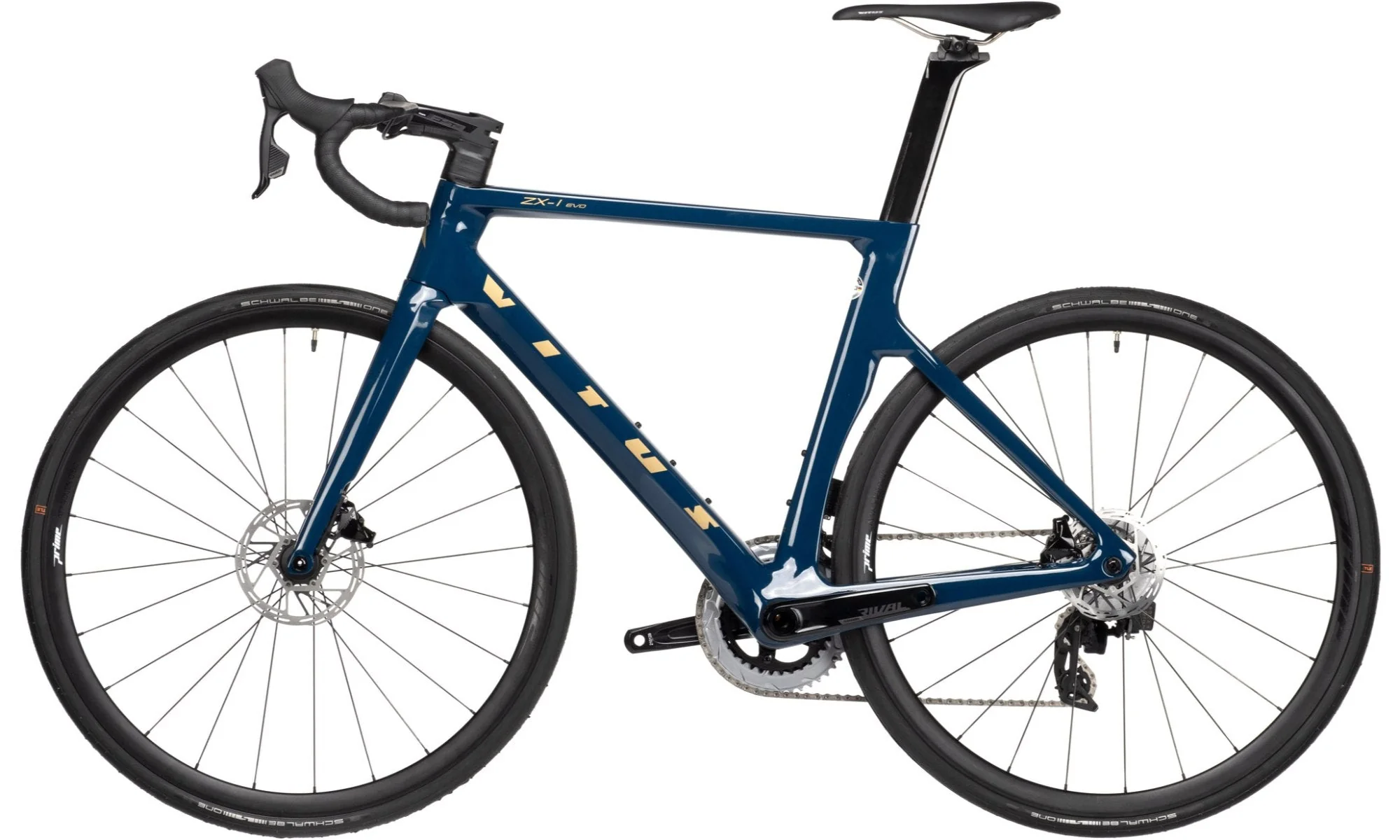

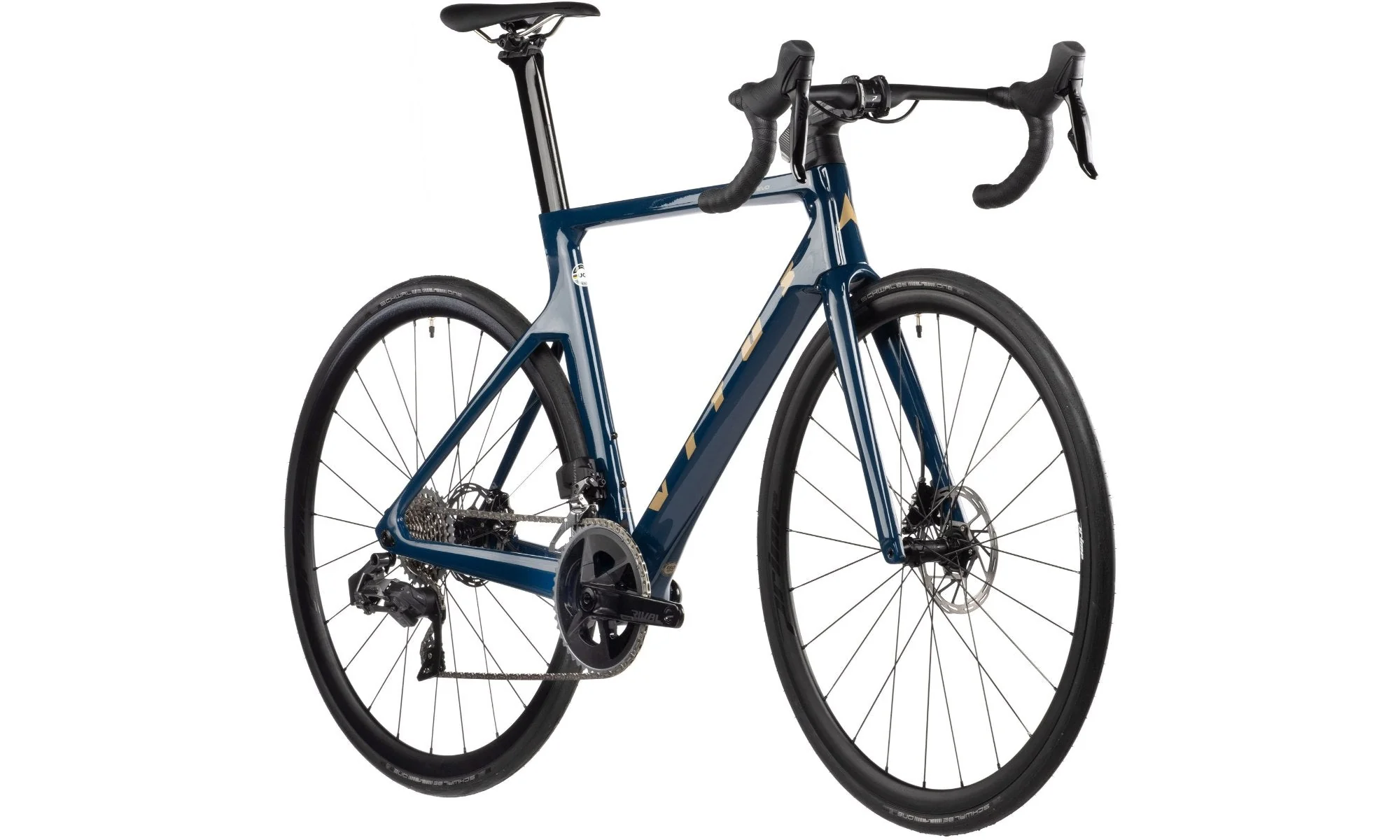

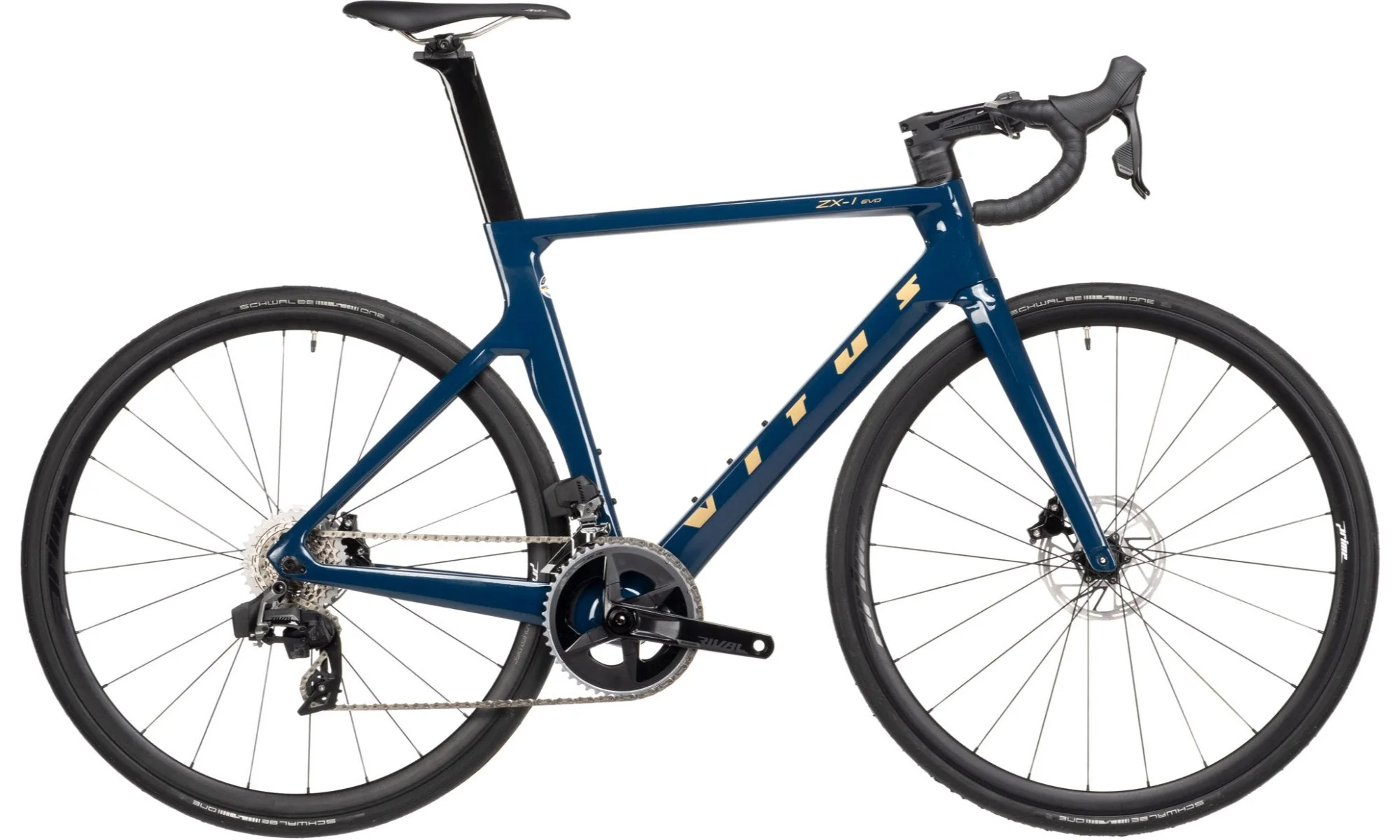

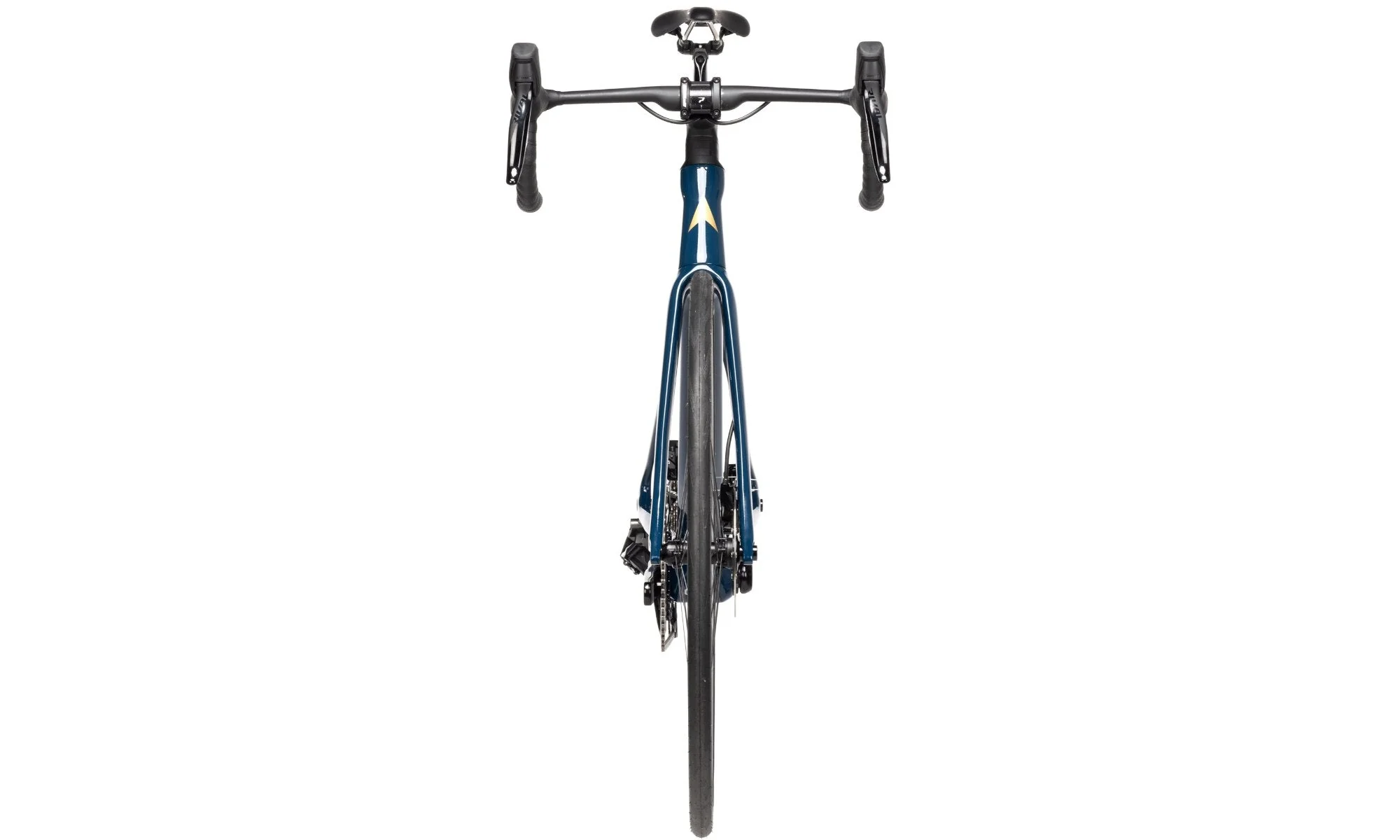

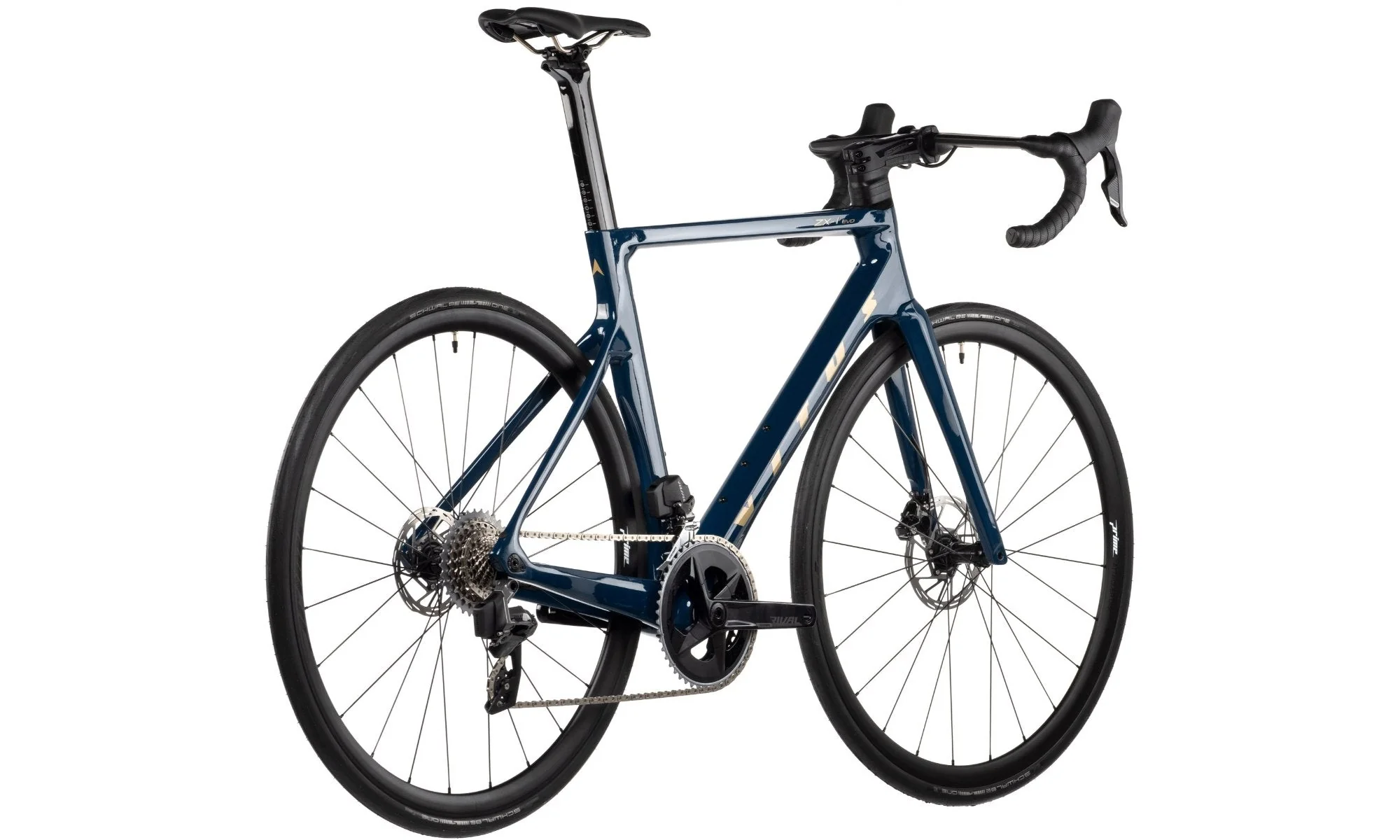

ZX1 EVO CR eTap AXS Road Bike Rival (2021)
The All New ZX-1 EVO
An evolution. For it's 20th birthday the ZX-1 has been given the 'EVO' treatment. A fresh aero design, optimised by aerodynamic specialists based at the famous Silverstone race track has resulted in a frameset offering 18% less drag than the previous ZX-1. All new and much refined Race-Fit geometry including a longer top tube, lower front end and shorter chain stays gives the perfect balance of fit and control.
Fitted with SRAM's brand new Rival eTap AXS HRD with wireless electronic shifting. This 12 speed groupset offers modern gearing ratio's, advanced chain management and easy personalisation via the app. Top technology in an efficient package, with amazing value.

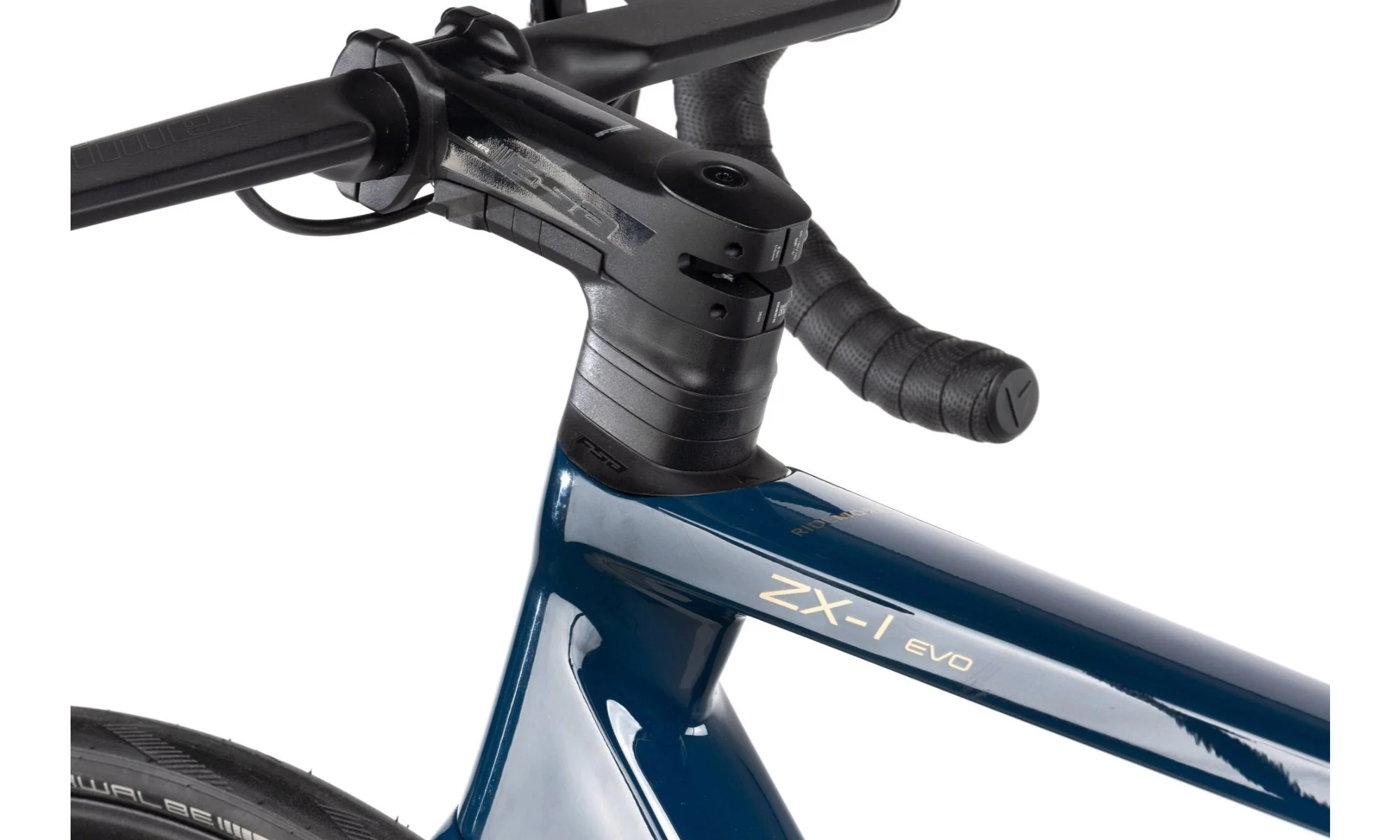

The CR eTap AXS is paired with Prime Attaquer tubeless ready disc brake wheels, fitted with Schwalbe's Pro ONE Performance TLE tyres. The cockpit features an integrated cable design, utiliting the FSA ACR headset system, FSA's SMR stem and Prime Primavera handlebar.
- Race-Fit geometry

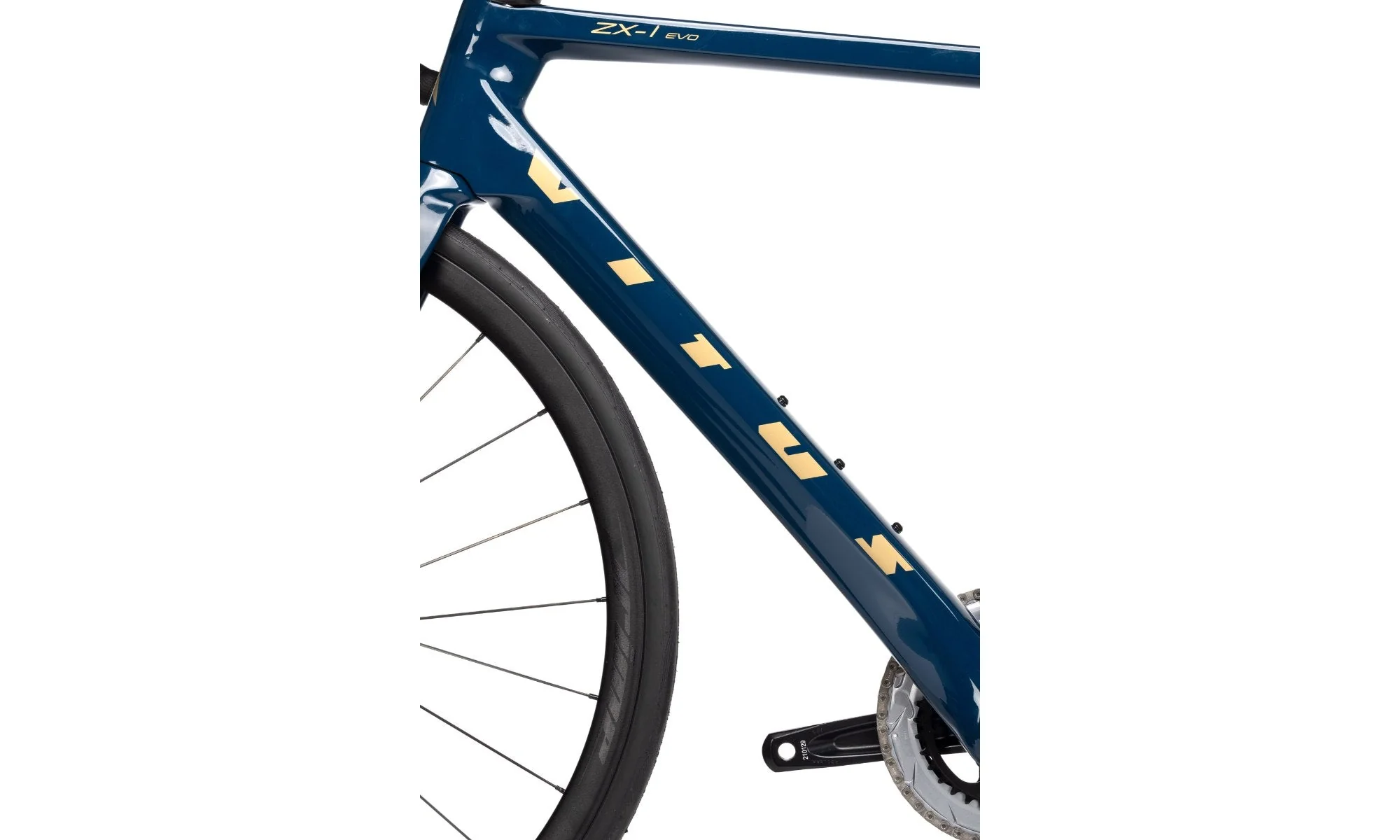

- SL UD Carbon aero frame and fork with integrated seat clamp
- Full internal cable routing
- SRAM RIVAL eTap AXS HRD groupset
- Prime Attaquer Disc Road wheelset

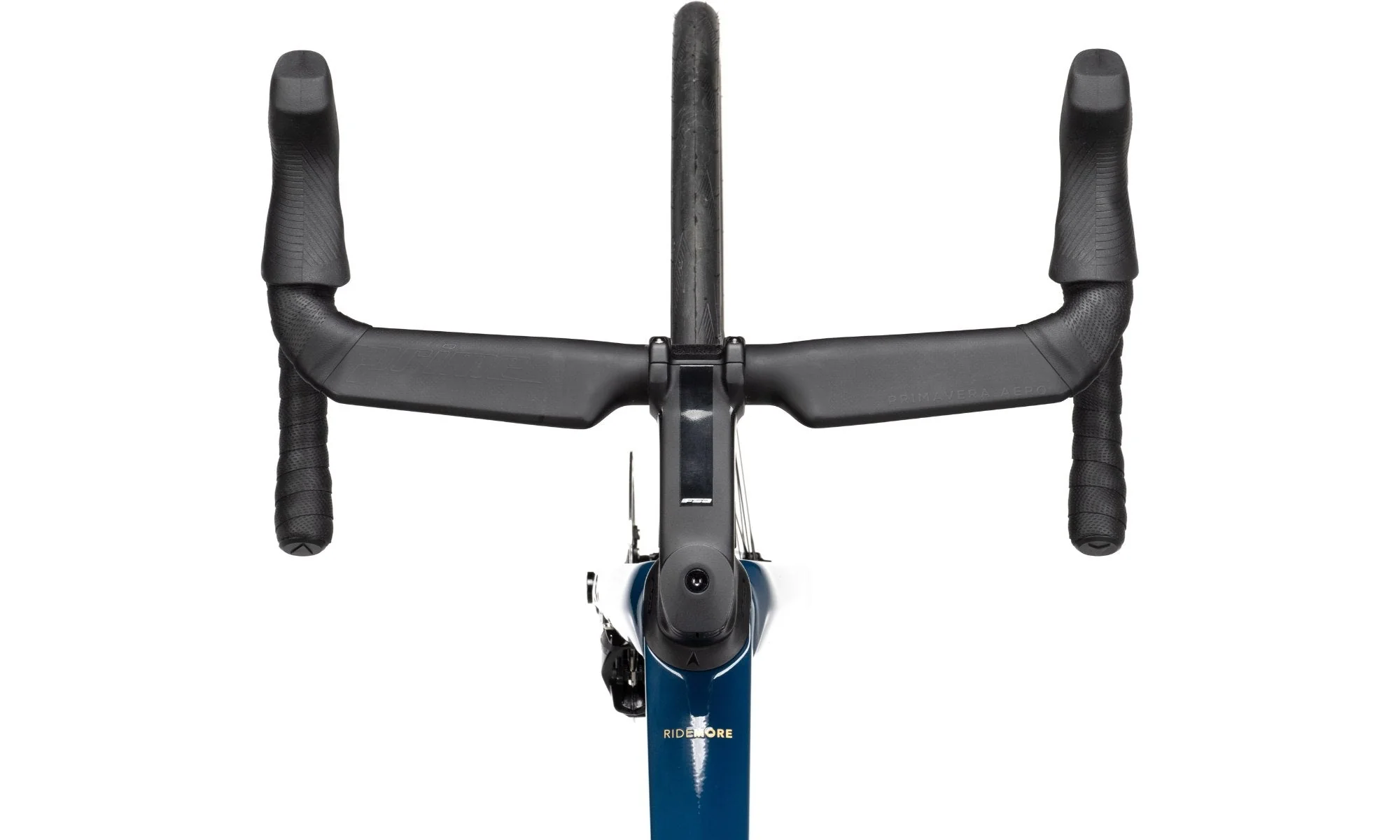

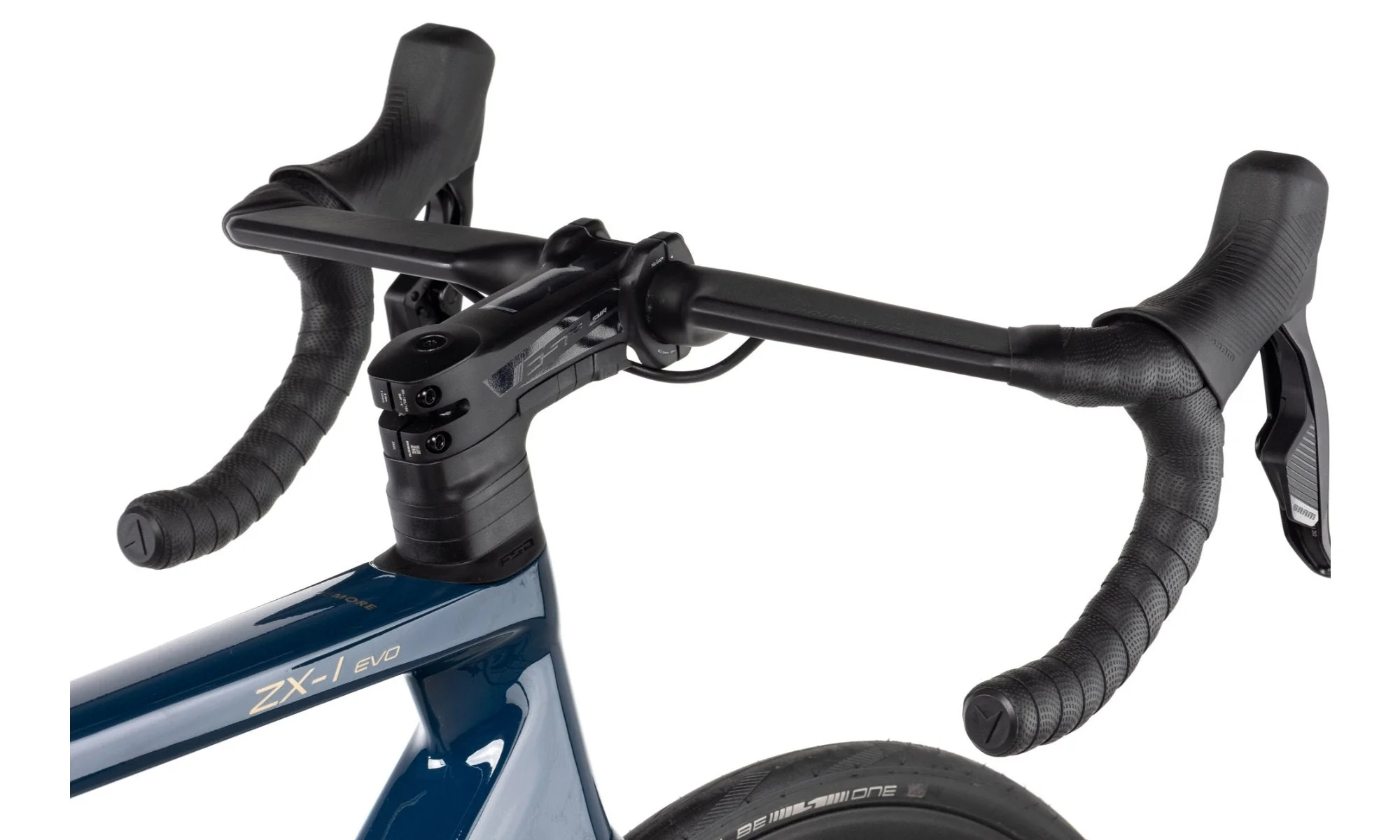

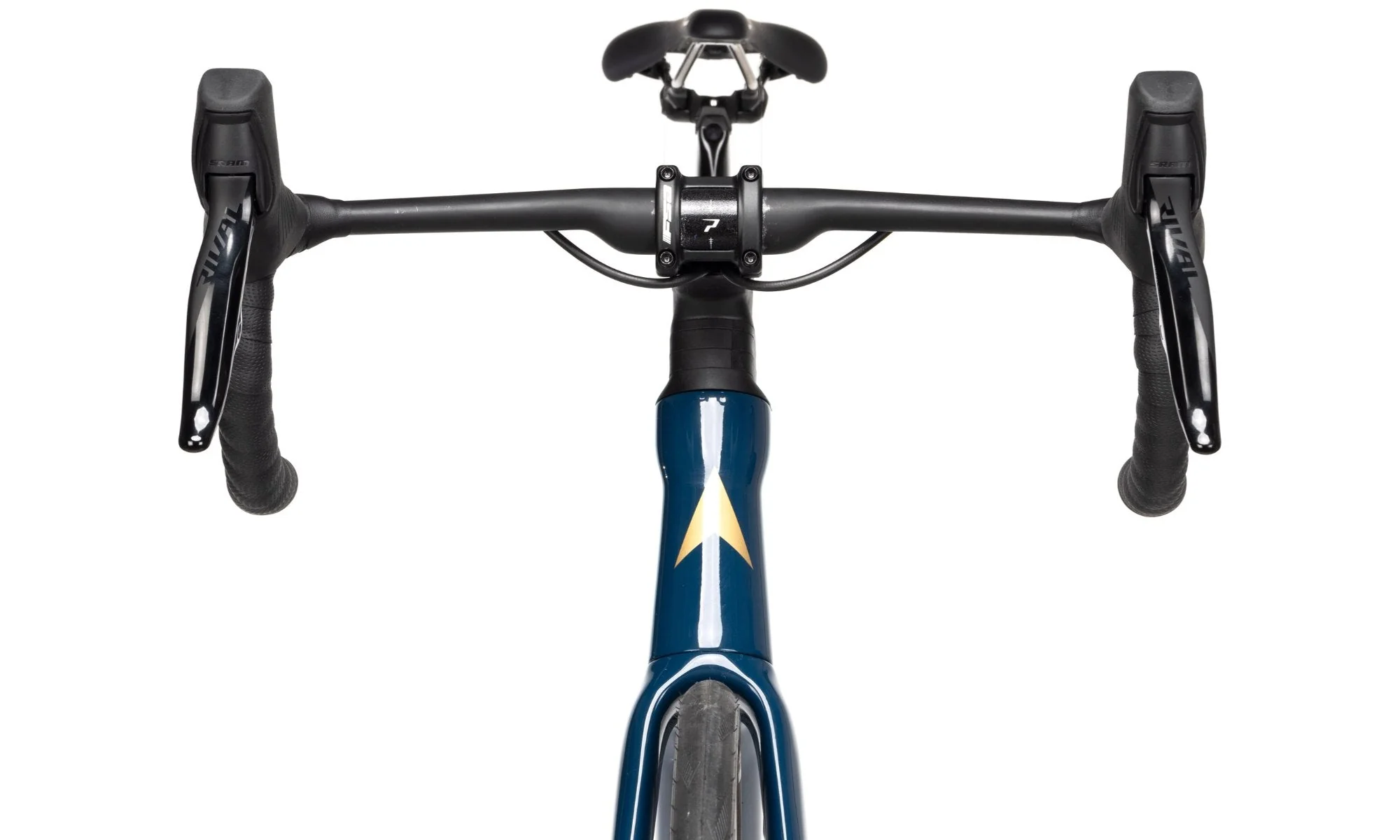

- FSA SRM stem and Prime Primavera carbon handlebar
Features:
EVO Carbon PlatformRace Performance |
Frame MaterialSL UD Carbon |
Wheel Size700c |
Available SizeXS, S, M, L, XL, XXL |
ColourMidnight Blue |
Weight:Medium: 8.1kg |
Specifications
 FRAMEZX-1 EVO Carbon SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount |
 REAR HUB N/A N/A |
 FORKSZX-1 EVO Carbon SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific |
 SPOKESN/A
N/A |

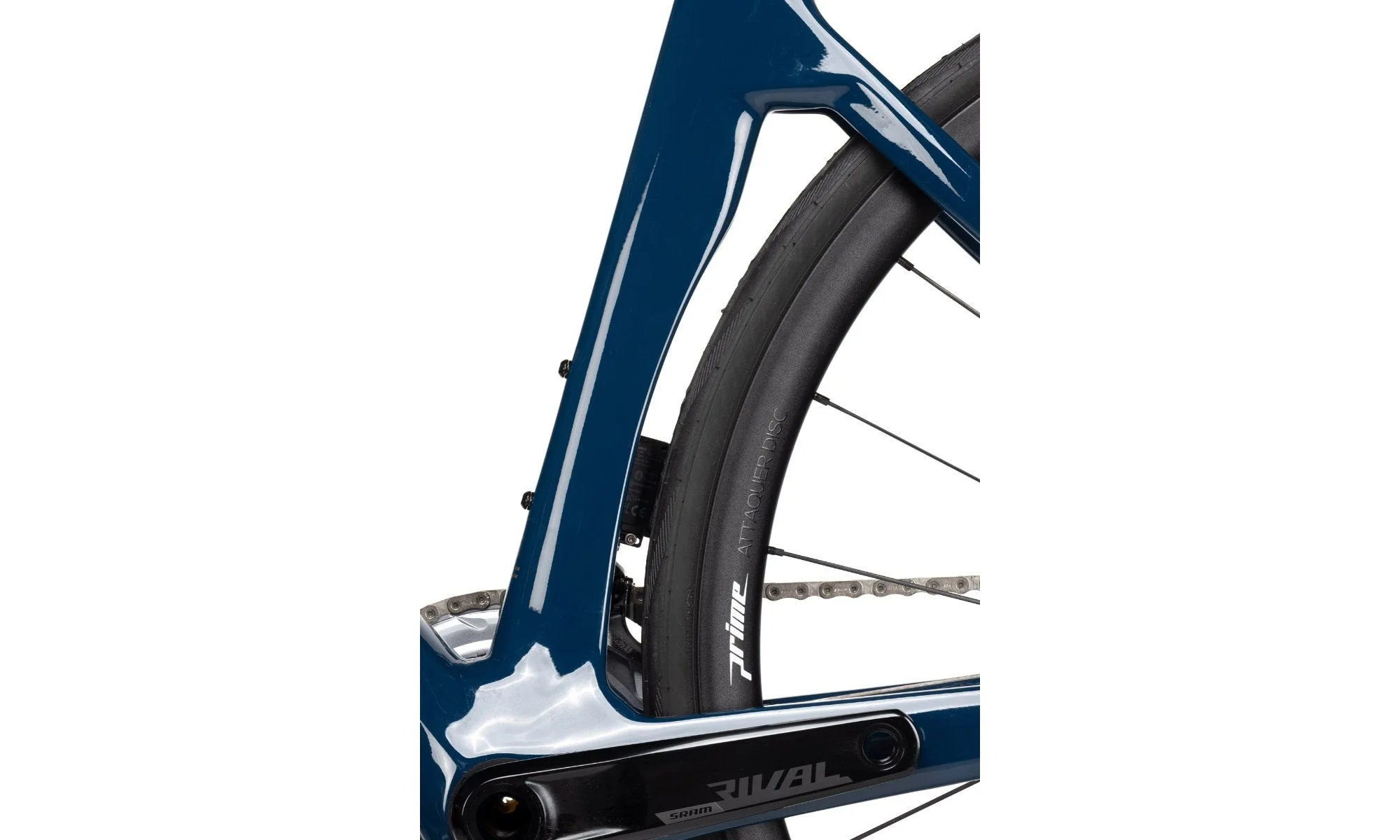

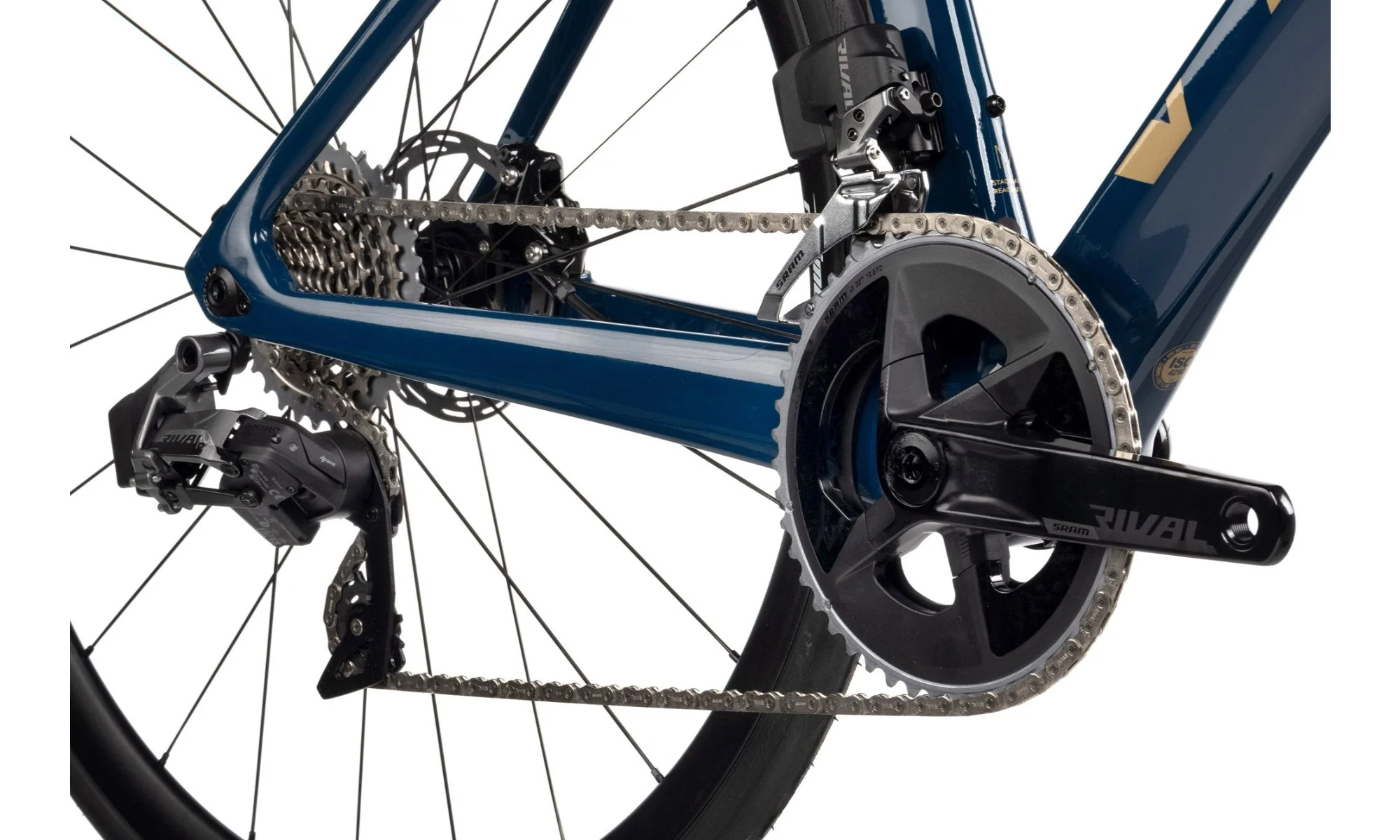

 CHAINSETSRAM RIVAL D1 DUB 48/35T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm |
 FRONT TYRESchwalbe ONE Performance 700c x 25, Tubeless Ready TLE, Race Guard |
 BOTTOM BRACKETSRAM DUB 386 DUB For BB386EVO |
REAR TYRESchwalbe ONE Performance 700c x 25, Tubeless Ready TLE, Race Guard |
 FRONT DERAILLEURSRAM RIVAL eTap AXS N/A |

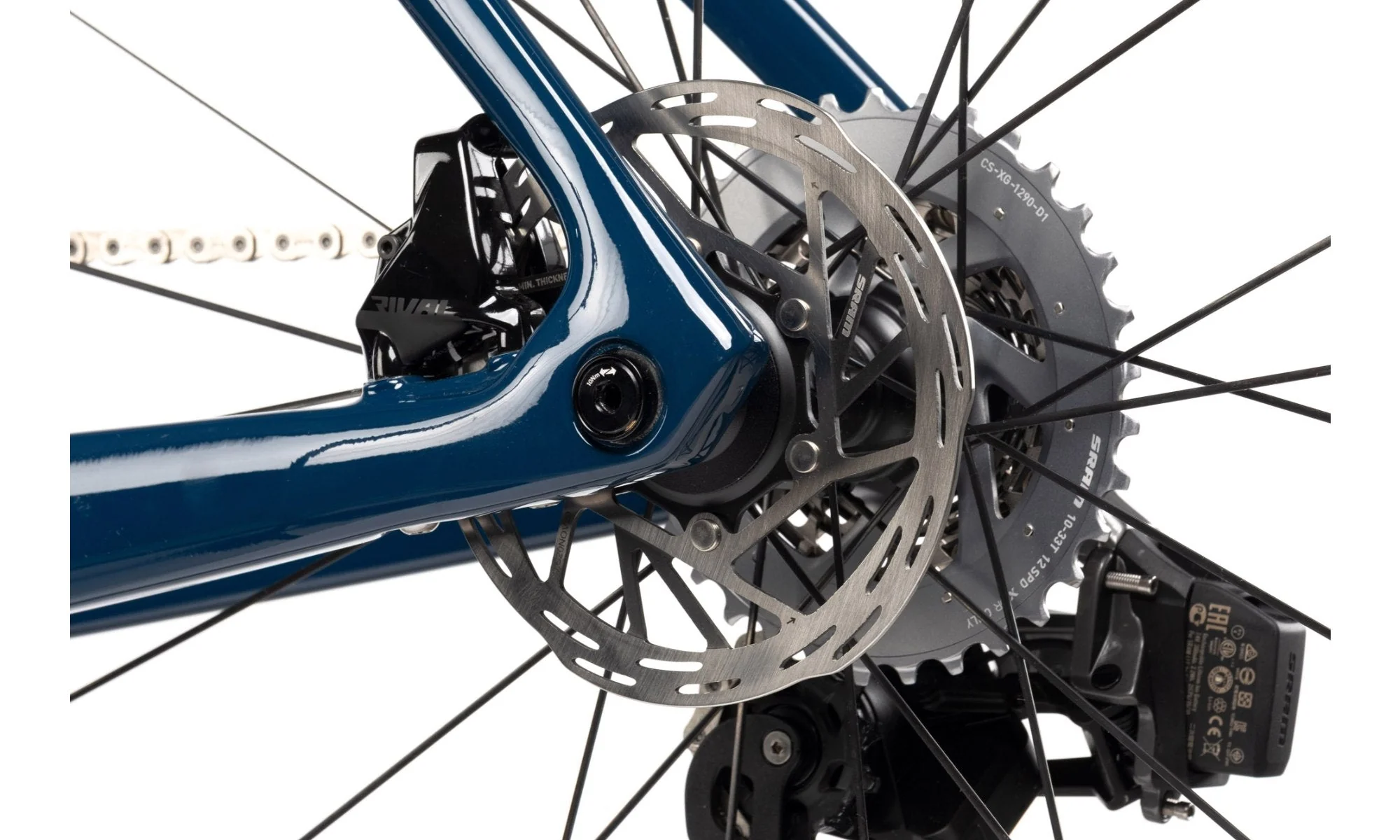

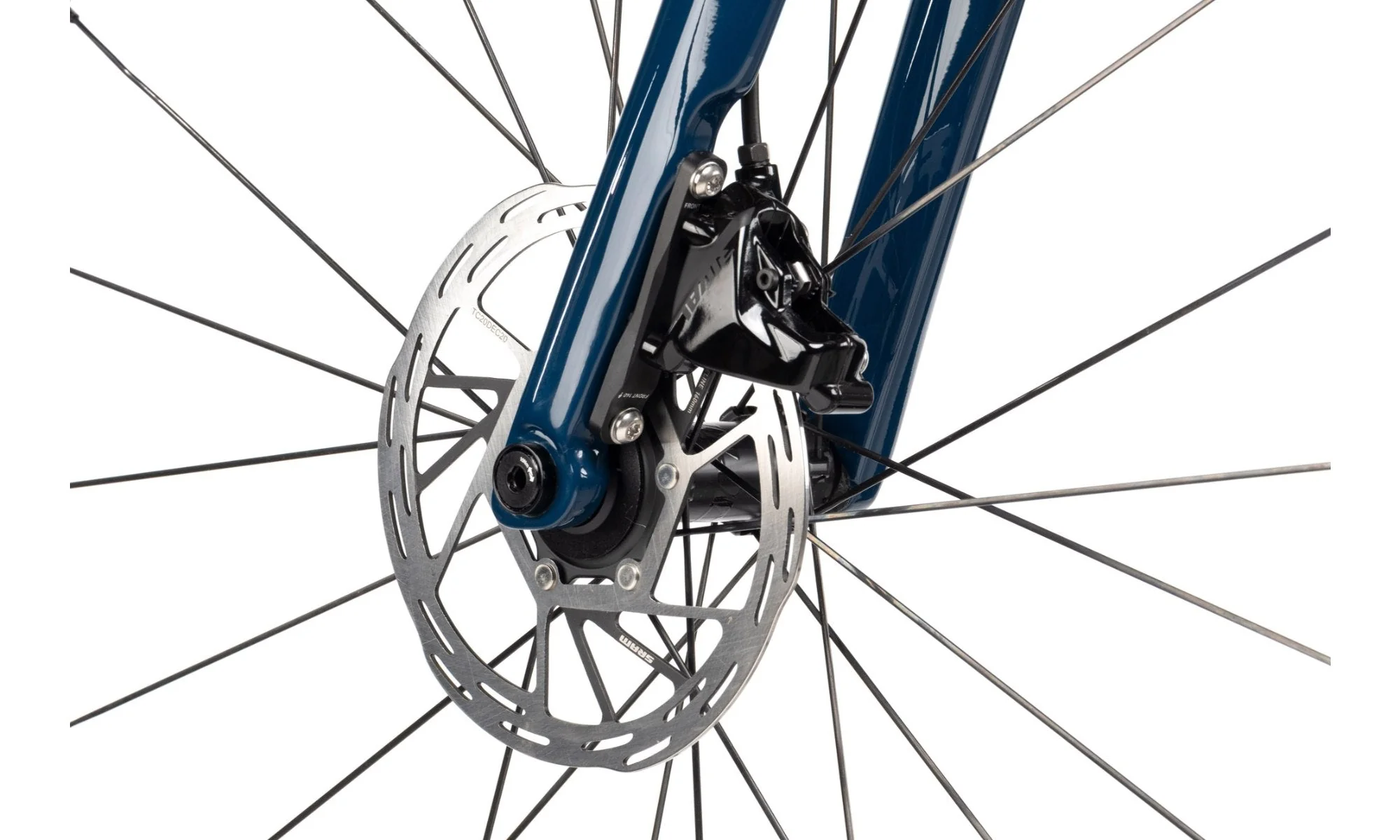

 BRAKESSRAM RIVAL eTap AXS D1 Disc Hydraulic Disc, Flat Mount |
 REAR DERAILLEURSRAM RIVAL eTap AXS 12 Speed, Short Cage, |
BRAKE ROTORSSRAM Paceline Front:160mm, Rear:140mm |
 FRONT SHIFTERSRAM RIVAL eTap AXS N/A |
 US Carbon, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm |
|
12 Speed |
 Bar Bore 31.8mm, XS:100mm S:100mm M:110mm L:110mm XL:120mm XXL:120mm |
 CASSETTESRAM Red 1290 10-33T |
 Sealed Bearings, 1.5" 36x45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover |
 12 Speed |
 Anti Slip |
 N/A |
 CRN-Ti Rail, Pressure Relief Channel |
|
N/A |
 +20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm |
|
N/A |
 Internal Wedge System |
Original: $4,805.93
-70%$4,805.93
$1,441.78
