Vitus Sommet 27 CRX Mountain Bike Frame (2021)

Enduro Optimised Geometry and Suspension

The all new Vitus Sommet is a 170mm big hitting enduro bike that features a redesigned carbon front triangle paired with an aluminium rear end. With revamped geometry and improved suspension kinematics, the Sommet is ready to tackle the roughest trails there are, from big mountain alpine descents to steep technical enduro trails.



Improved Suspension Leverage Curve and Sensitivity

We have straightened this bike's leverage curve and increased the progressivity to improve the small bump sensitivity and mid stroke support to keep you in control when the trails get rough. Along with improved geometry the new Sommet also has more seat post insertion which allows for a longer dropper post to be fitted. Basically, the Sommet is better in every way. If you want a confidence inspiring Enduro bike that will help guide you down the roughest trails then the Sommet is for you.

All-New Sommet  Updated modern geometry with adjustable flip chip

Frame Material Ultra Strong T700 Carbon Front/6061 Aluminium Rear

Suspension Travel Recommended 170mm Front, 168mm Rear

Wheel Size 27.5"

Available Size S, M, L, XL

Colour Oryx White

Weight: Medium: 4.36kg



Specifications

Material	Ultra Strong T700 Carbon Front/6061 Aluminium Rear
Fork Travel (Recommended)	170mm
Axle to Crown (Recommended)	562mm
Fork Offset (Recommended)	42mm
Rear Travel	168mm
Wheels Size	27.5"
Max Tyre Size	2.5"
Recommended Shock Sag (Measured seated)	30%
Shock Size	205x65mm
Shock Hardware F	25x8mm
Shock Hardware R	30x8mm
Sizing	S/M/L/XL
Headtube	44-56mm Tapered Semi-Integrated
Headset	OD44, 44/28.6 – 56/40
Bearings Required	4x (6901-2RS) 6 x (6802V-2RS) 2 x (6902-2RS)
Seatpost	31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp	36.4mm
BB	Threaded 73mm BSA
Rear Hub	Boost 148x12mm
Rear Axle	SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
Chain Guide	ISCG05
Brake Mount	180mm Direct Post

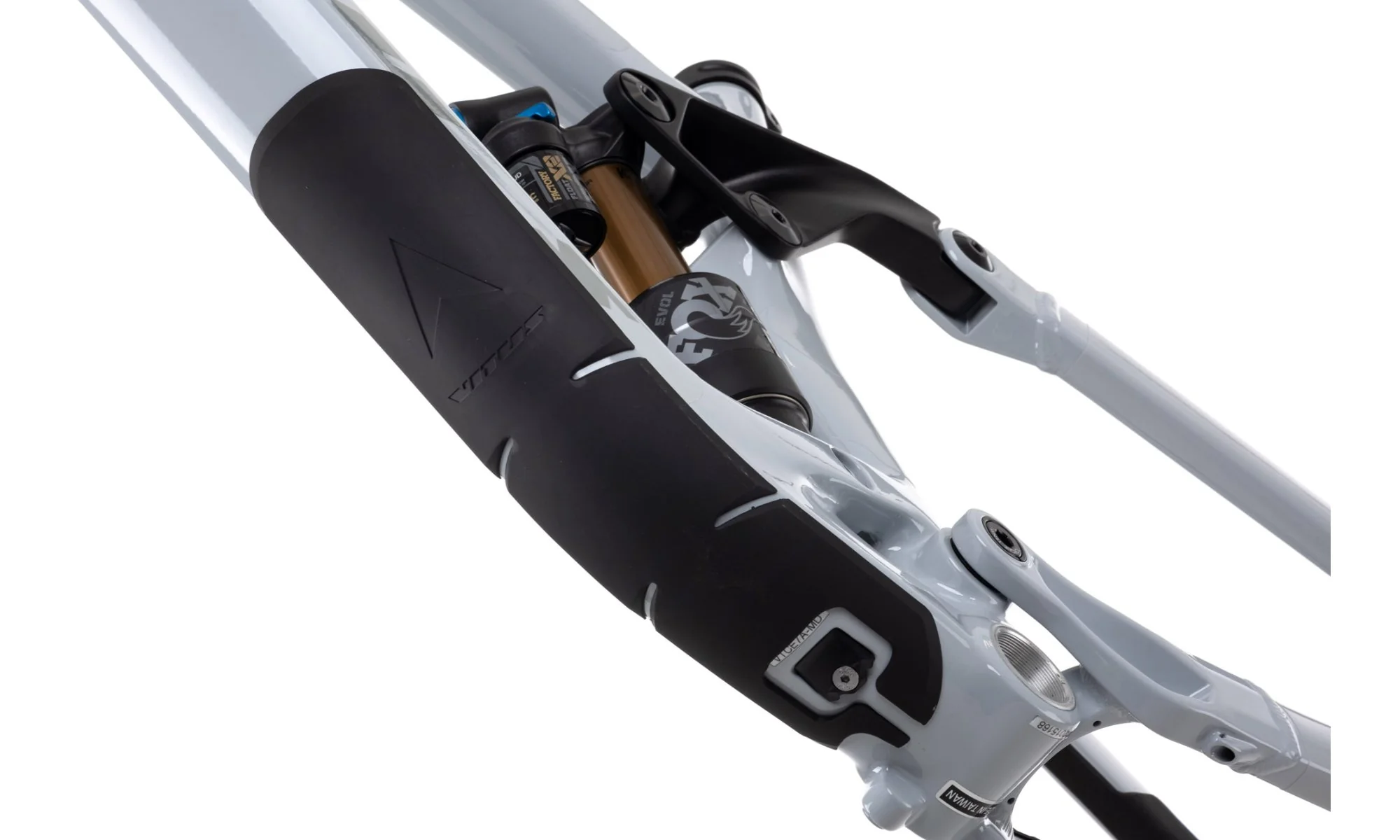

Protection	3D Contoured Rubber Frame Protection for DT/SS/CS
