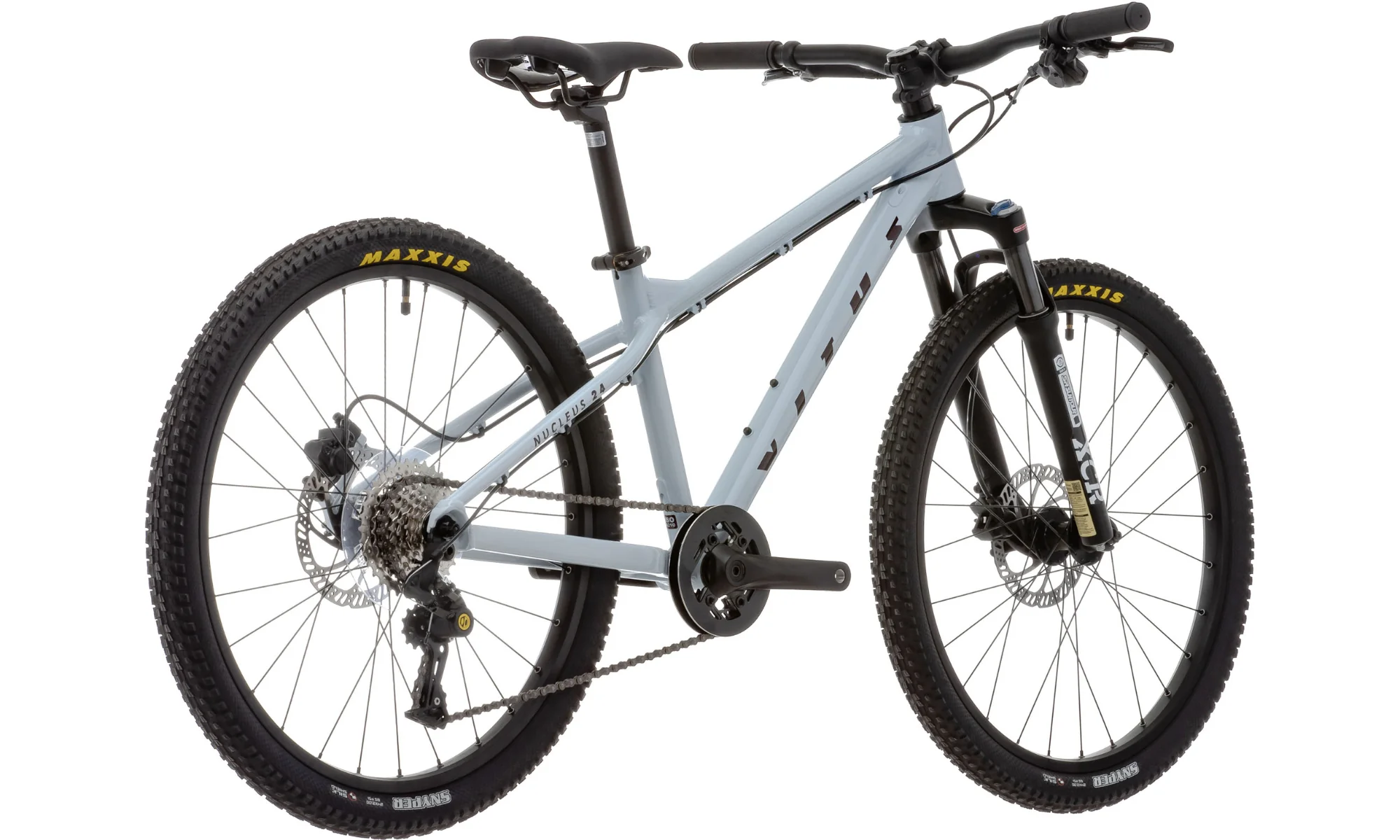

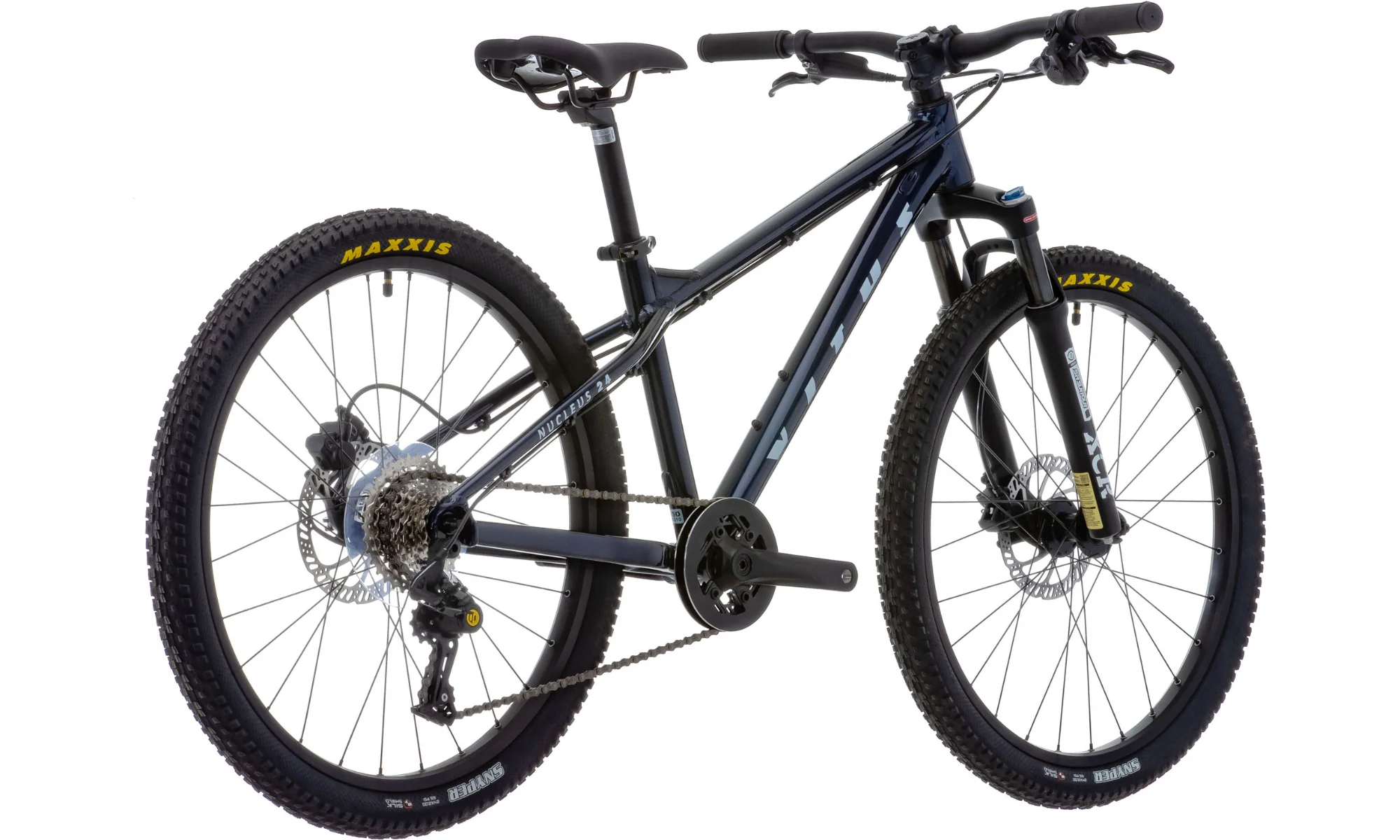

Vitus Nucleus 24 Youth Hardtail Bike (2022)

The protégé. The new kid on the block. Influenced greatly by all the good stuff we learned when creating the award-winning adult Nucleus, this youth platform brings all the same trail riding performance and hardtail fun to the next generation.

At its core, the lightweight aluminium frame utilises the familiar Vitus progressive geometry that promotes stability, control and confidence - everything you want in a bike for a smaller rider.

Helping your youngster cruise the trails and smooth out the bumps is a quality Suntour XCR air suspension fork that’s adjustable to suit their weight and can be quickly locked out for riding on harder surfaces. Hydraulic disc brakes with adjustable levers ensure that powerful stopping performance can be achieved by small hands and the Maxxis tyres deliver heaps of traction, so there will be no stopping them whatever the weather. A single front chainring keeps the maintenance low and the smooth Box Four gears include a clutch derailleur that stops the chain from bouncing or coming off. For them that means a smoother, quieter ride and for you that means no more greasy fingers at the trailside.

Staying true to the Nucleus vibe and personality, this Kids platform delivers everything that a young rider needs to experience the buzz, the thrill and the fun of riding a mountain bike. Ride with them, shred the trails with them and watch them grow in confidence, empowered by the capability that comes as standard with the Nucleus heritage.

Progressive geometry ideal for a first experience of trail riding

Lightweight 6061 T-6 aluminium frame

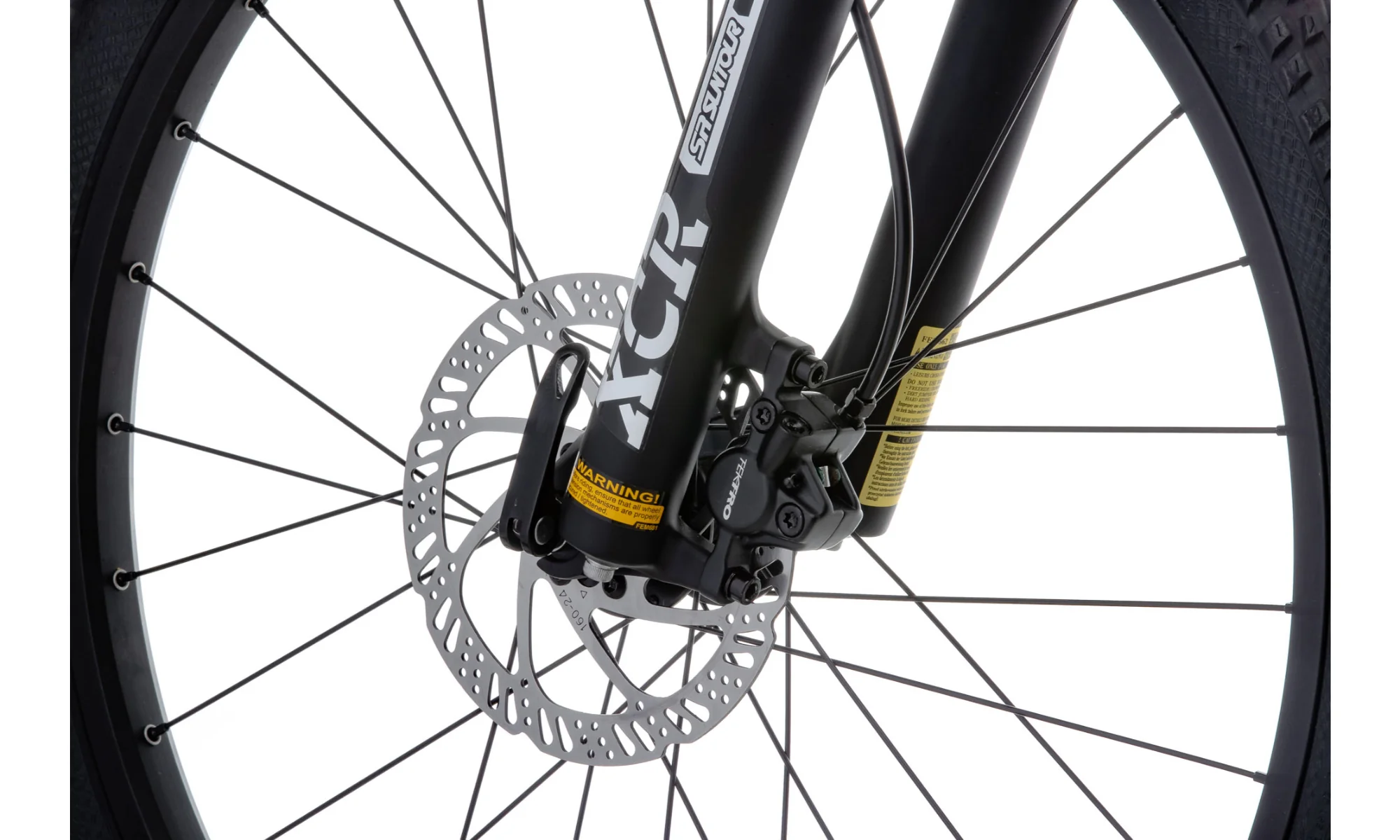

SR Suntour air sprung suspension fork with lock-out

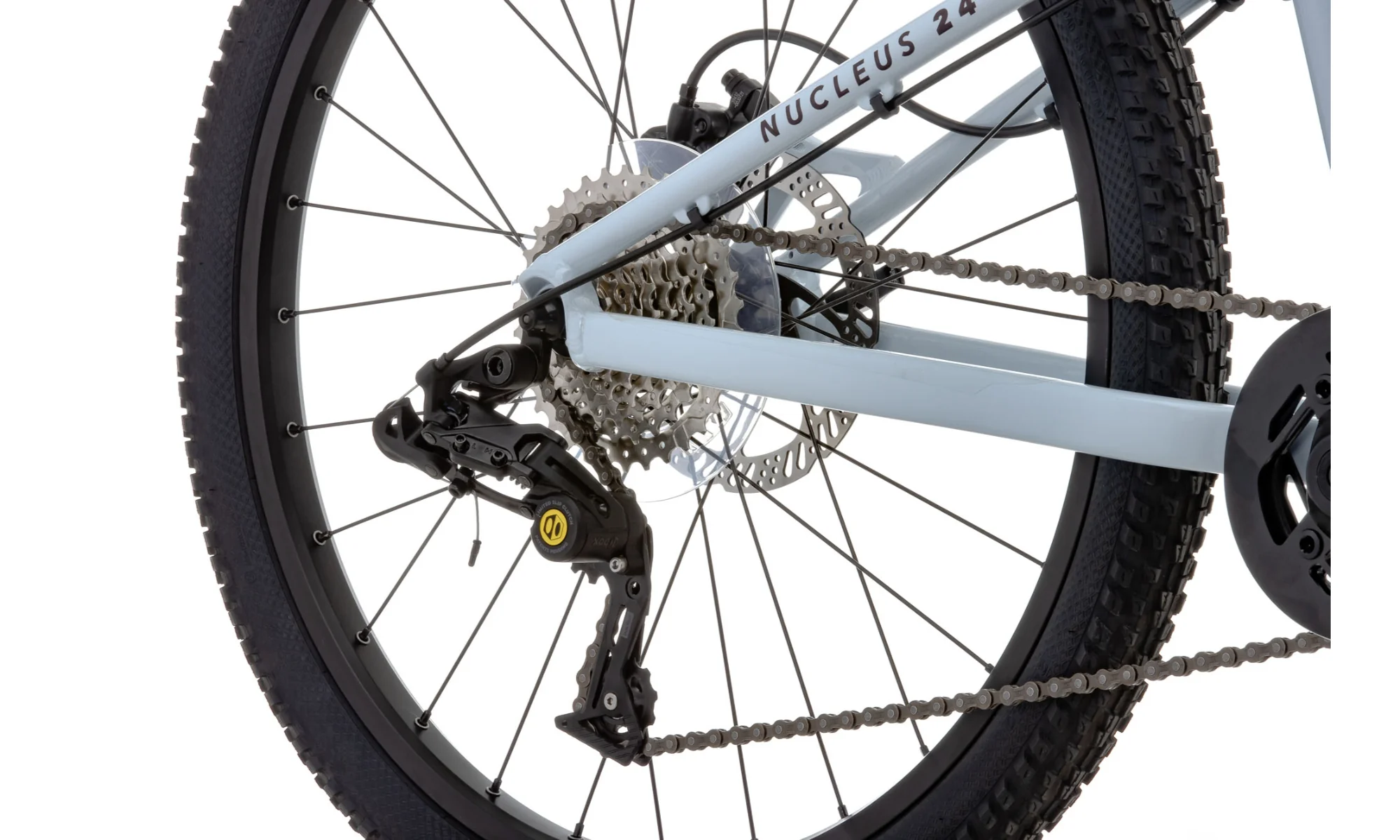

Box 1x8 speed drivetrain

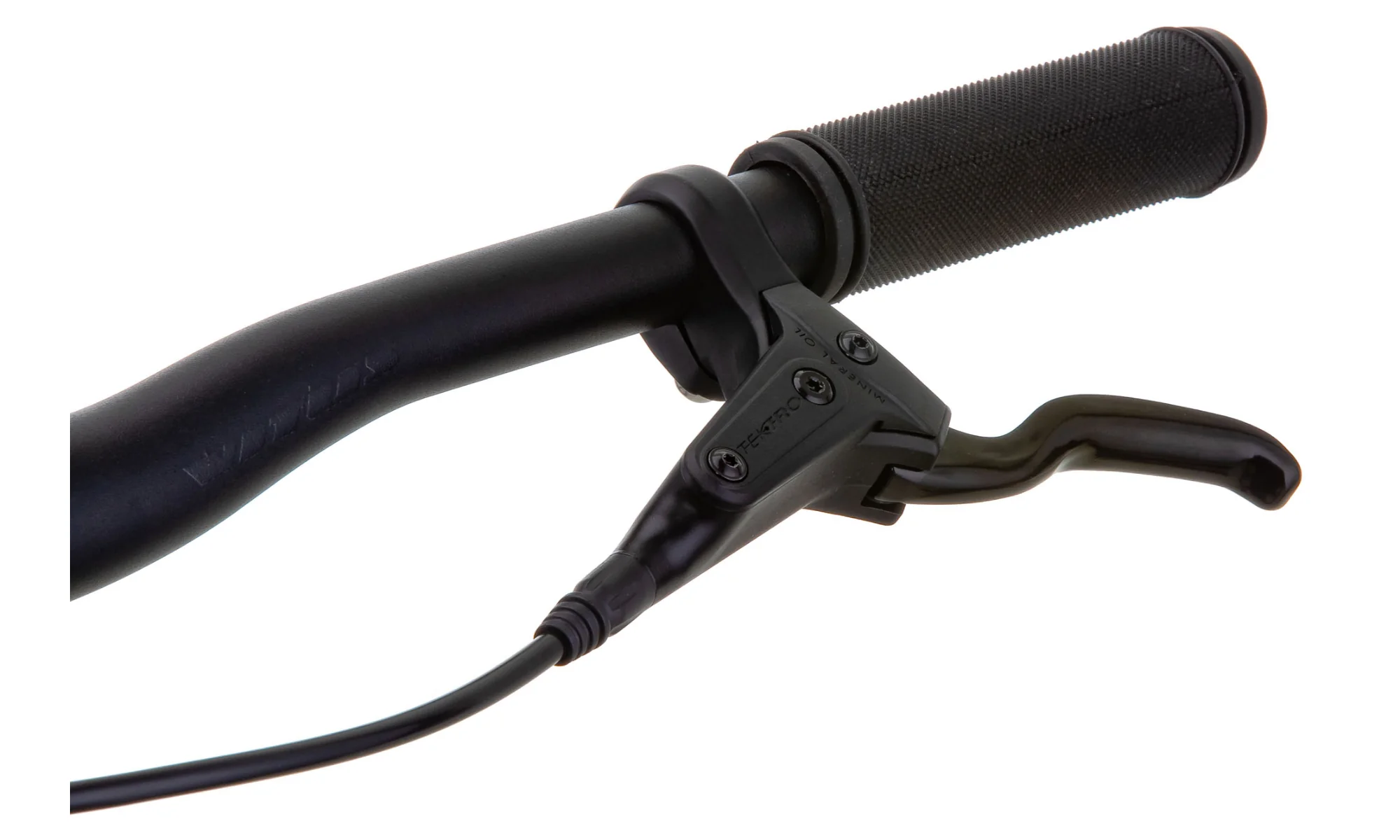

Powerful hydraulic disc brakes

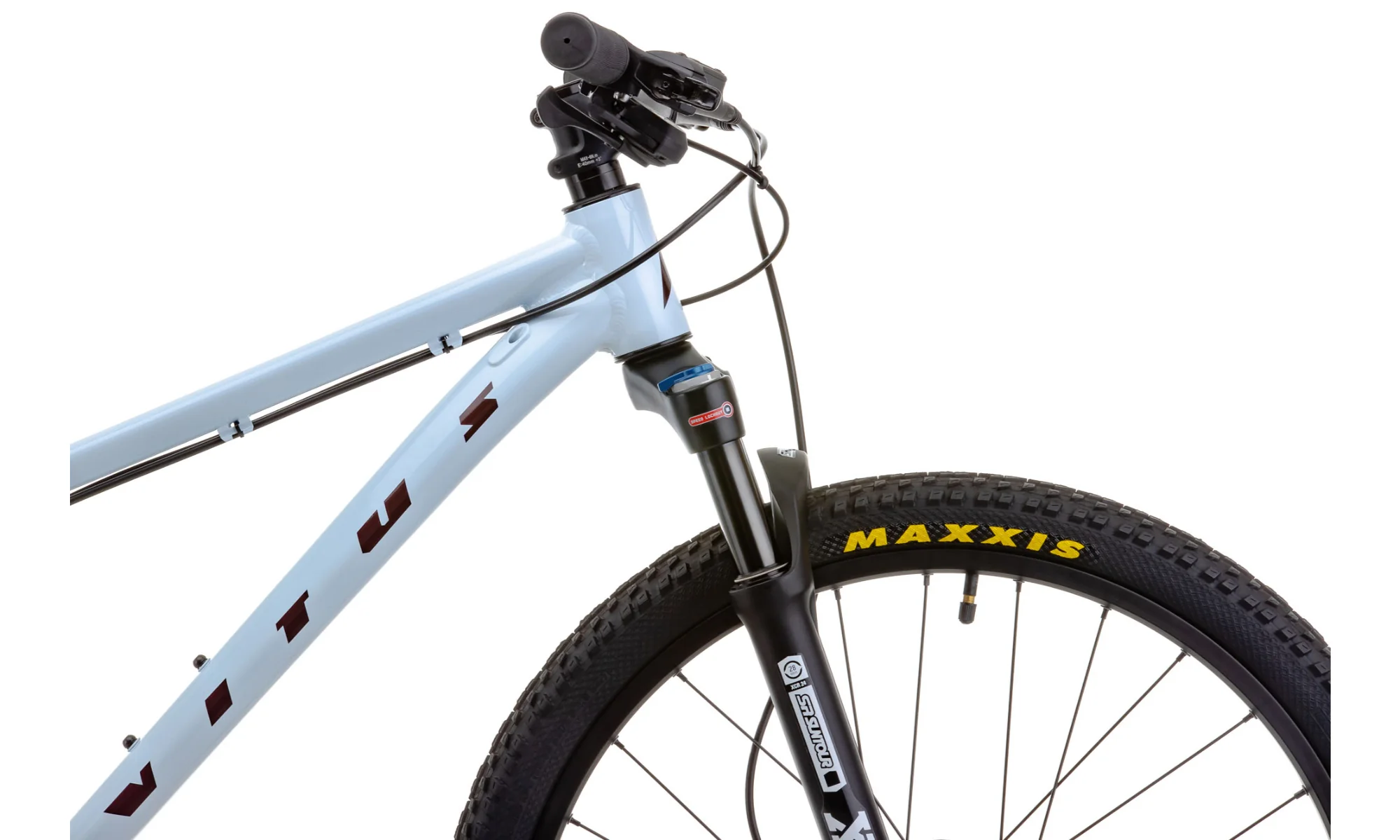

Quality Maxxis Snyper Tyres

Junior Hardtail Based on the award winning adult Nucleus hardtail

Frame Material 6061-T6 Aluminium

Suspension Travel (MTB Only) 60mm Fork

Wheel Size 24"

Available Size One Size

Colour Velocity Blue or Oryx Grey

Weight: 12kg

Specifications

FRAMENucleus Aluminium - 24" Wheel BSA threaded BB, IS disc brake mounts, 135mm x 9mm QR Axle	REAR HUB Vitus KT K08R, 28 Hole, 6 bolt, 135mm x 9mm QR, 8/9/10 Speed HG Freehub

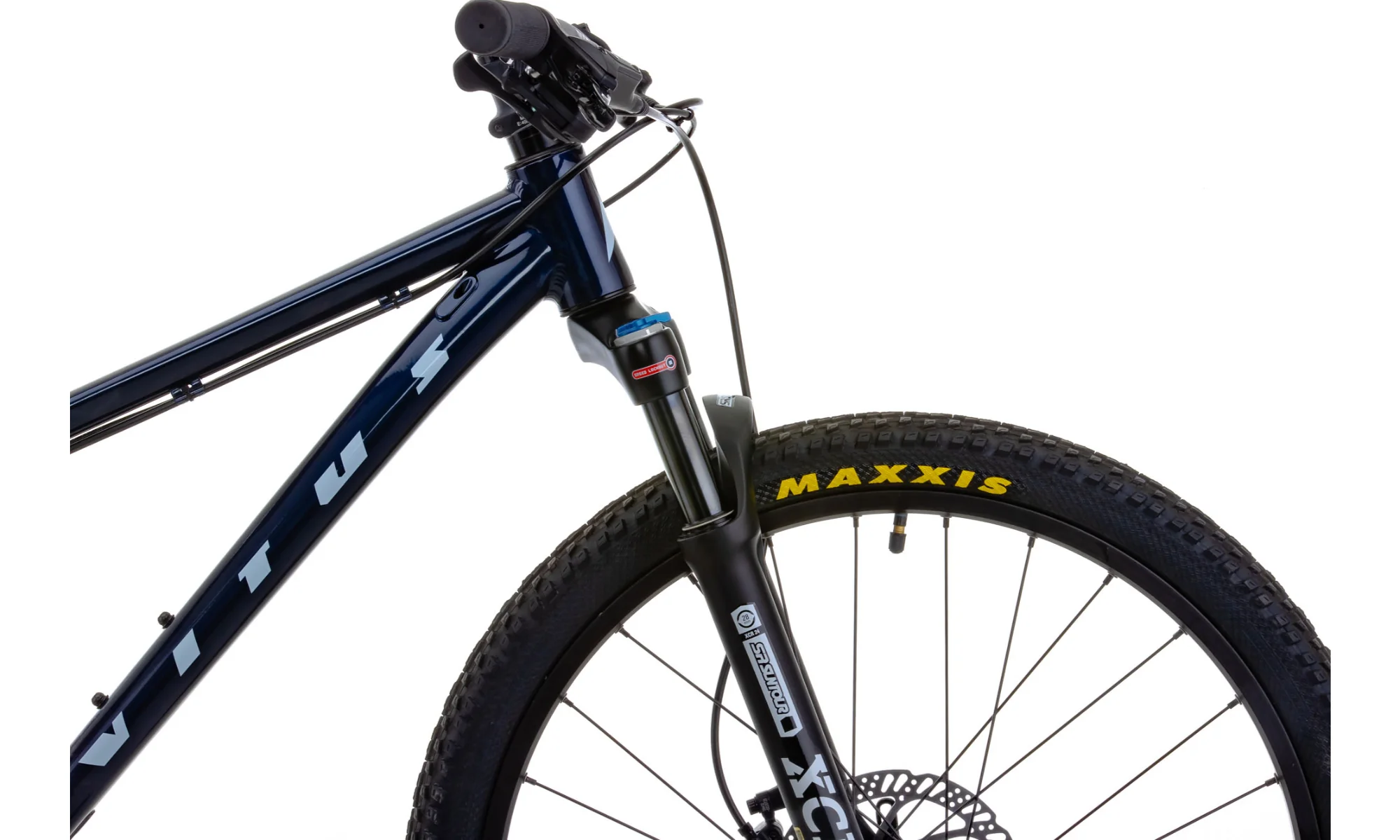

FORKSSuntour XCR-DS-LO Air Forks 60mm travel, IS Mount, 100mm x 9mm QR Axle, Lock-Out, 1 1/8" Steerer	WHEELSETVitus 24", 6-Bolt Disc Brake, HG Freehub, 100mm x 9mm QR Front, 135mm x 9mm QR Rear
SHOCKN/A N/A	FRONT TYREMaxxis Snyper 24” x 2.0”
CHAINSETSamox 140mm Crank Arm, 30T, Double Chain Guard, Reduced Q Factor	REAR TYREMaxxis Snyper 24” x 2.0”
BOTTOM BRACKETCartridge Square Taper BSA Threaded, 68mm Shell, English Thread, 113.5mm Axle Length	BRAKESTektro HD-M276 or Clarks M2 Disc Brake Hydraulic, Reach Adjust
FRONT DERAILLEURN/A N/A	BRAKE ROTORSTektro TR160 or Clarks M2 Front: 160mm, Rear: 160mm

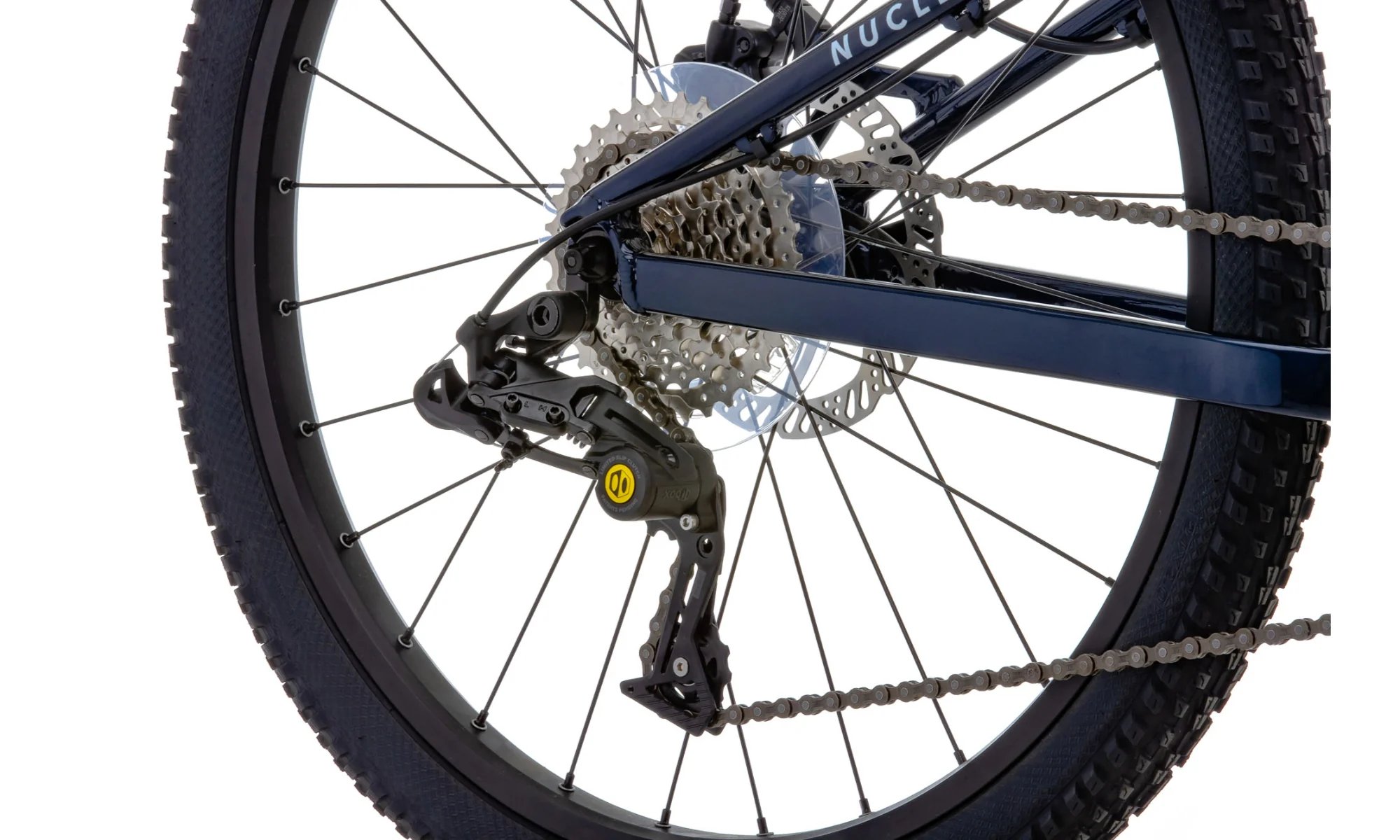

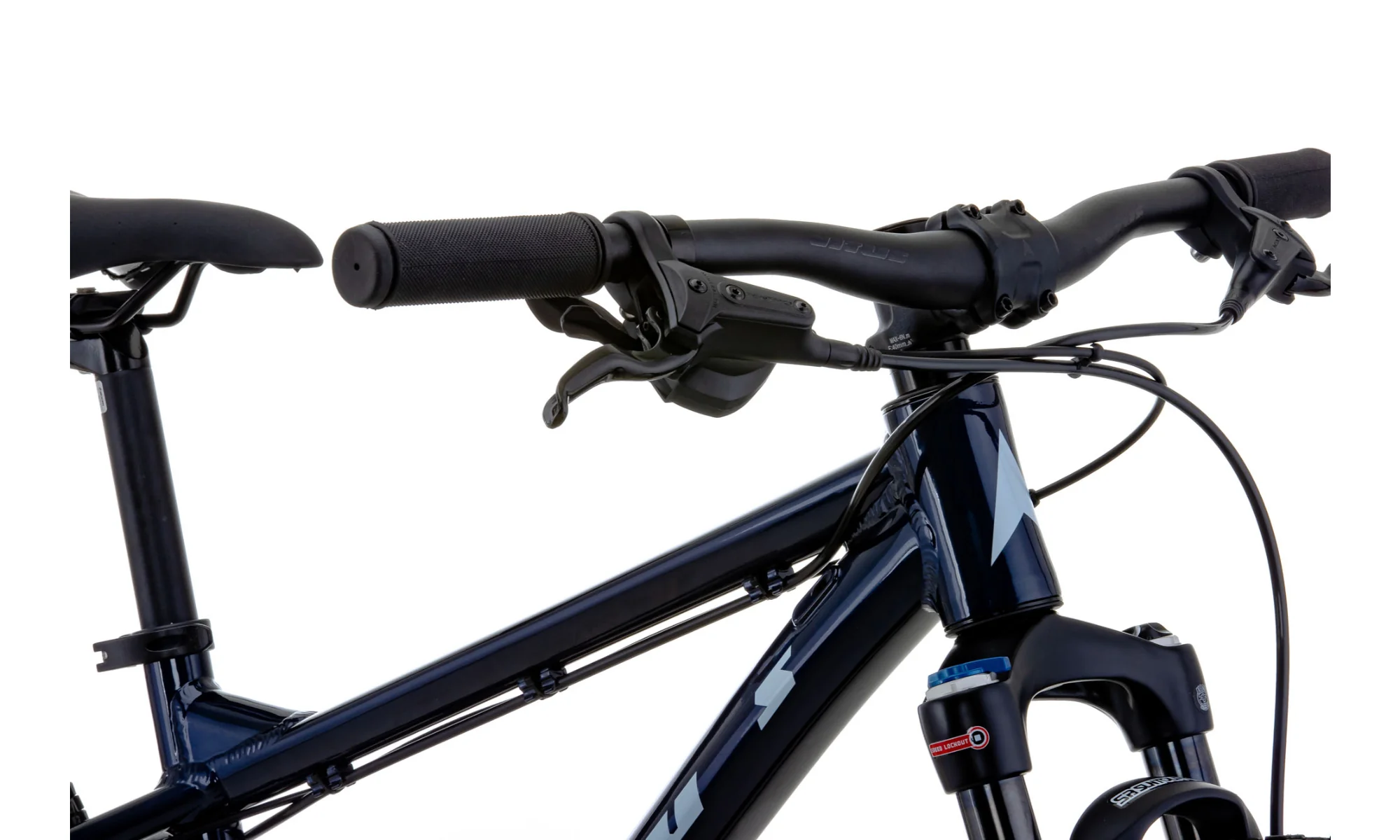

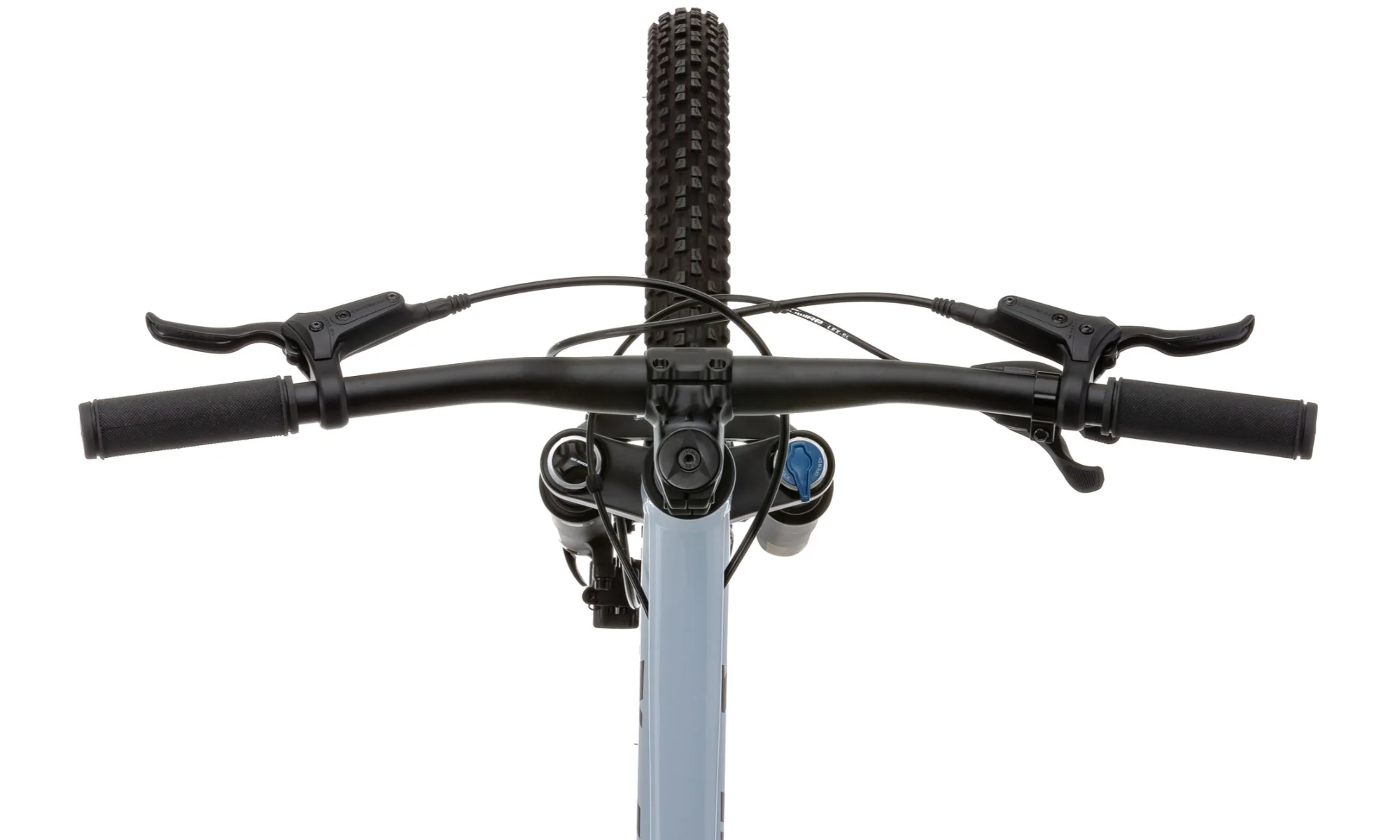

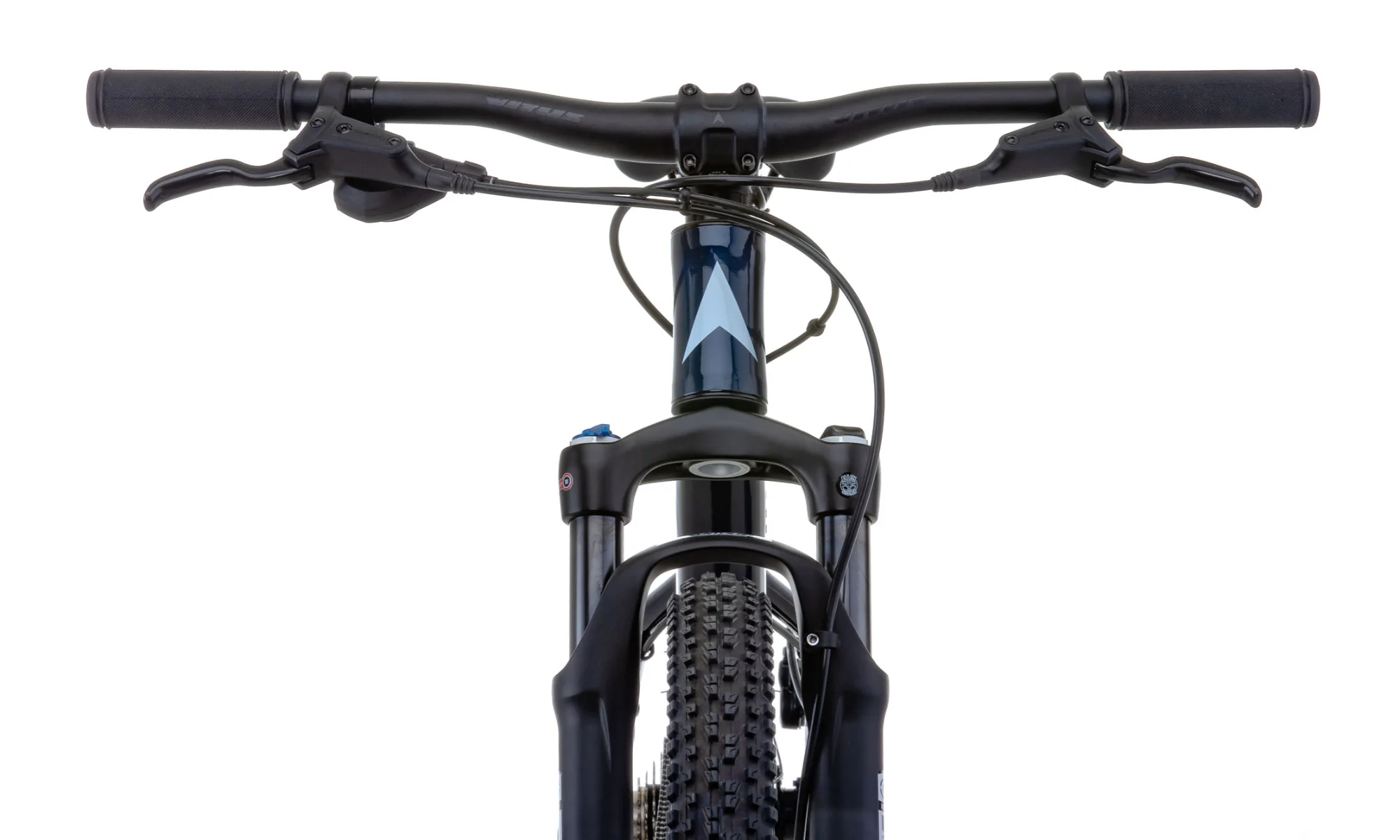

REAR DERAILLEURBox Four 8 8 Speed w/ Clutch	HANDLEBARSVitus 6061 Aluminium 15mm Rise, 9° Back Sweep, 620mm Wide
SHIFTERSBox Four 8 8 Speed	STEMVitus 6061 Aluminium 40mm Length, +/- 3°
CASSETTESunrace CSM66 11-34T, 8 Speed	HEADSETNeco No:11G Semi-Cartridge, 1.5mm Top Cover, Height 9.8mm
CHAINBox Four 8 8 Speed	GRIPSVitus 110mm, Closed End

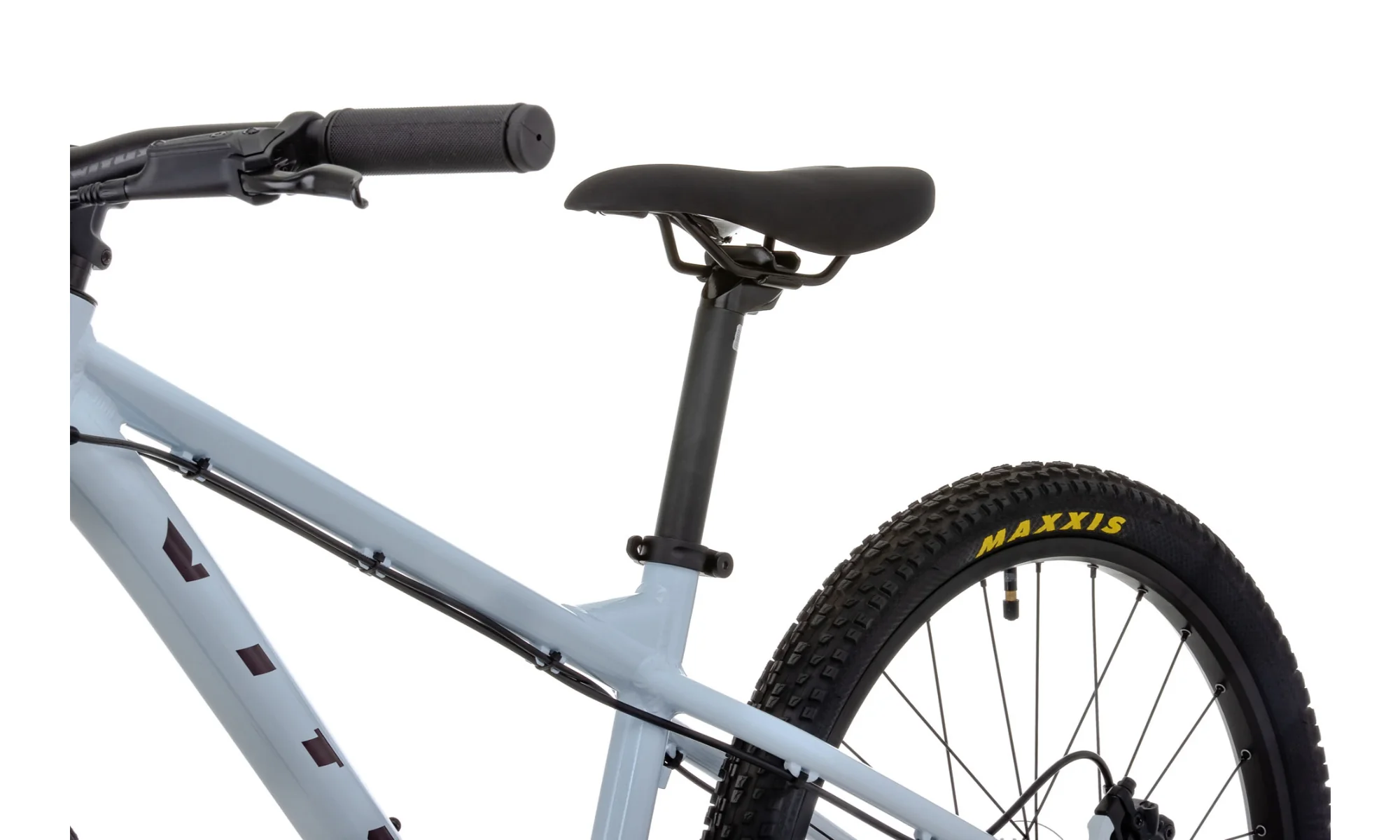

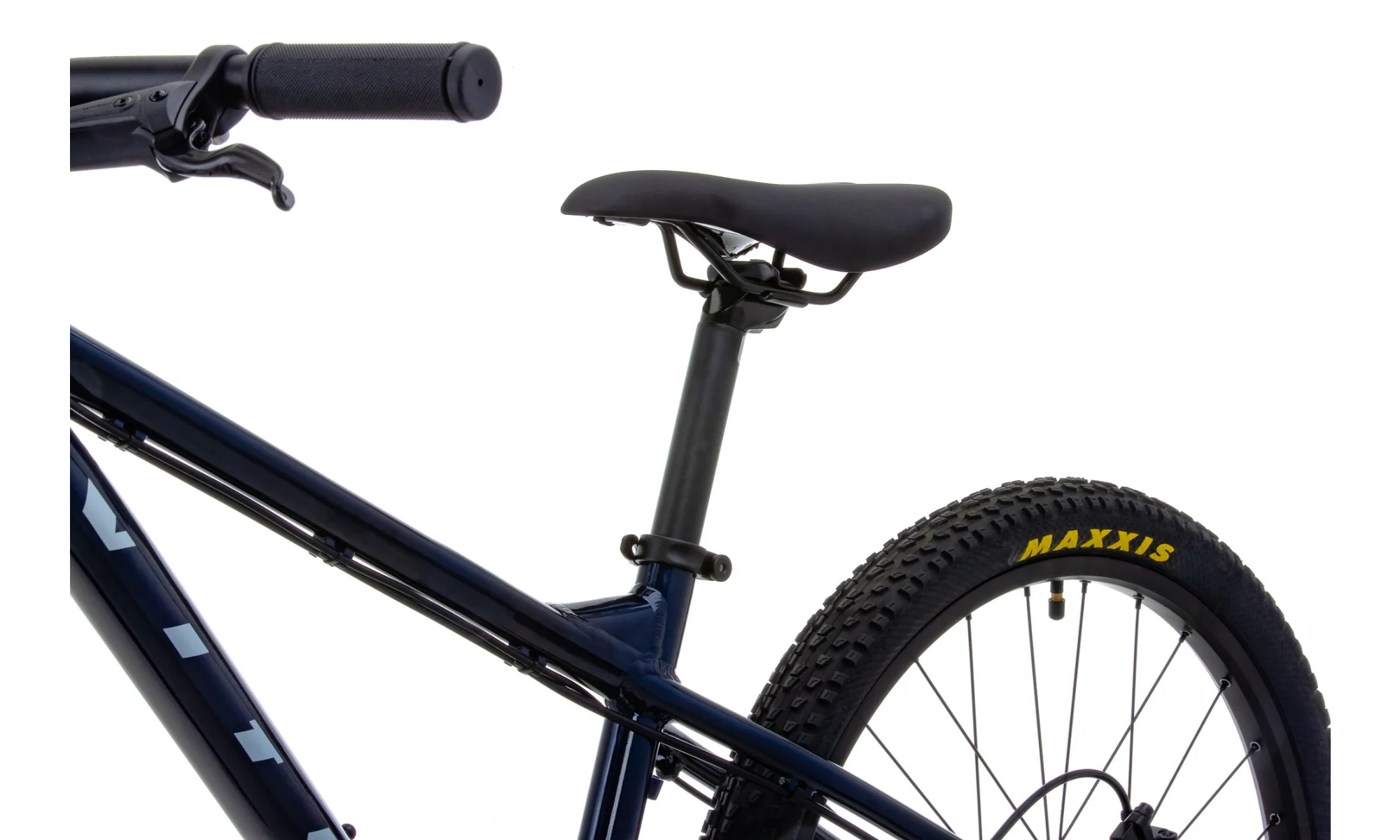

FRONT RIMVitus Shining BX-32, 24", 28 Hole, Double Wall, Eyelets, Disc Specific	SADDLEVitus Kids Specific, Steel Rail
REAR RIMVitus Shining BX-32, 24", 28 Hole, Double Wall, Eyelets, Disc Specific	SEATPOSTVitus 6061 Aluminium 27.2mm x 250mm, 20mm Offset
FRONT HUBVitus KT K08F, 28 Hole, 6 Bolt, 100mm x 9mm QR	SEATCLAMPAluminium 31.8mm Stainless Steel Bolt
