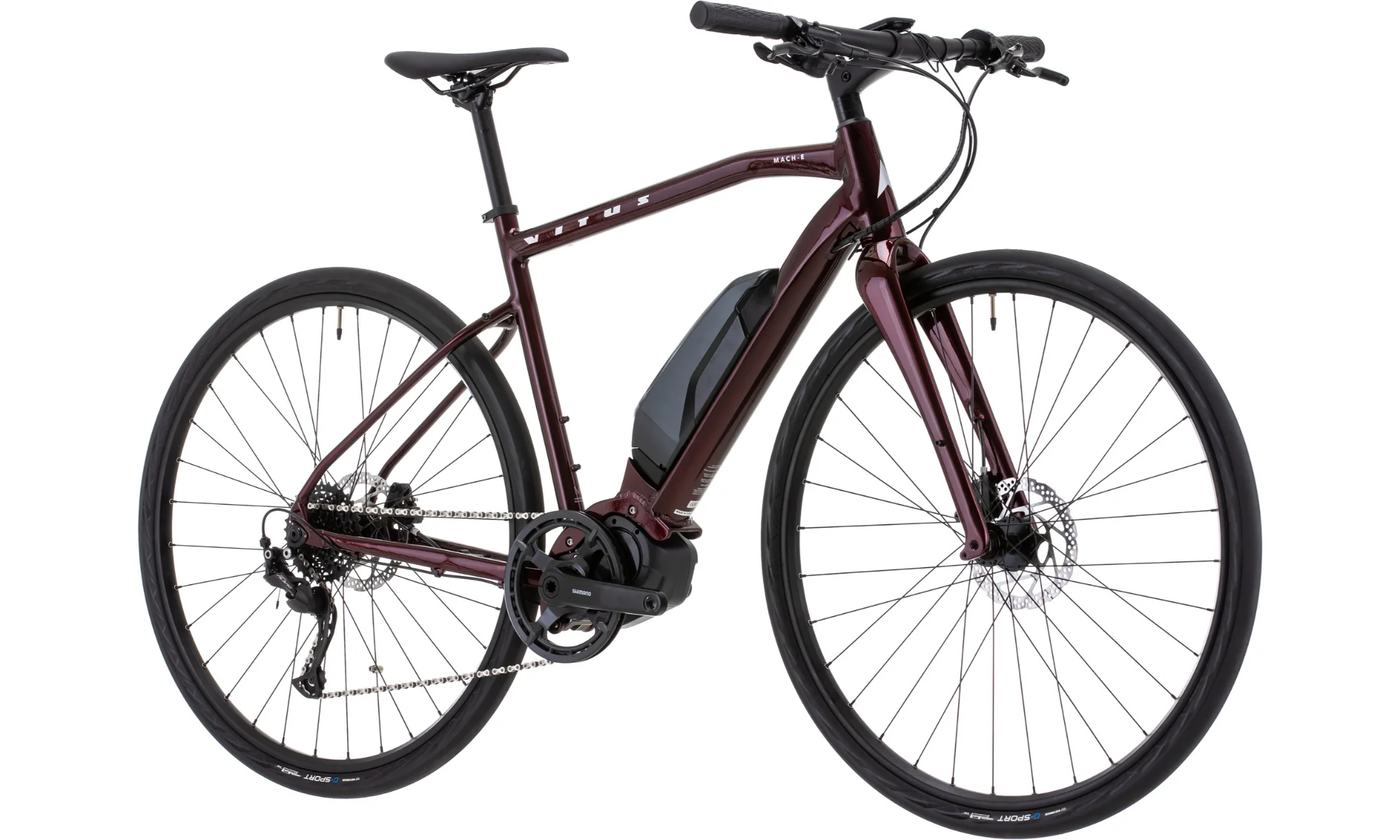

Vitus Mach-E Urban E Bike (2022)

Based around the proven styling of the Mach-3 this e-bike version of the classic Vitus hybrid retains that reassuringly sporty feel with the added assistance of Shimano’s industry-leading E6100 STEPS power system. Prioritising stress-free riding and comfort, the Mach-E makes life on two-wheels easy and fun.

Whether riding to town, to the office or cruising on weekend adventures this bike takes the sting out of the hills and enables you to go about everyday errands without breaking a sweat. Under the hood, the STEPS drive unit lets you select between ECO, Normal or High mode, depending on how much assistance you require, with all ride stats and controls available at your fingertips from the handlebar-mounted computer unit. The performance is underpinned by a classy lightweight aluminium frame that features a carbon fork and striking kinked top tube, designed to reduce the stepover height for when you might want to leave the activewear at home and ride out in regular clothes.

We’ve purposefully selected quality, reliable components, including the latest one-piece stem and handlebar with comfortable ergo-grips, to keep weight down so the bike is low maintenance and sleek. Large volume, comfortable tyres are the perfect all-round choice for cycle paths, country roads or wide forest trails, and with mudguard points, internal cable-routing and pannier mounts the Mach-E is a great option for year-round riding and easy-going touring.

Journeys by bike are refreshing, invigorating, more enjoyable and more fun, and with the comfortable and accessible styling of the Mach-E you can do more of them with ease.

Shimano STEPS E6100 motor

Eco, Trail or Boost power modes

Shimano STEPS E8010 504Wh battery

Shimano Alivio 9 speed gearing

Vee G-Sport 700c x 35mm tyres

Shimano hydraulic disc brakes

Shimano STEPS E6100 powered hybrid Sporty looks and electric assistance

Frame Material 6061 T-6 Double Butted Aluminium

Suspension Travel (MTB Only) N/A

Wheel Size 700c

Available Size XS, S, M, L

Colour Black Cherry

Weight: Medium: 17.2kg

Specifications

FRAMEMach E Aluminium 6061-T6 Double Butted Aluminium, Shimano STEPS 6100 Motor Mount, Internal Cable Routing, 12mmx142mm Hub Spacing, Flat Mount, Mud Guard Mounts, Rack Mounts, Axle Specifications: 161mm Length, 12mm Thread Length, M12xP1.5 Thread Pitch	REAR RIMVitus Shining DB-21, 700c, 32 Hole
FORKSMach 3 Carbon UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts	FRONT HUBVitus KT MSCF , 6-Bolt Disc Brake, 100 x 12mm
SHOCKN/A N/A	REAR HUB Vitus KT SNCR, 6-Bolt Disc Brake, 142 x 12mm
CHAINSETShimano STEPS E6100 FC-E6100 + SM-CRE61, 44T, 170mm Crank Arm	WHEELSETVitus Shining Rims on Vitus KT Hubs 700c, 32 Hole, 6-Bolt Disc Brake, 100 x 12mm Front, 142 x 12mm Rear, Stainless Steel Spokes
BOTTOM BRACKETN/A N/A	FRONT TYREVee Tire Co. G-Sport 700 x 35c
FRONT DERAILLEURN/A N/A	REAR TYREVee Tire Co. G-Sport 700 x 35c
REAR DERAILLEURShimano Alivio RD-M3100, 9 Speed	BRAKESShimano UR300 Hydraulic Disc BL-MT201 & BR-UR300, Flat Mount
SHIFTERSShimano Alivio Rapidfire Plus SL-M4000, 9 Speed, Optical Gear Display	BRAKE ROTORSShimano RT56 Front: 160mm, Rear: 160mm
CASSETTESunrace M90 11-34T, 9 Speed	HANDLEBARSVitus Integrated Flat Bar & Stem 6061 Aluminium, 4 Degree Rise, 9 Degree Sweep, XXS: 640mm, XS: 640mm, S: 640mm, M: 680mm, L: 680mm, XL: 680mm
CHAINKMC e9 Sport 9 Speed, E-Bike Specific	STEMVitus Integrated Flat Bar & Stem 6061 Aluminium, Bar Bore 31.8mm, +/- 15 Degree,
MOTOR BATTERYShimano STEPS E8010 504Wh BT-E8010, 504Wh	HEADSETACROS Aix-Low R3 Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
MOTOR COMPUTERShimano STEPS E6100 SC-E6100	GRIPSVitus Ergo Grips Anti Slip, Ergonomic Shape, Integrated Lock Ring
MOTOR SHIFTERShimano STEPS E6010 Mode Switch SW-E6010-L	SADDLEVitus Steel Rail
MOTOR DRIVE UNITShimano STEPS E6100 DU-E6100 Mid Position Motor	SEATPOSTVitus 6061 Aluminium 27.2mm x 400mm
FRONT RIMVitus Shining DB-21, 700c, 32 Hole	SEATCLAMPAluminium 31.8mm Stainless Steel Bolt
