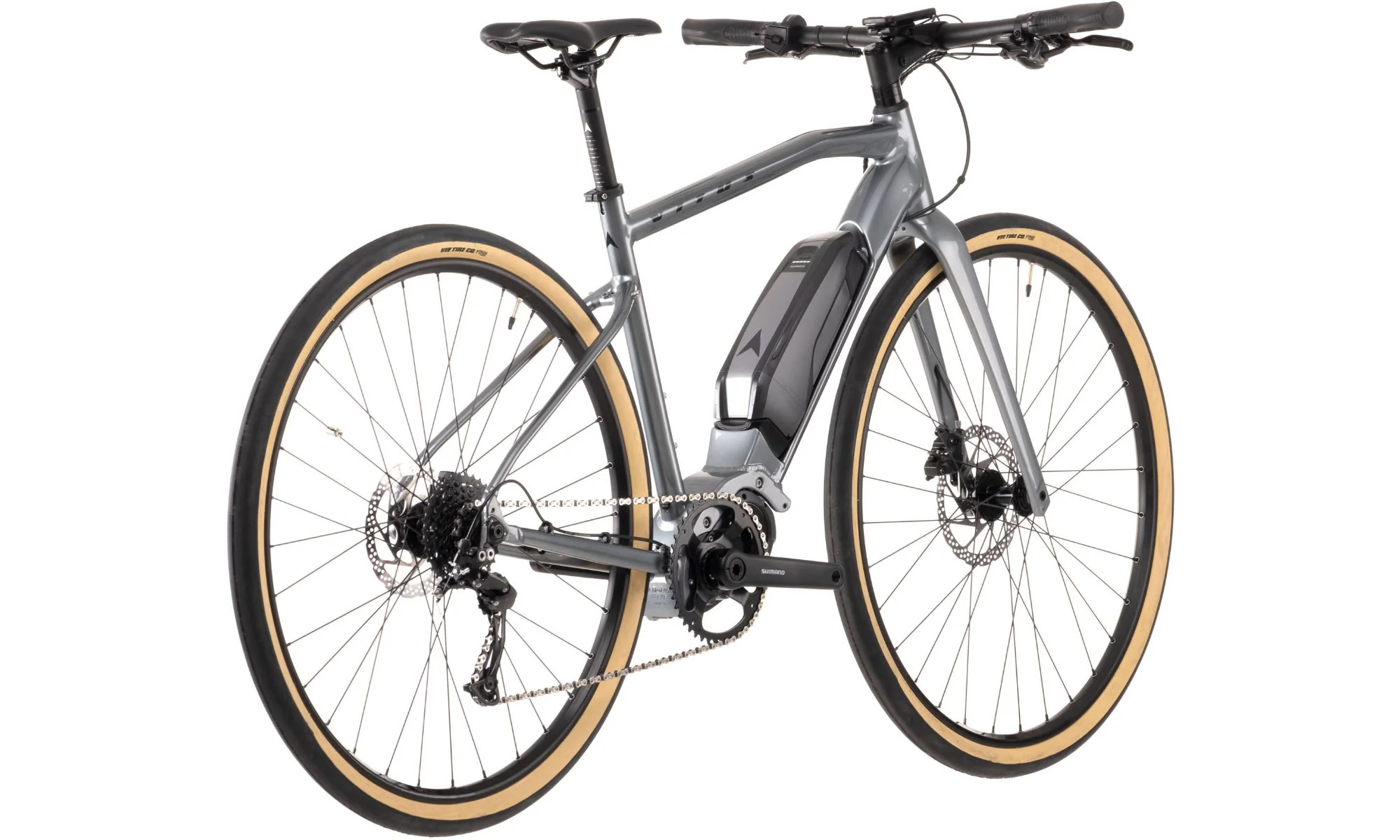

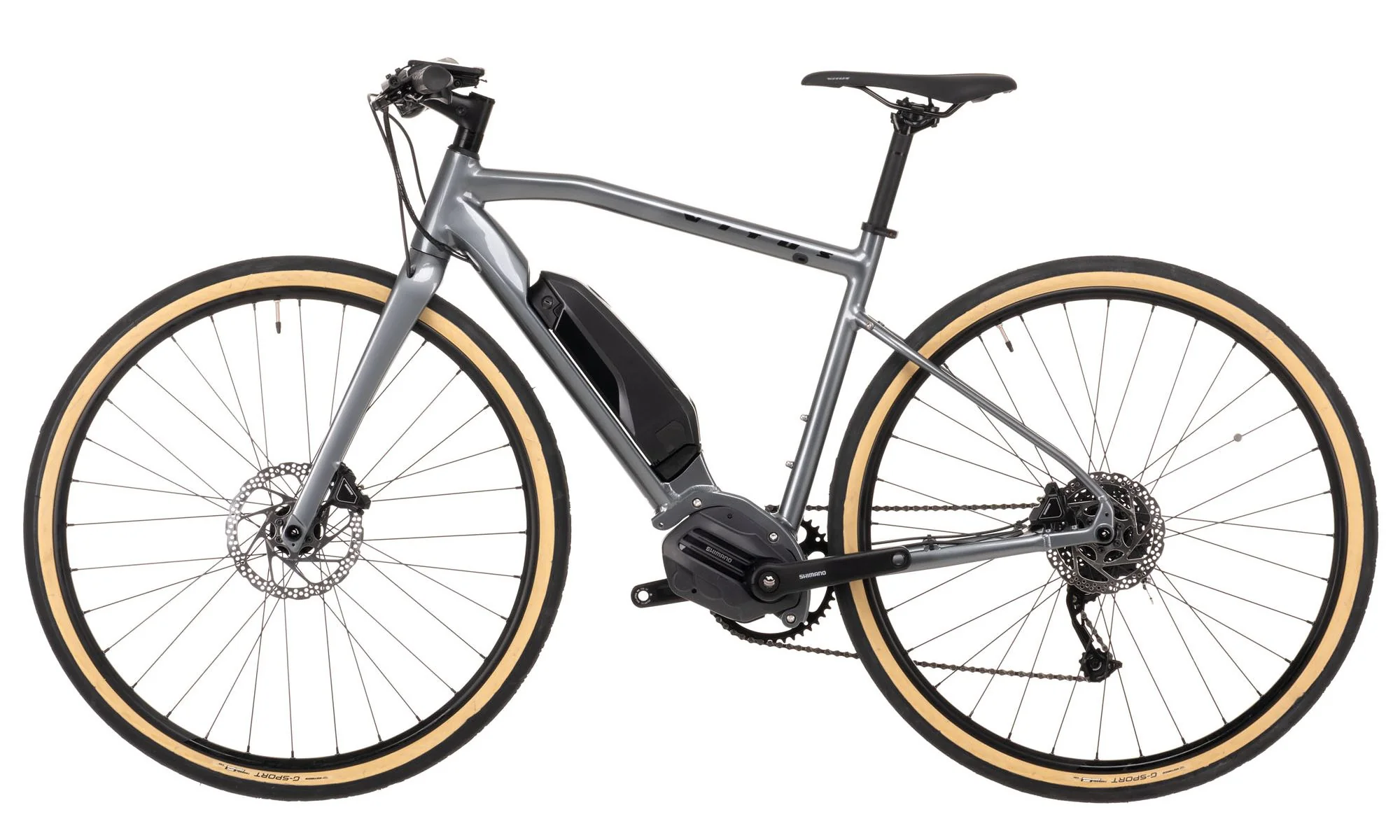

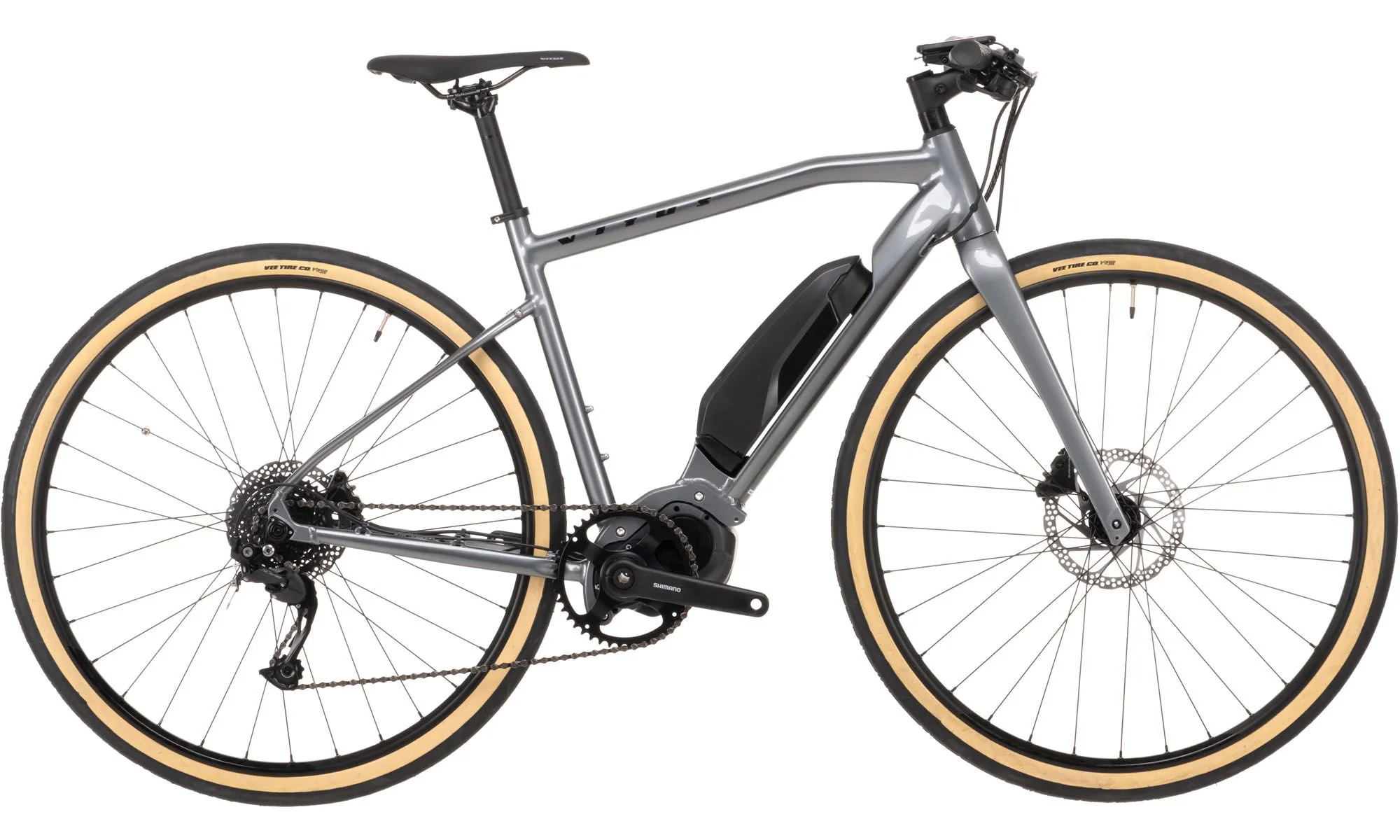

Vitus Mach-E Urban E Bike (2021)

The Mach E is a flat handlebar 700c wheel electric bike, capable of challenging your fitness, or navigating the urban jungle, with a little help along the way.

The sleek looking, modern aluminium frame based around it’s non electric sibling, uses lightweight 6061 T6 double butted aluminium, providing guaranteed comfort and versatility. Whether you ride the Mach 3 VRX around your local forest loop at the weekend or load it up with panniers for your regular commute to work, this bike delivers. The geometry supports a more upright, comfortable and accessible riding position, but remains ‘sporty’.

Built with the industry leading Shimano STEPS E6100 e-bike system, delivering a fully enhanced riding experience. The powerful lightweight motor (only 2.8kg) is designed for smooth, intelligent pedalling support that’s simple to use. Combined with the higher capacity E8010 MTB battery delivering 504 Wh, you get a sleek integrated look and supported travel of up to 100km on a single charge.

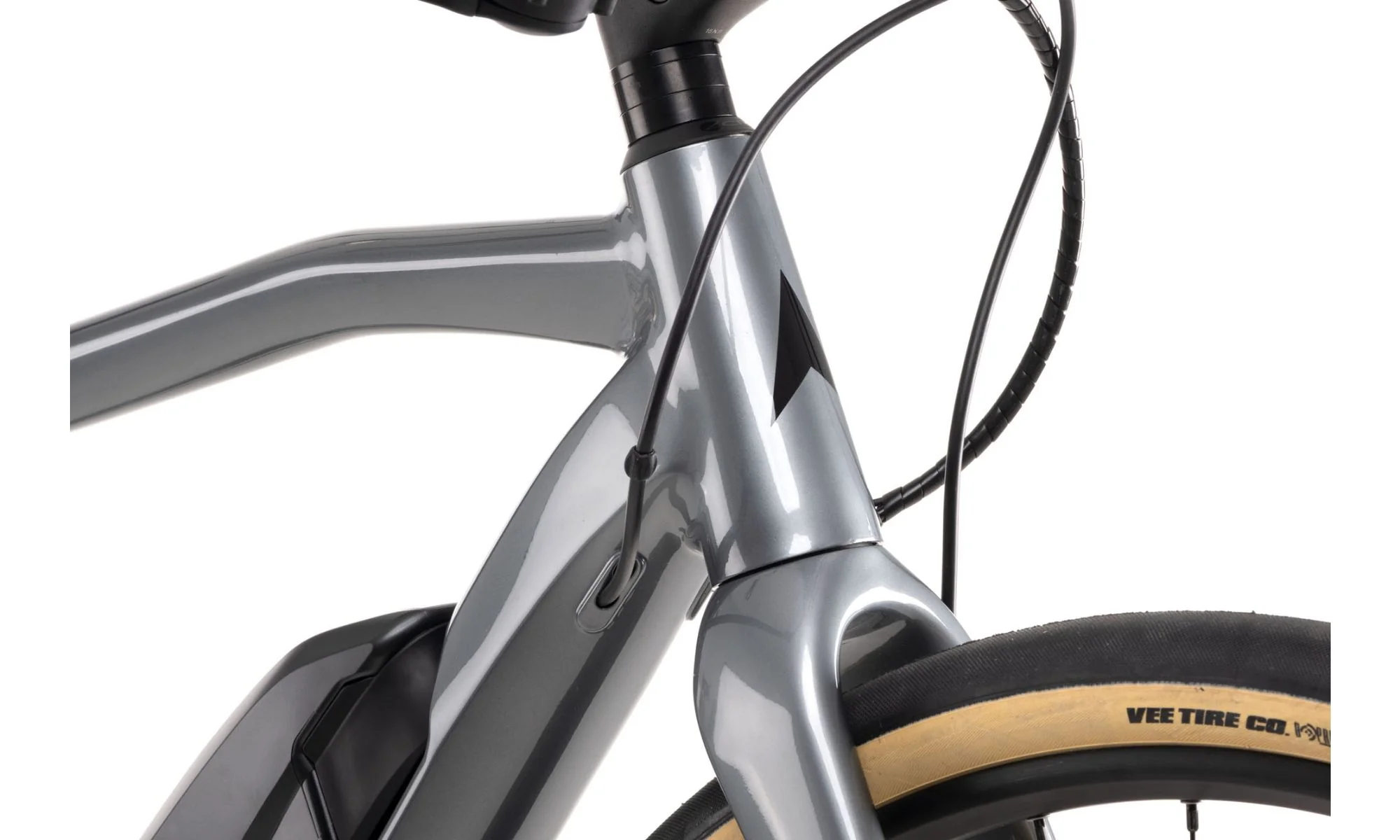

A full carbon fork with tapered head tube, combined with flat bar specific stem lengths and geometry, result in confidence inspiring steering. With integrated cable routing, this bike keeps everything nice and tidy, allowing you to make the most of the bikes rack and mount capabilities. Fit mudguards to keep you dry, and a rear luggage rack to carry anything from your laptop to your shopping.

Shimano STEPS E6100 Motor

Eco, Trail or Boost Power modes

Shimano Alivio 9 speed gearing

Shimano STEPS E8010 504Wh battery

Vee G-Sport 700c x 38mm tyres

Shimano hydraulic disc brakes

Shimano STEPS E6100 powered hybrid Sporty looks and electric assistance

Frame Material T6061 T-6 Double Butted Aluminium

Suspension Travel (MTB Only) N/A

Wheel Size 700c

Available Size S, M, L, XL

Colour Anthracite

Weight: Medium: 17.32kg

Specifications

FRAMEMach E Aluminium 6061-T6 Double Butted Aluminium, Shimano STEPS 6100 Motor Mount, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rack Mounts	REAR RIMVitus Shining DB-21, 700c, 32 Hole,
FORKSMach 3 Carbon UD Carbon, Tpered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts	FRONT HUBVitus KT MSCF, 6-Bolt, Thru-Axle 12 x 100mm, 32 Hole
SHOCKN/A N/A	REAR HUB Vitus KT SNCR, 6-Bolt, Thru-Axle 12 x 142mm, 32 Hole, Shimano HG Freehub
CHAINSETShimano STEPS E6100 FC-E6100 + SM-CRE61, 44T, 170mm Crank Arm	SPOKESN/A 14mm Nipple
BOTTOM BRACKETN/A N/A	FRONT TYREVee G-Sport 700c x 38, MPC, B-Proof
FRONT DERAILLEURN/A N/A	REAR TYREVee G-Sport 700c x 38, MPC, B-Proof

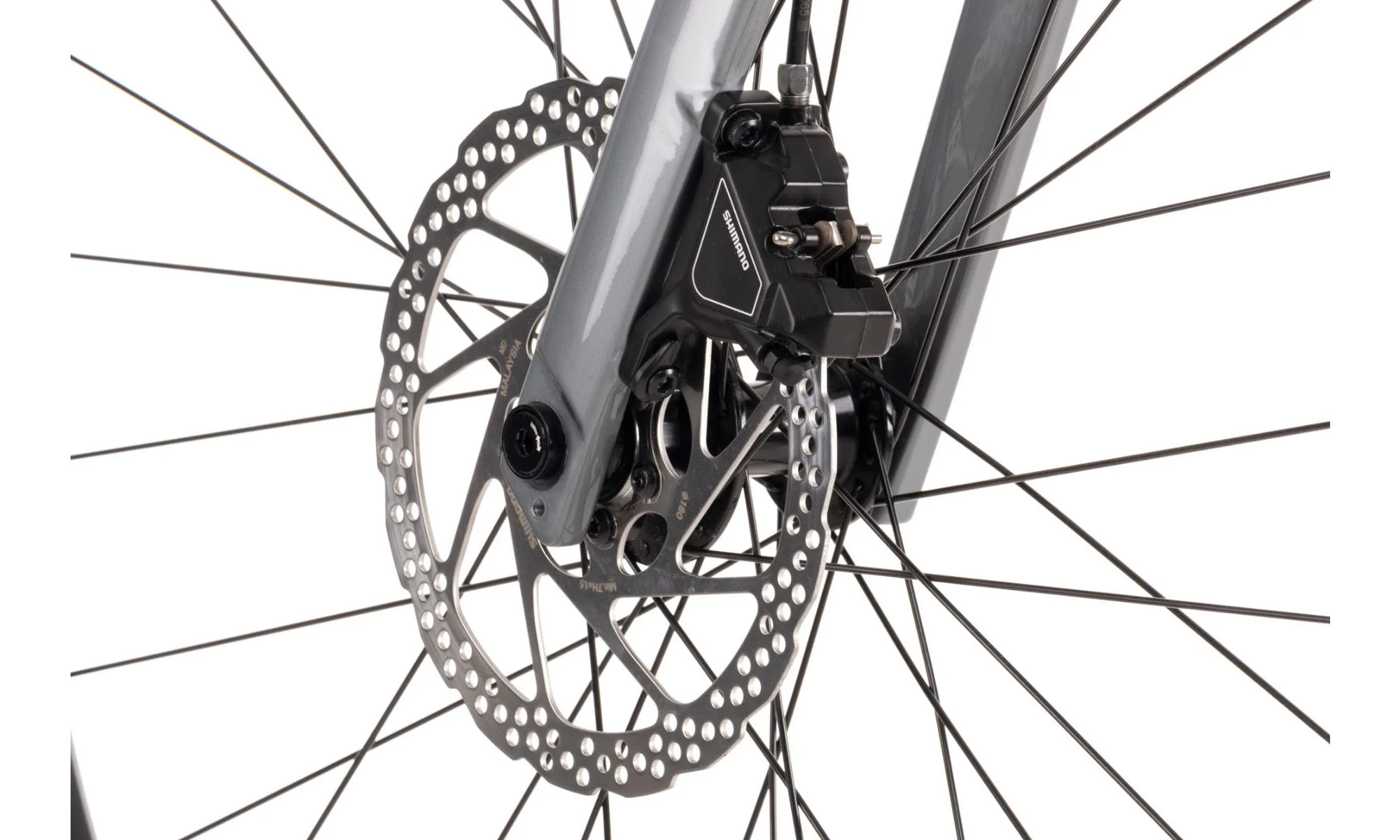

REAR DERAILLEURShimano Alivio RD-M3100, 9 Speed	BRAKESShimano UR300 Hydraulic Disc BL-MT201-R/L & BR-UR300-F/R, Flat Mount
SHIFTERSShimano Alivio Rapidfire Plus SL-M4000, 9 Speed, Optical Gear Display	BRAKE ROTORSShimano RT56 Front:160mm, Rear:160mm

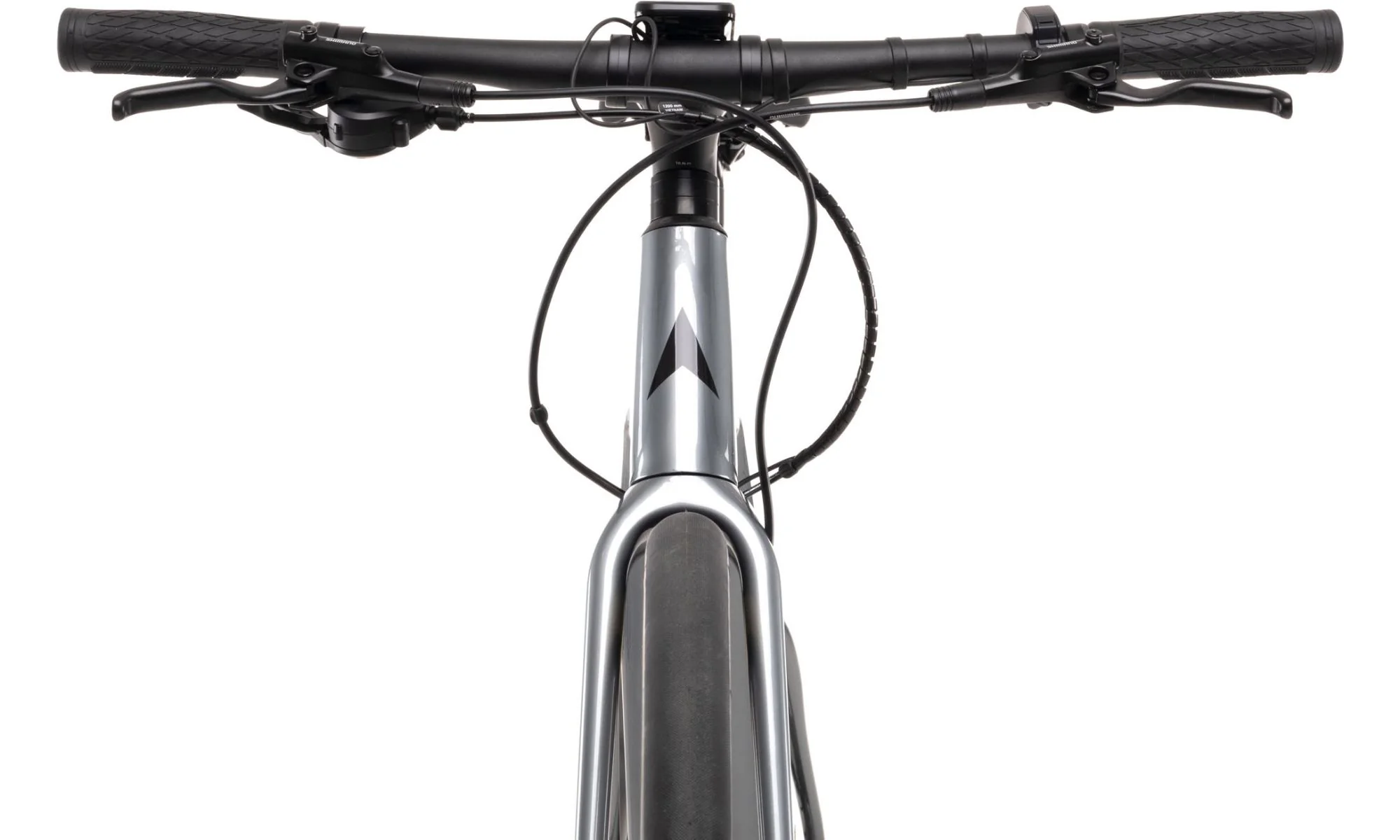

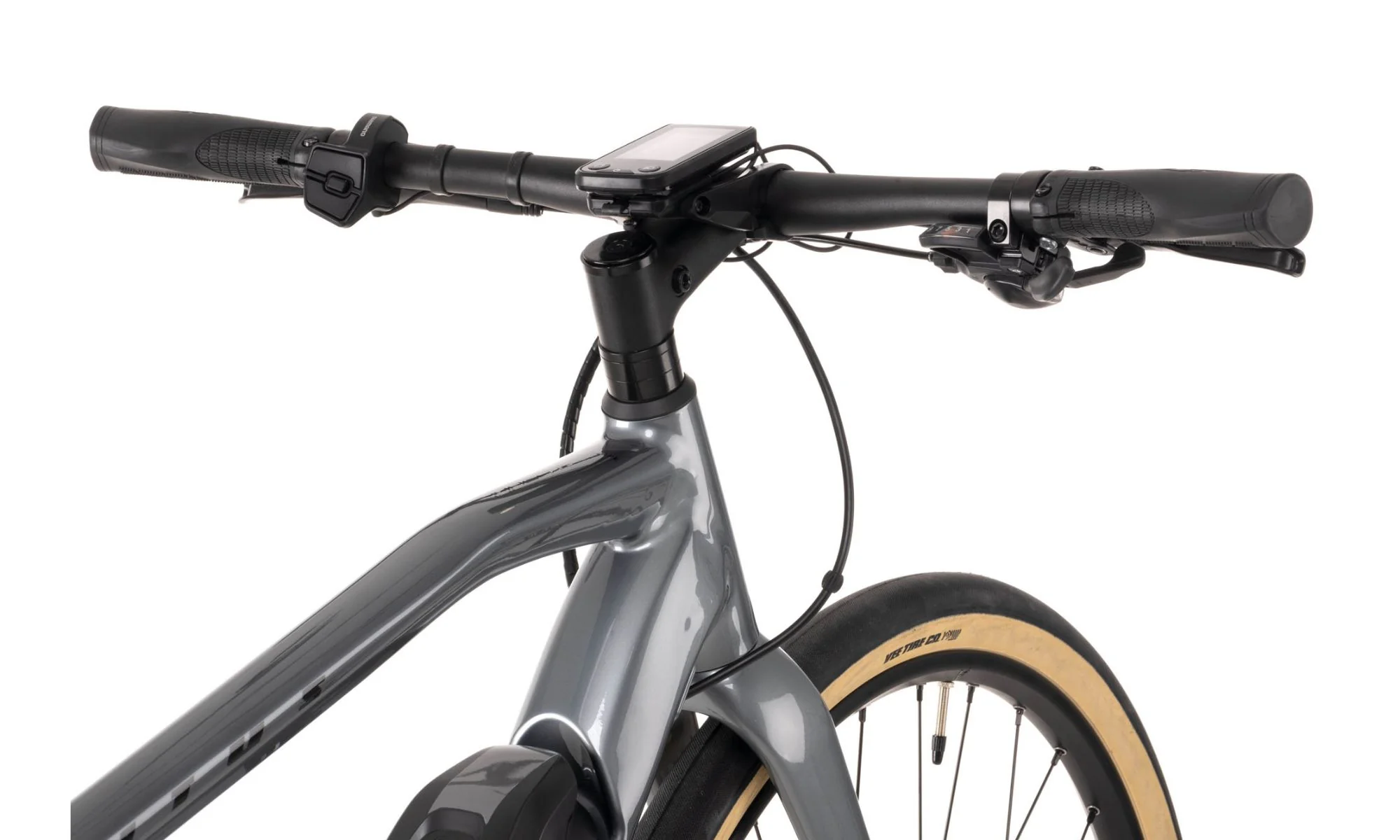

CASSETTESunrace M90 CS-M9-, 11-34T	HANDLEBARSVitus Integrated Flat Bar / Stem 6061 Aluminium, 4 Degree Rise, 9 Degree Sweep, S:640mm M:640mm L:680mm XL:680mm
CHAINKMC e9 Sport 9 Speed, E-Bike Specific	STEMVitus Integrated Flat Bar / Stem 6061 Aluminium, S:80mm M:90mm L:100mm XL:110mm
MOTOR BATTERYShimano STEPS E8010 504Wh BT-E8010, 504Wh	HEADSETACROS Aix-Low R3 Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40

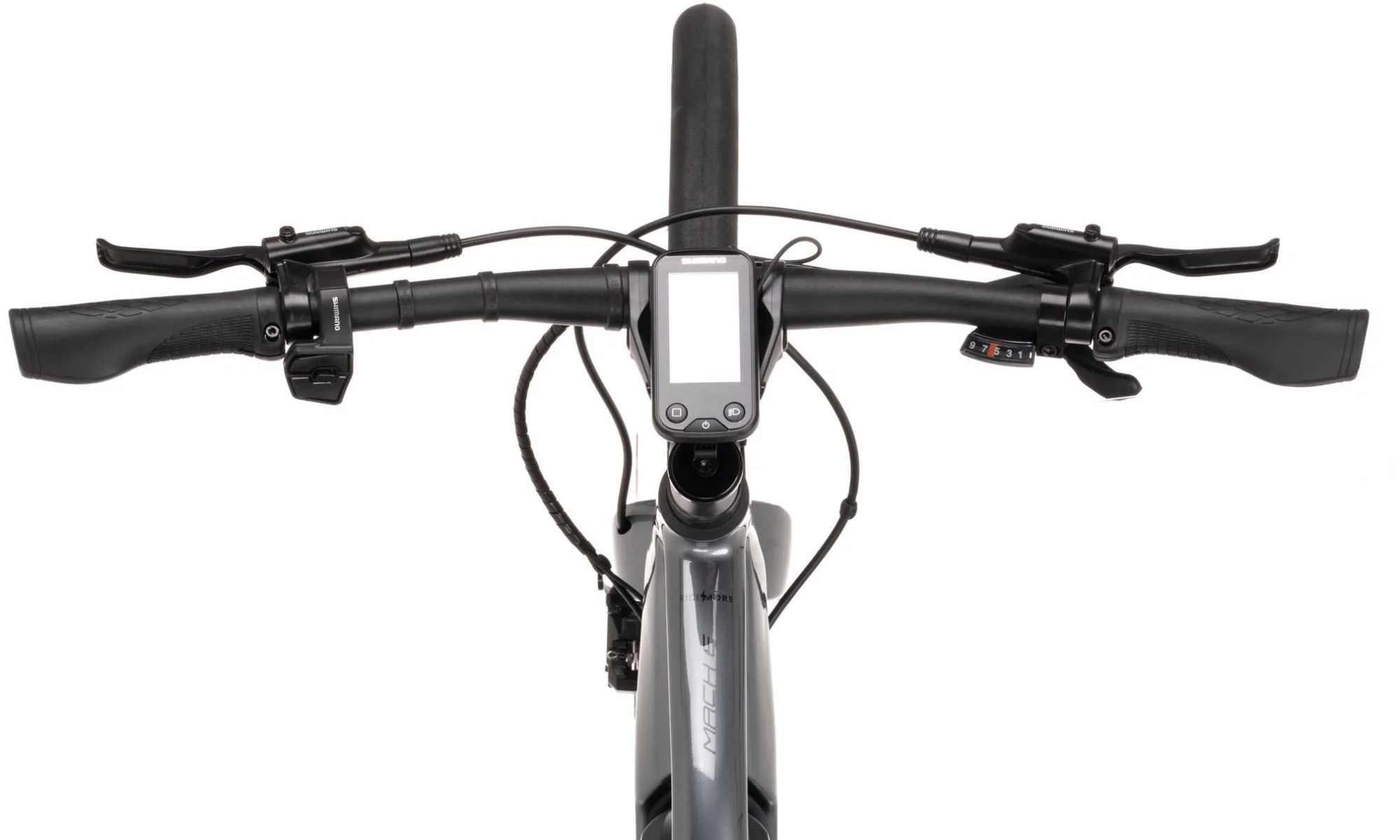

MOTOR COMPUTERShimano STEPS E6100 SC-E6100	GRIPSVitus Ergo Anti Slip, Ergonomic Shape, Integrated Lock Ring
MOTOR SHIFTERShimano STEPS E6010 Mode Switch SW-E6010-L	SADDLEVITUS Steel Rail

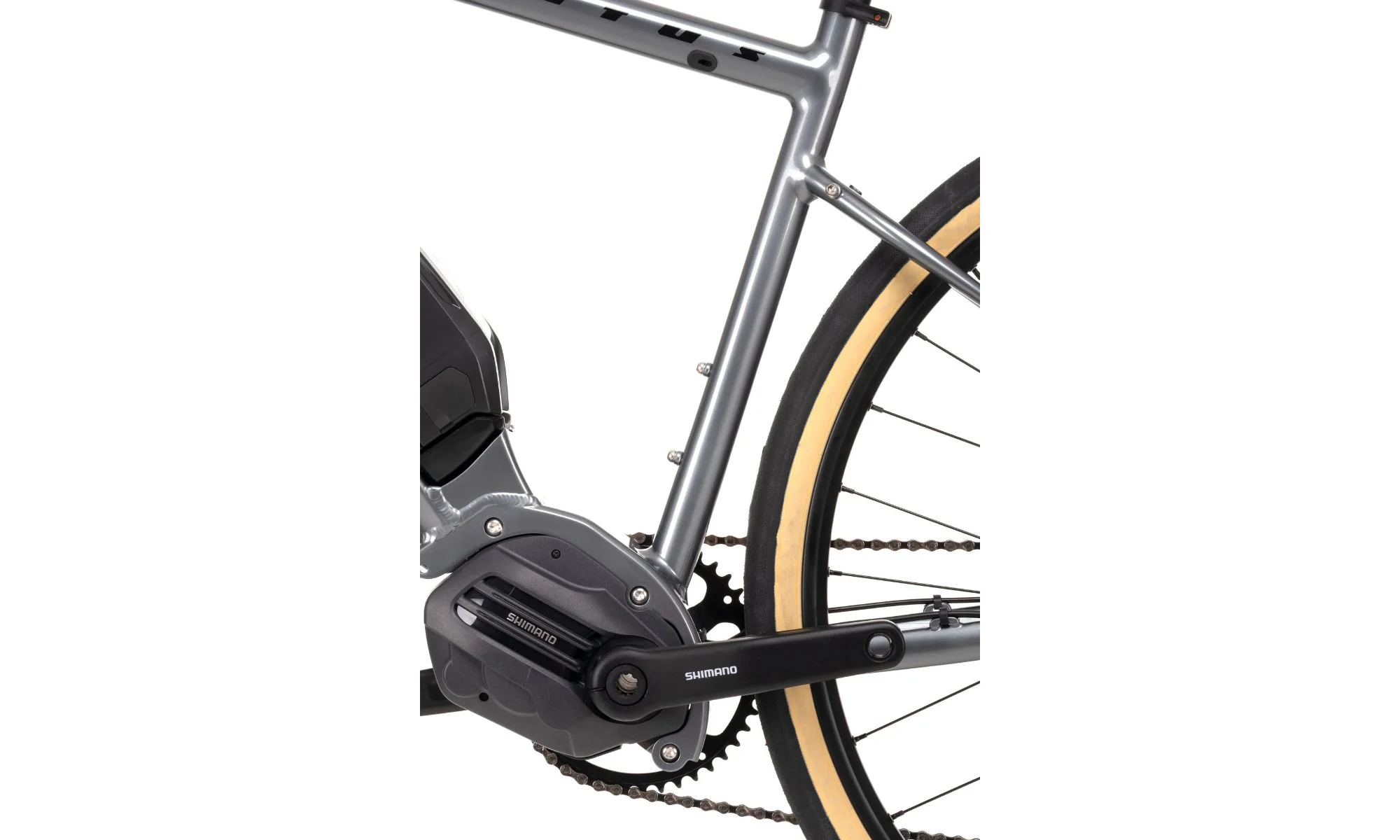

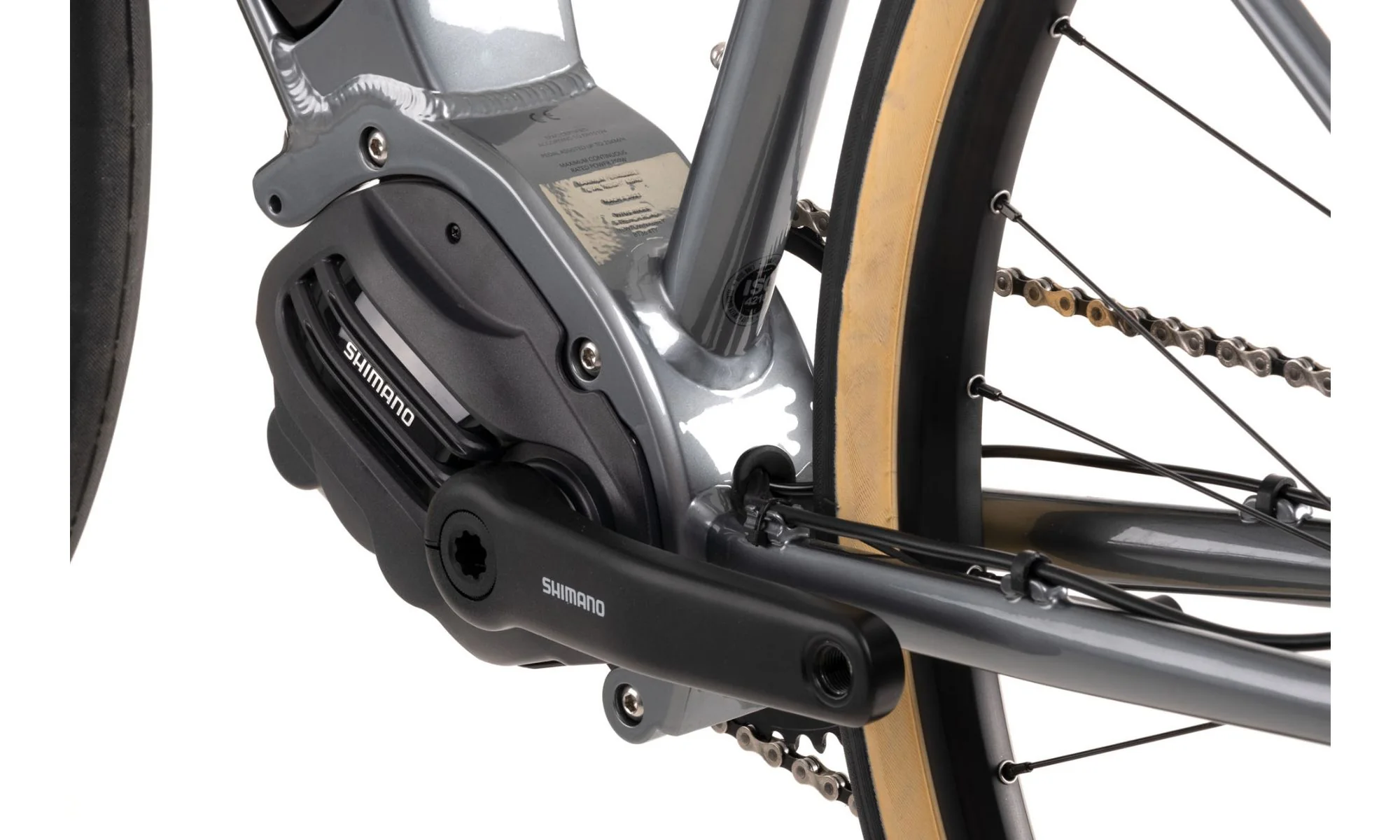

MOTOR DRIVE UNITShimano STEPS E6100 DU-E6100 Mid Position Motor	SEATPOSTVITUS Aluminium 27.2mm, 12mm Offset, 350mm
FRONT RIMVitus Shining DB-21, 700c, 32 Hole,	SEATCLAMPAluminium 31.8, Stainless Steel Bolt
