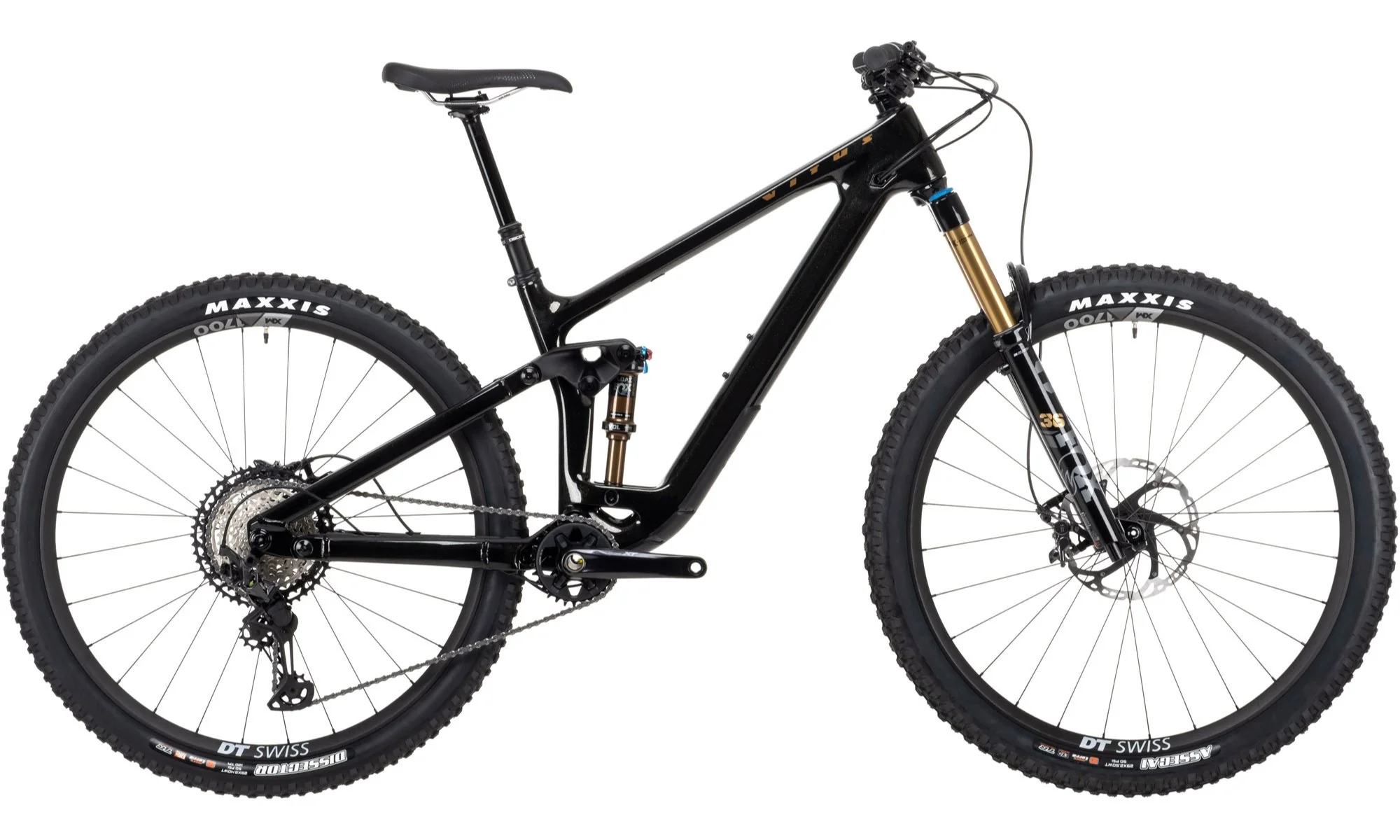

Vitus Escarpe 29 CRX Mountain Bike (2021)

The All New Escarpe - We've taken everything we loved about our Escarpe platform and made it better. Quick up the hills and even quicker going back down. A true confidence inspiring all mountain trail bike.

Our all new Escarpe features a redesigned carbon front triangle paired with an aluminium rear end. With revamped geometry and improved suspension kinematics to ensure the Escarpe climbs efficiently on the way up and descends with playful confidence on the way back down, our all new Escarpe will take your riding to the next level. We straightened the leverage curve and increased the progressivity to improve the small bump sensitivity, mid stroke support to keep you in control when the trails get rough. Along with improved geometry the new Escarpe also has improved seat post insertion which allows for a longer dropper post to be fitted as standard ensuring you get the most comfortable riding position on the way up and back down. Basically our all new Escarpe is better in every way. If you want a confidence inspiring all mountain bike that can climb as well as a trail bike and descend like an enduro bike, then our Escarpe is for you.

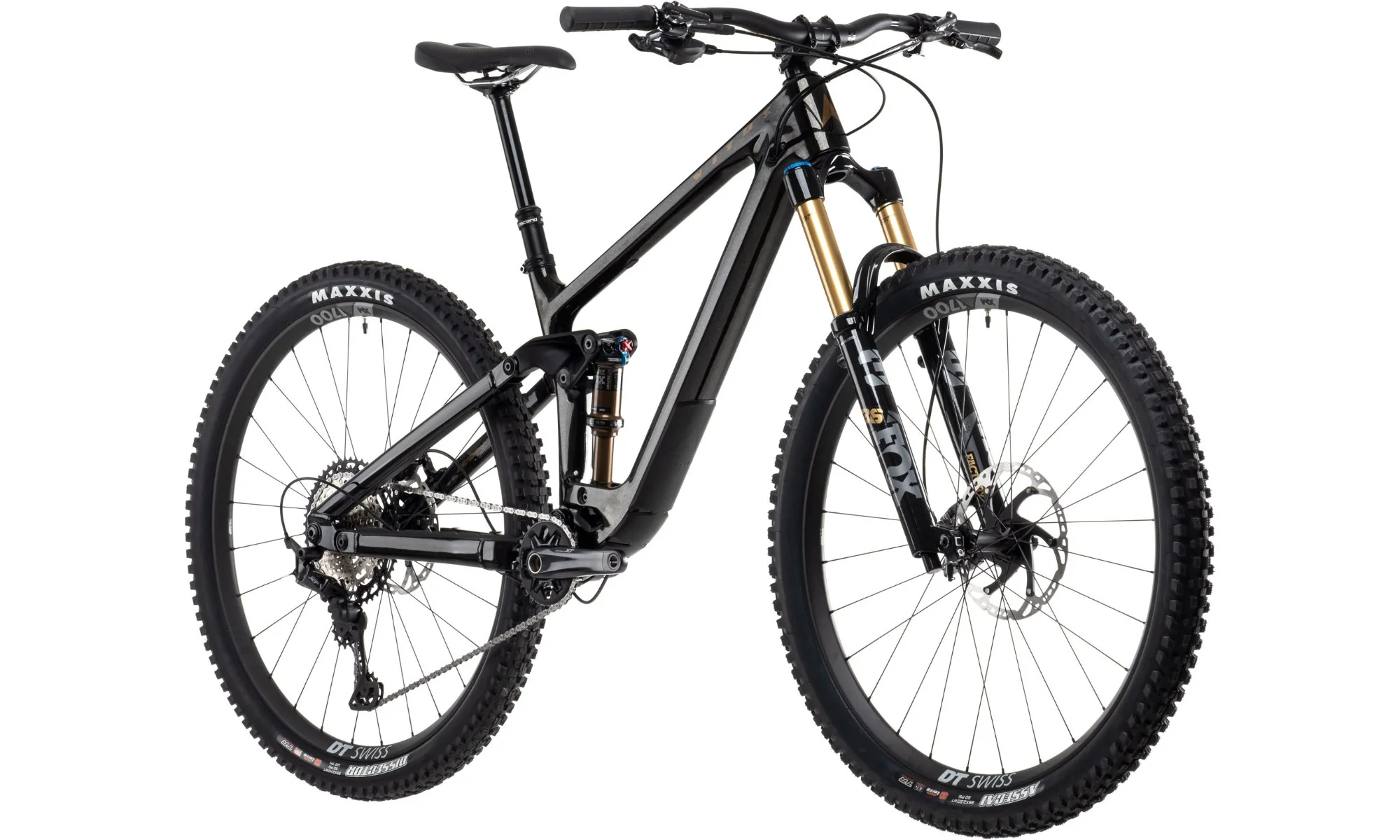

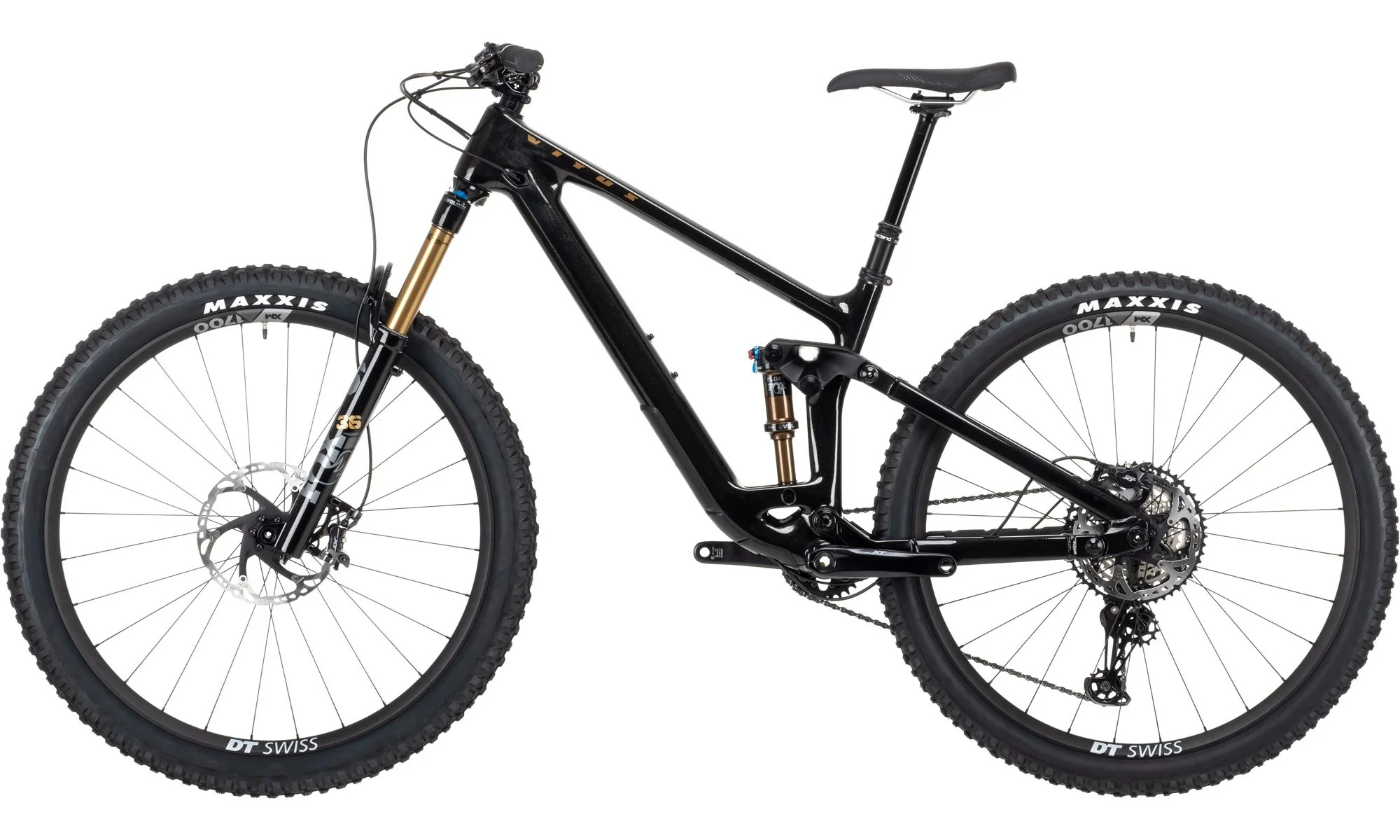

Our flagship Escarpe 29 CRX is ready for you to hit your trail of choice. The 29 CRX comes with 140mm of frame travel, matched with buttery smooth 150mm Fox 36 Factory GRIP2 forks paired with a Fox Float DPS Factory rear shock to keep you planted when the trails get rough. Shimano's high performance 1x12 wide range XT drivetrain provides reliable shifting for all day epics while the Shimano XT brakes provide ample stopping power.

Rolling on the high performance DT Swiss M1700 wheels and a Maxxis Assegai / Dissector tubeless ready tyre combo to provide the right balance of grip and speed. Finished with Nukeproof components and a Brand-X Ascend dropper post you’ll have the confidence take your trail riding to the next level with our Escarpe 27 CRX.

*Due to volatility in the bicycle supply chain we may slightly alter the specification of the component parts supplied with this bicycle. Where this happens we have listed the alternate product in the specification table and have ensured that this is of either equivalent or superior specification to the stock component.

T700 Carbon Front Triangle with 6061-T6 Aluminium Rear Triangle

Fox 36 Float Factory GRIP2 150mm/ Float DPS Factory Suspension

Shimano 1x12spd M8100 XT Drivetrain

DT Swiss M1700 Wheels

Maxxis Assegai/Dissector Tyres

Brand-X Ascend Dropper

All New Carbon Escarpe Updated modern geometry with adjustable flip chip, improved suspension kinematics and a smile inducing ride.

Frame Material T700 Carbon/6061-T6 Aluminium

Suspension Travel  150mm Front, 140mm Rear

Wheel Size 29

Available Size S,M,L,XL

Colour GOLD DUST

Weight: Medium: 14.3kg (Tubeless setup)



Specifications

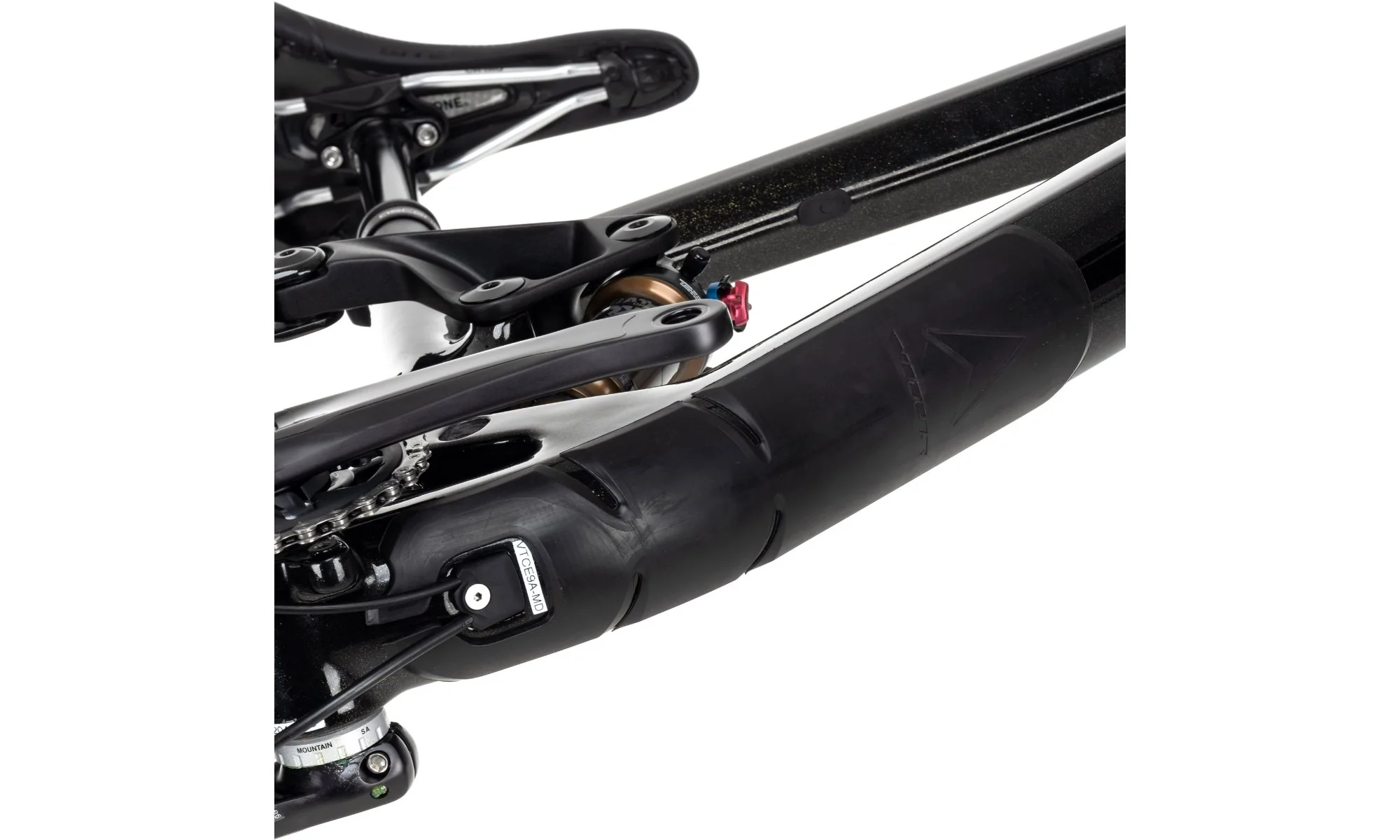

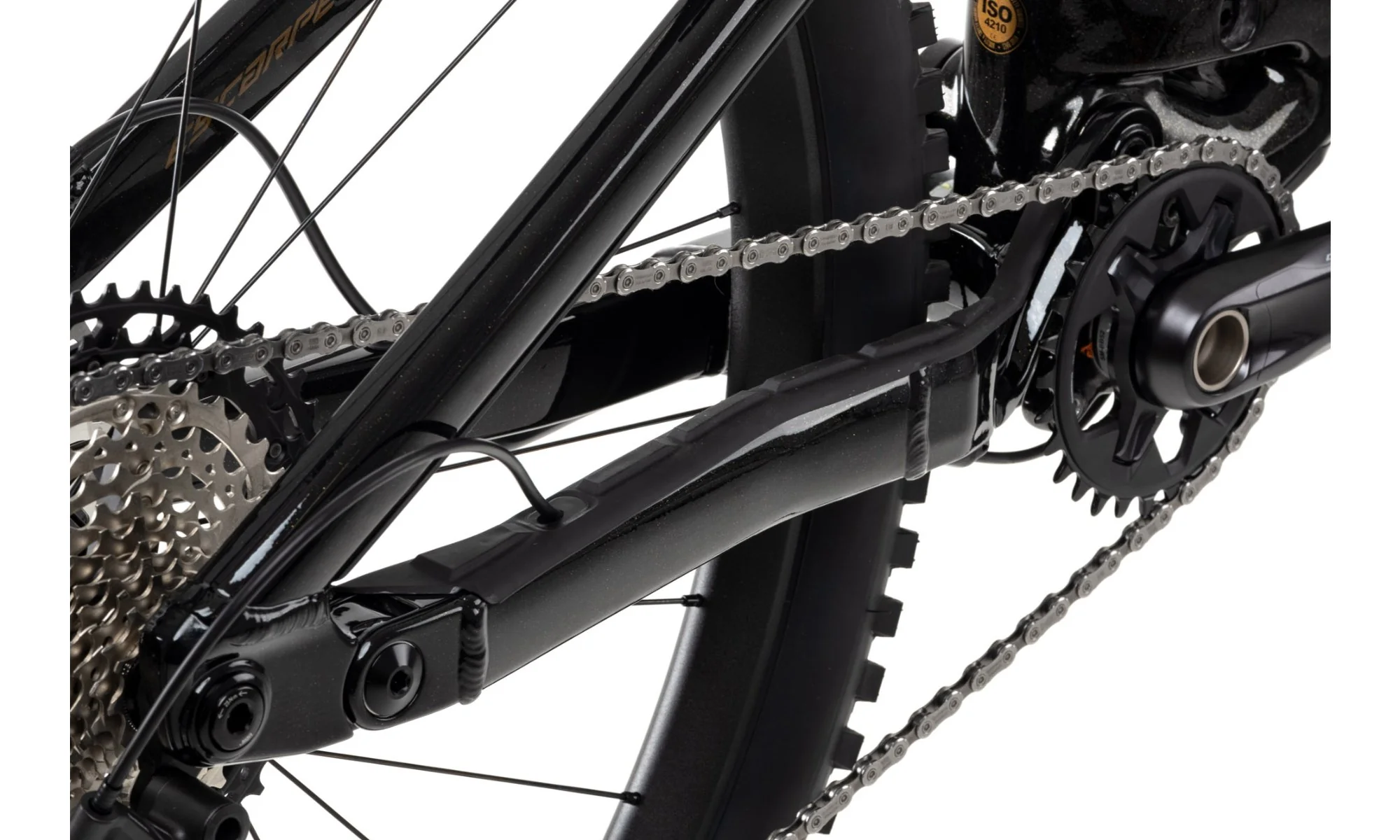

FRAMEEscarpe T700 carbon front triangle, alloy 6061 rear Internal cable routing, post mount disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle	REAR HUB DT Swiss M 1700  6 Bolt, Shimano microspline driver, Boost – 148mm x 12mm thru axle

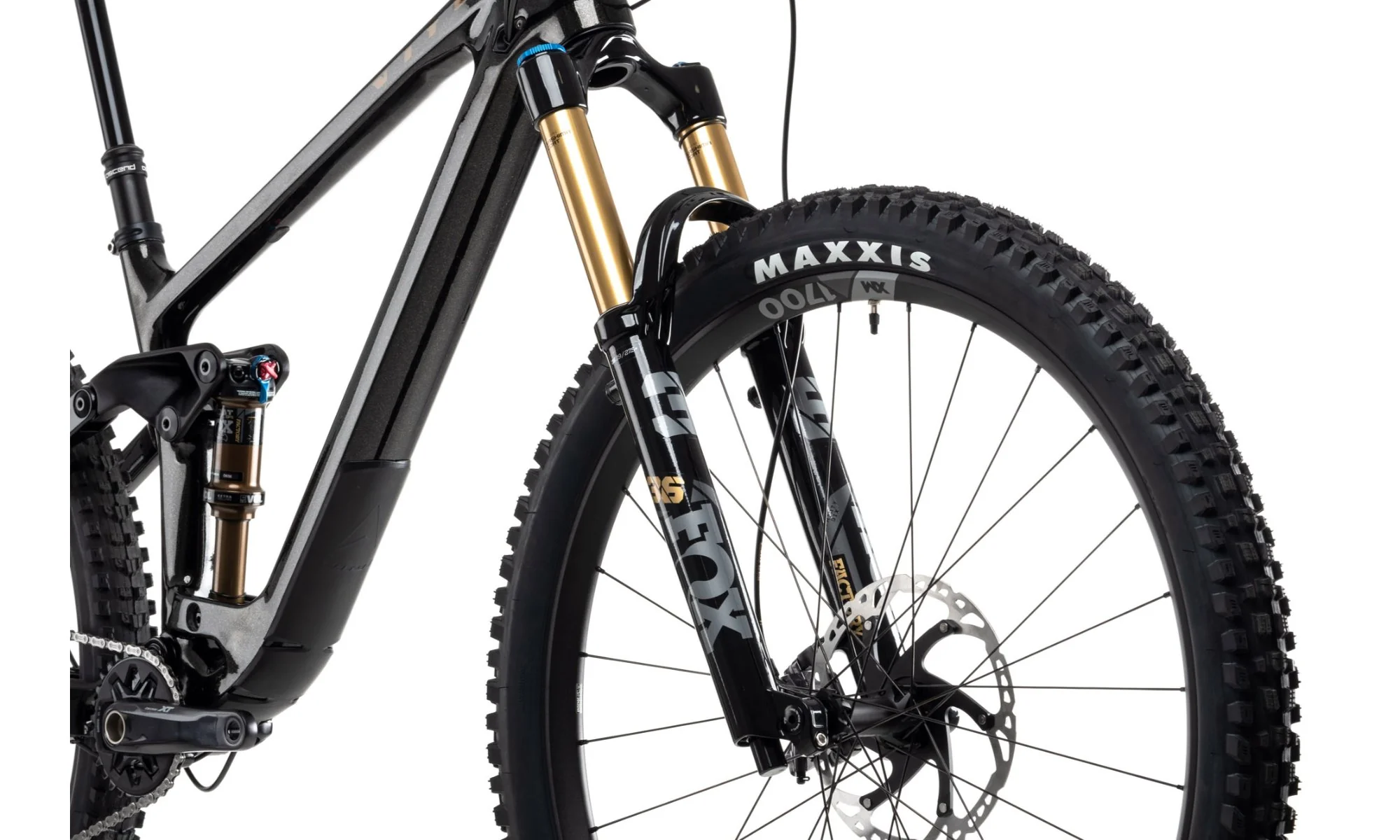

FORKSFOX 36 Float Factory Series 29” Kashima coating, Grip2 damper, 36mm stanchions, 150mm travel, 110mm x 15mm QR axle 44mm rake	SPOKESDT Swiss   N/A

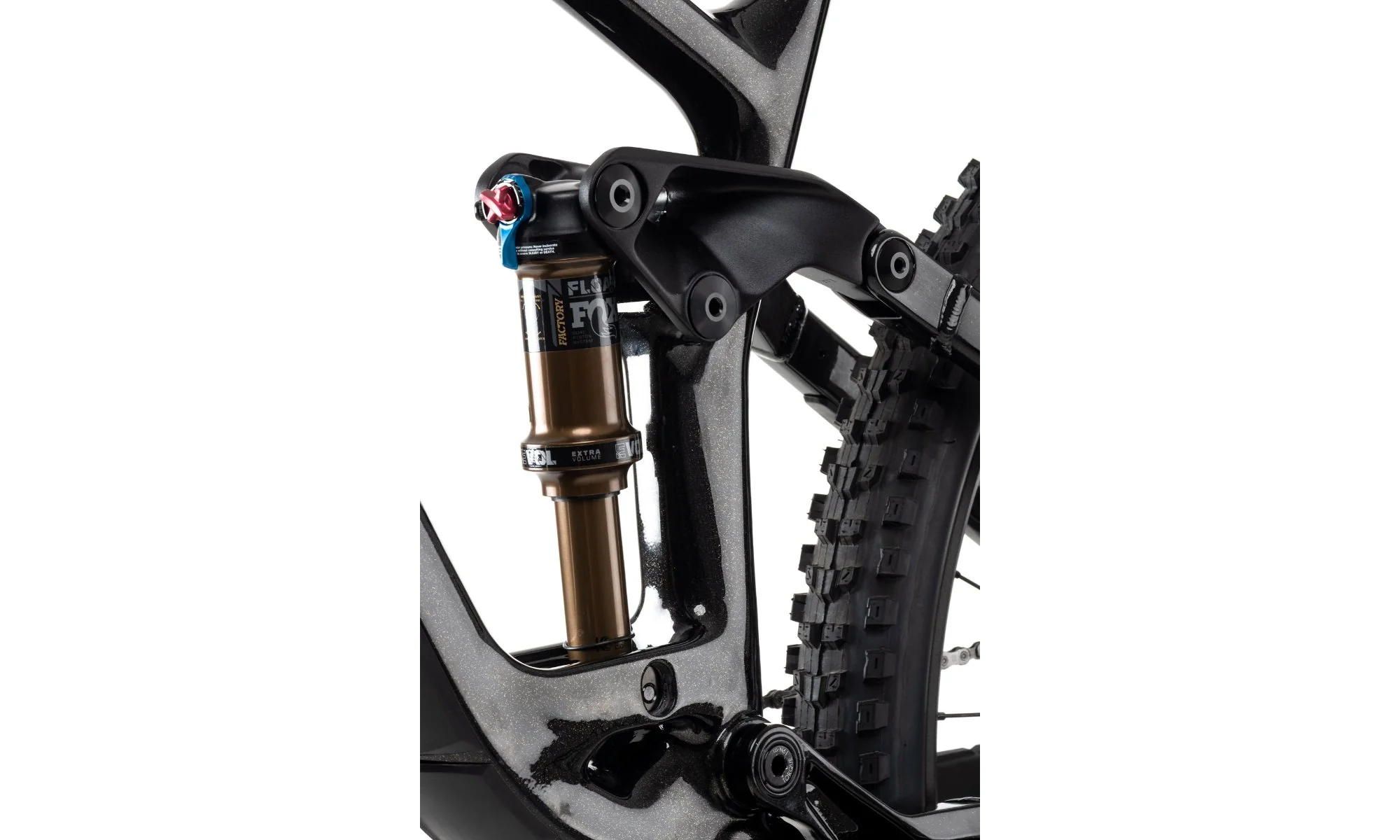

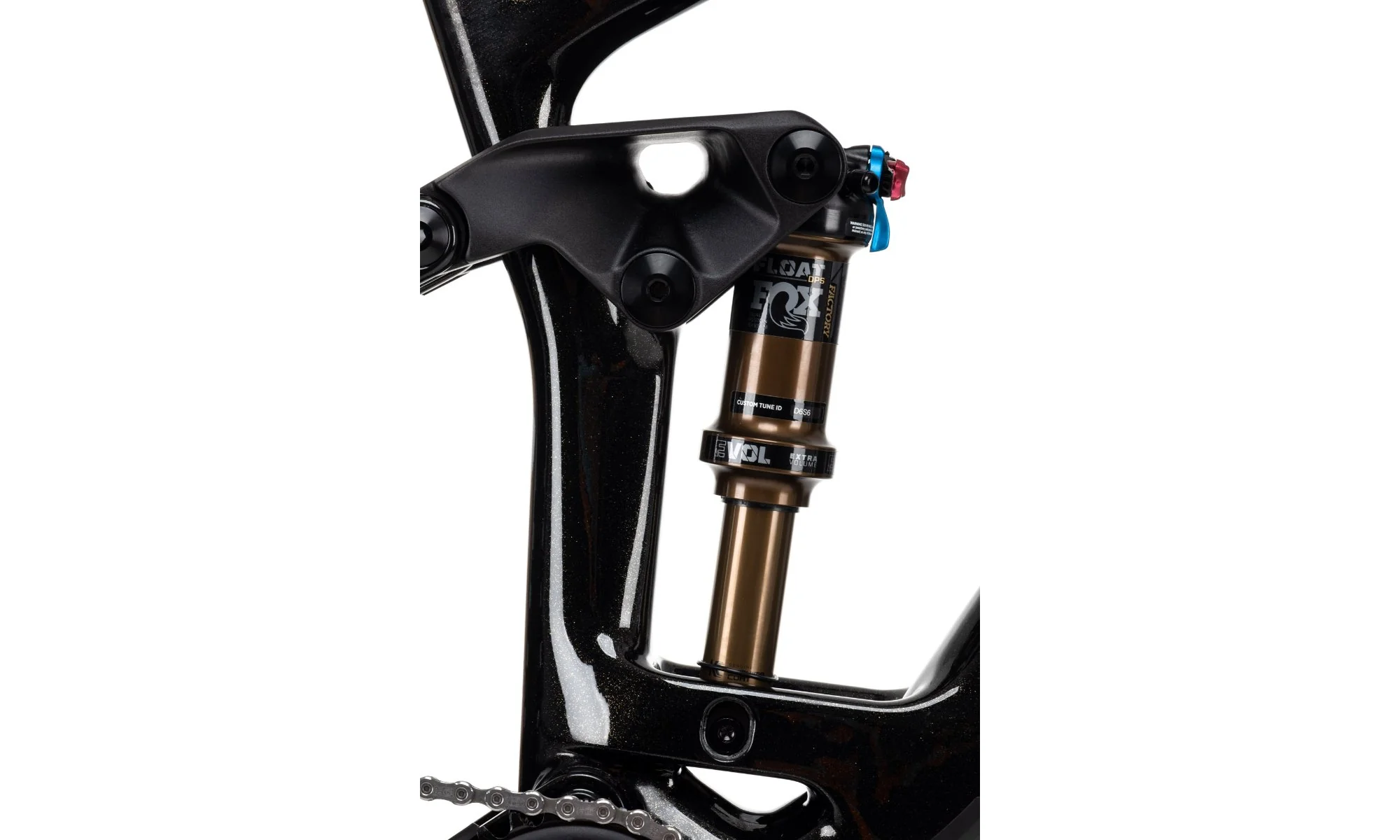

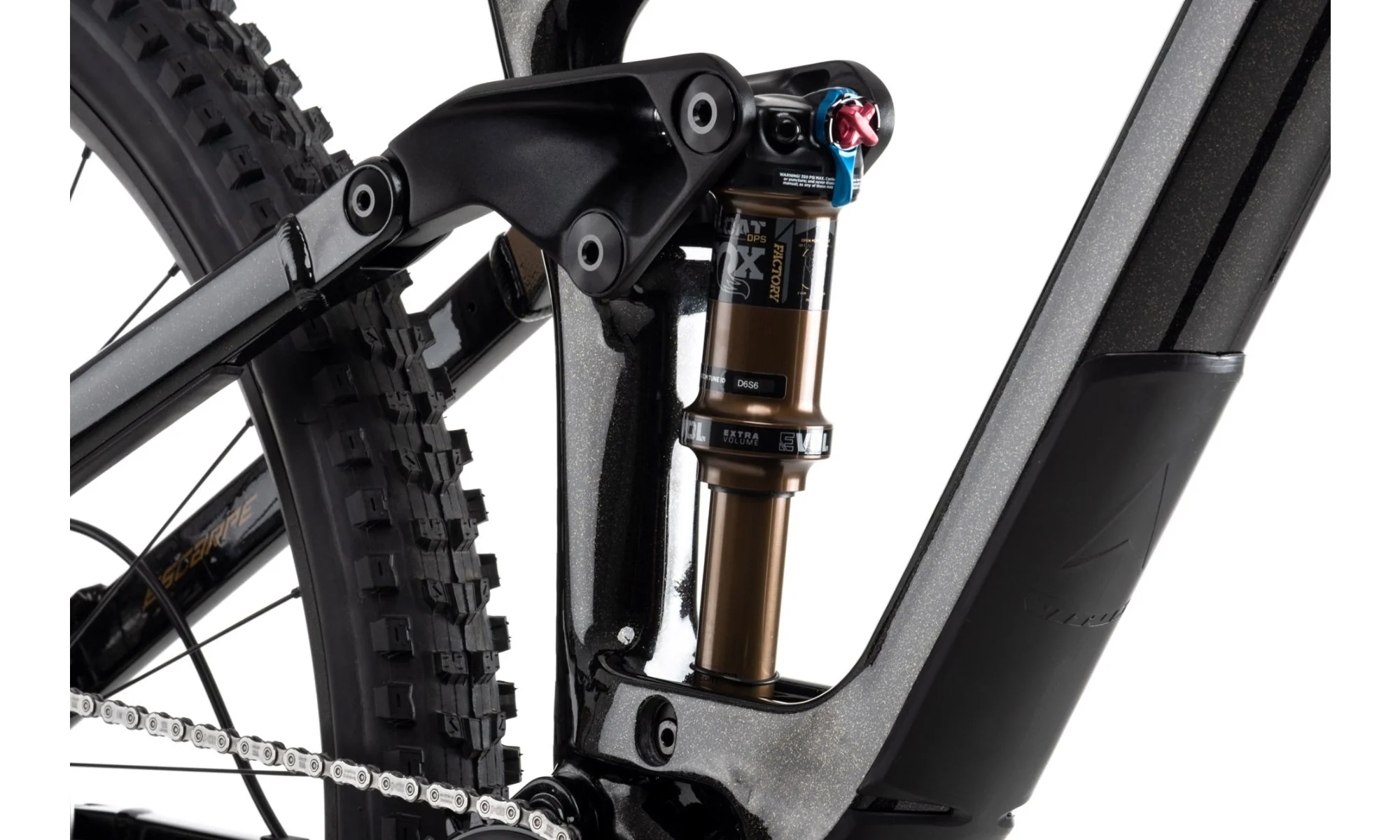

SHOCKFox Float DPS Factory Kashima coating, EVOL air spring, 3 position lever, 205mm x 60mm, trunnion	FRONT TYREMaxxis Assegai  3C MaxxTerra compound, EXO/TR, 29” x 2.50”

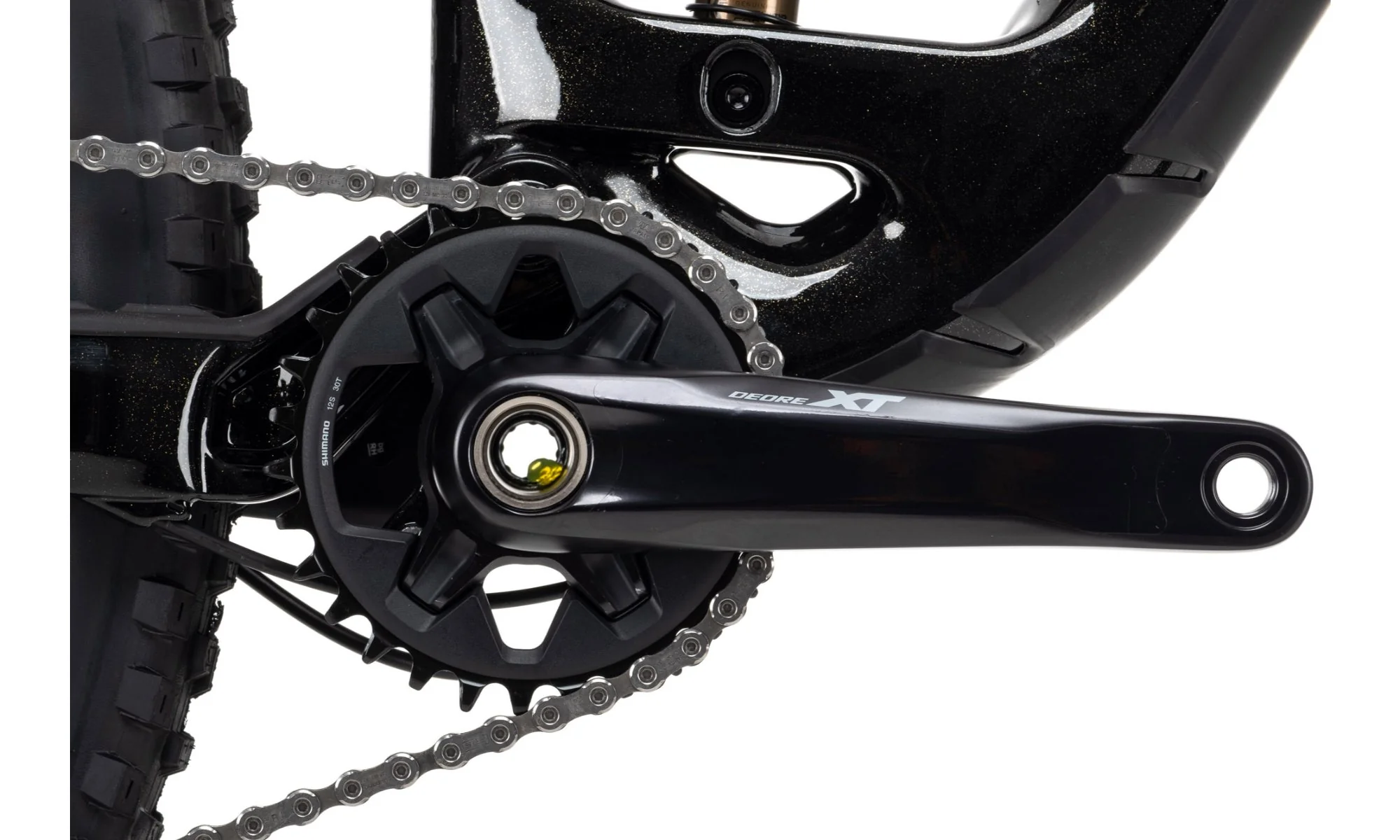

CHAINSETShimano XT M8100 30t, 170mm	REAR TYREMaxxis Dissector 3C MaxxTerra compound, EXO/TR, 29” x 2.40”
BOTTOM BRACKETShimano SM-BB52, BSA  73mm BSA Threaded	BRAKESShimano XT MT8120 N/A

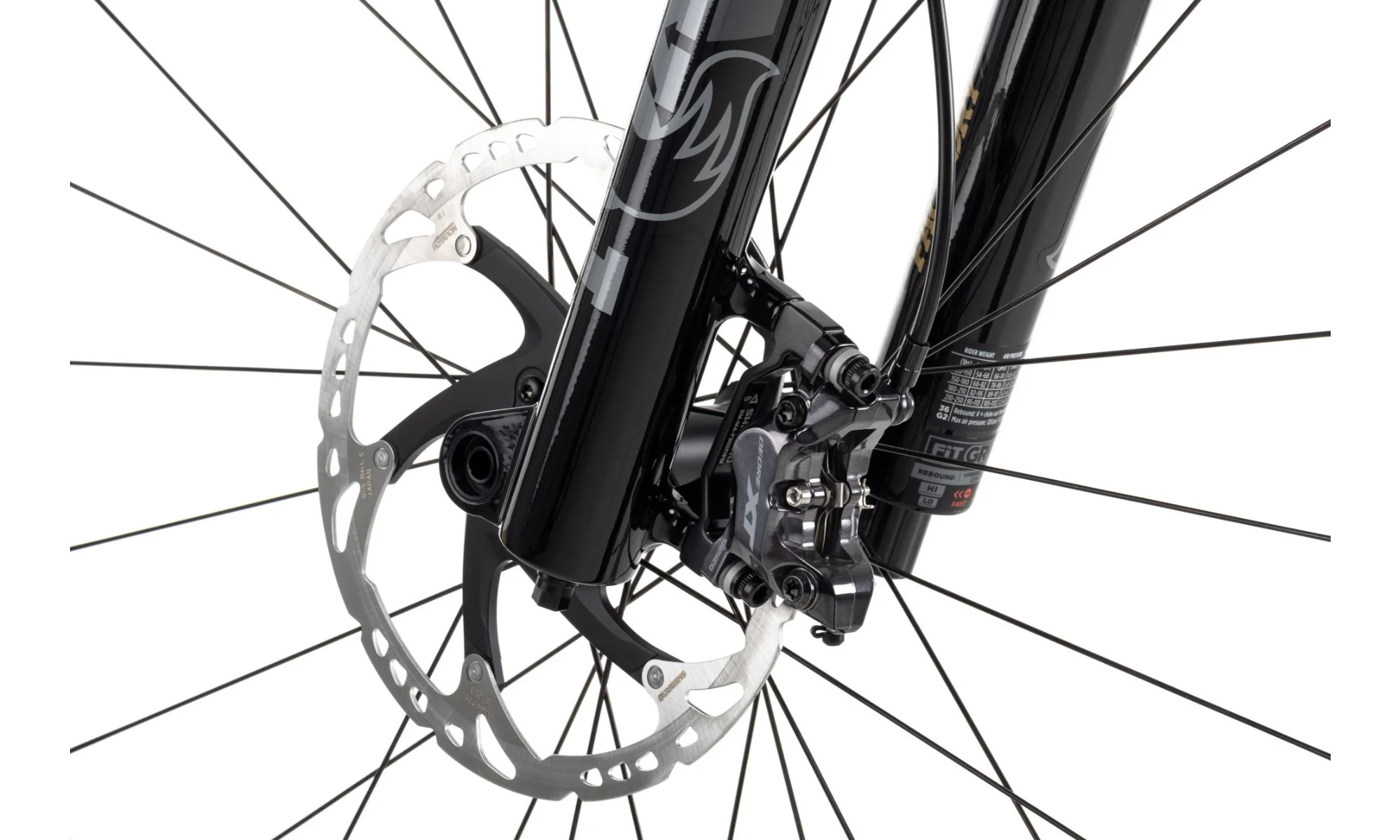

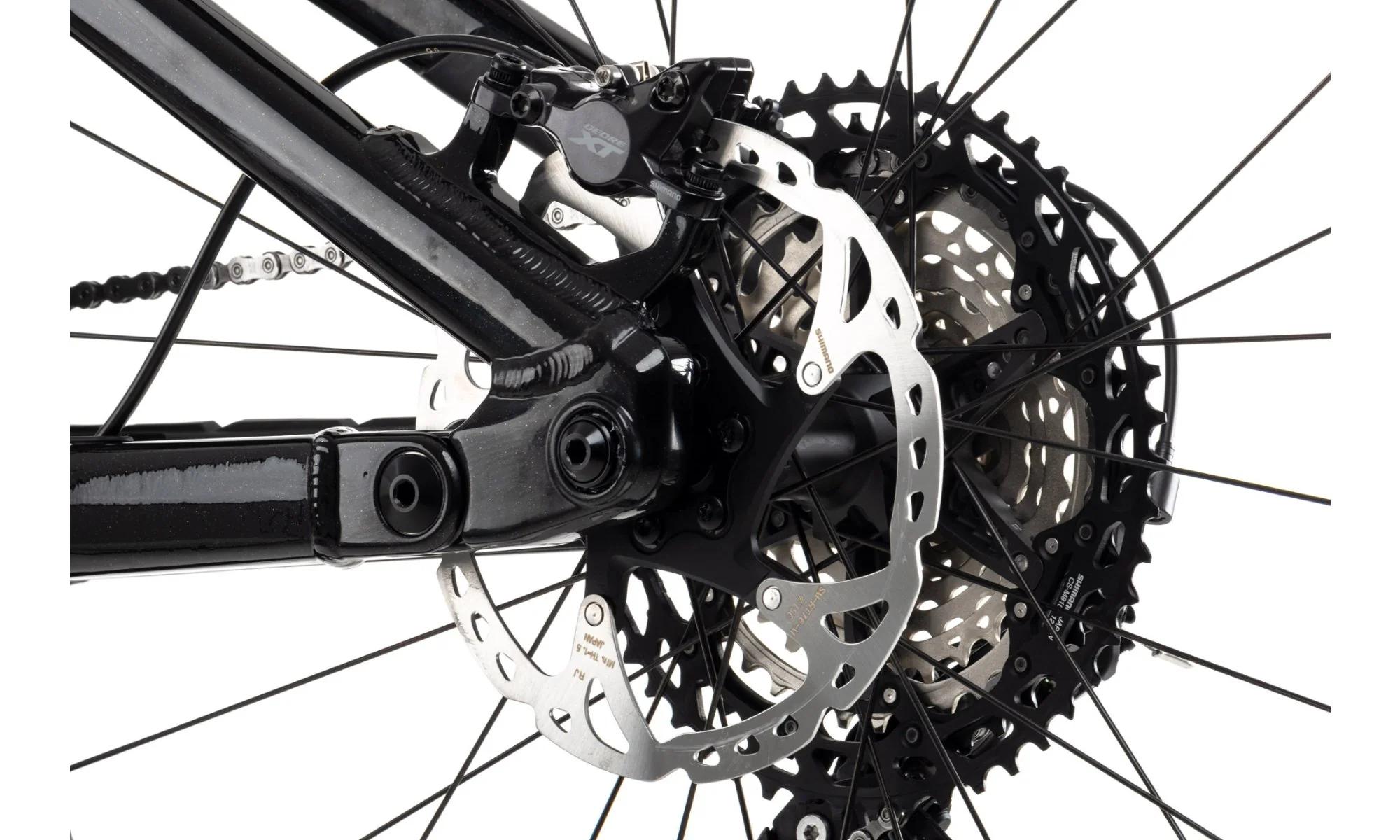

FRONT DERAILLEURN/A N/A	BRAKE ROTORSShimano SM-RT76 or Brakco DR-02 203mm front / 180mm rear, 6 bolt

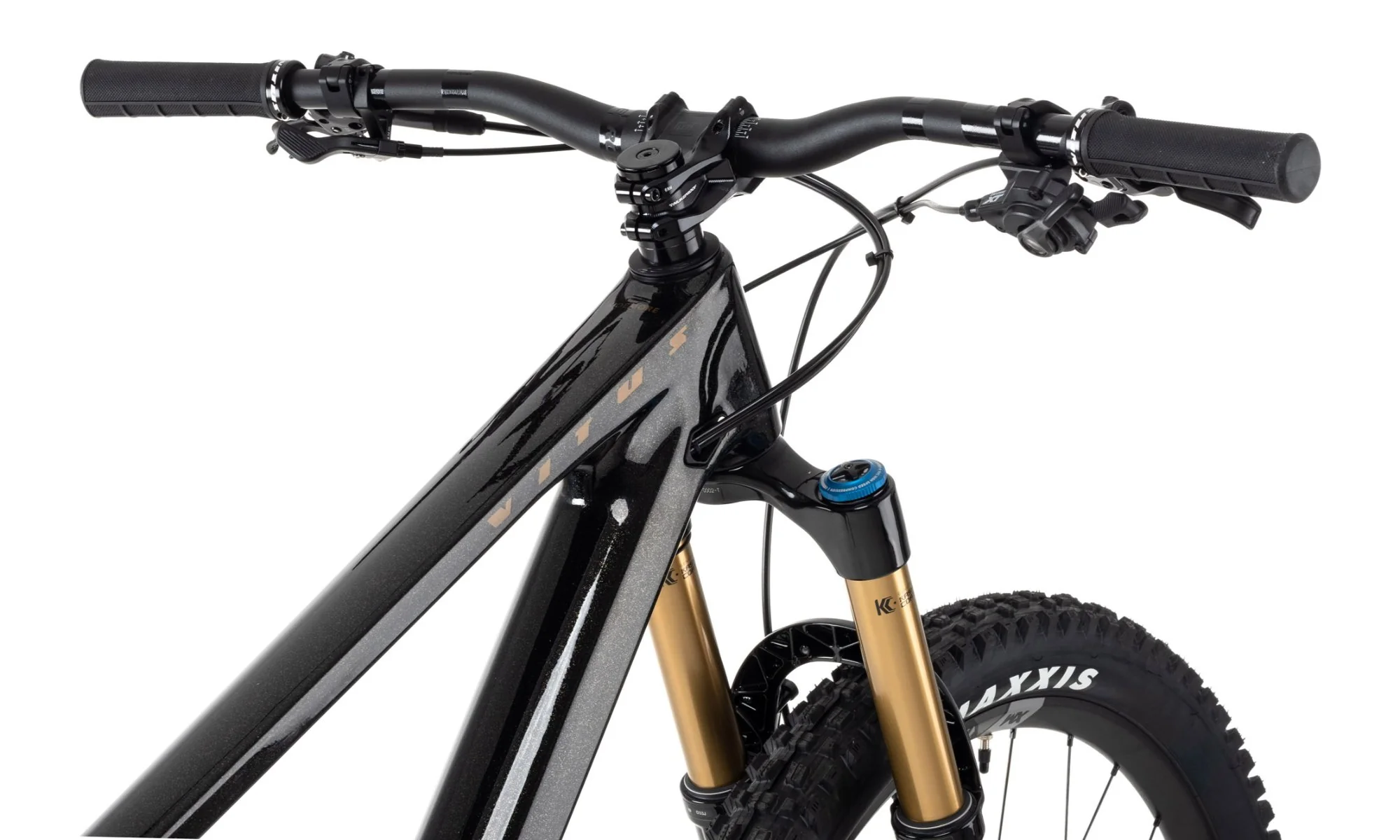

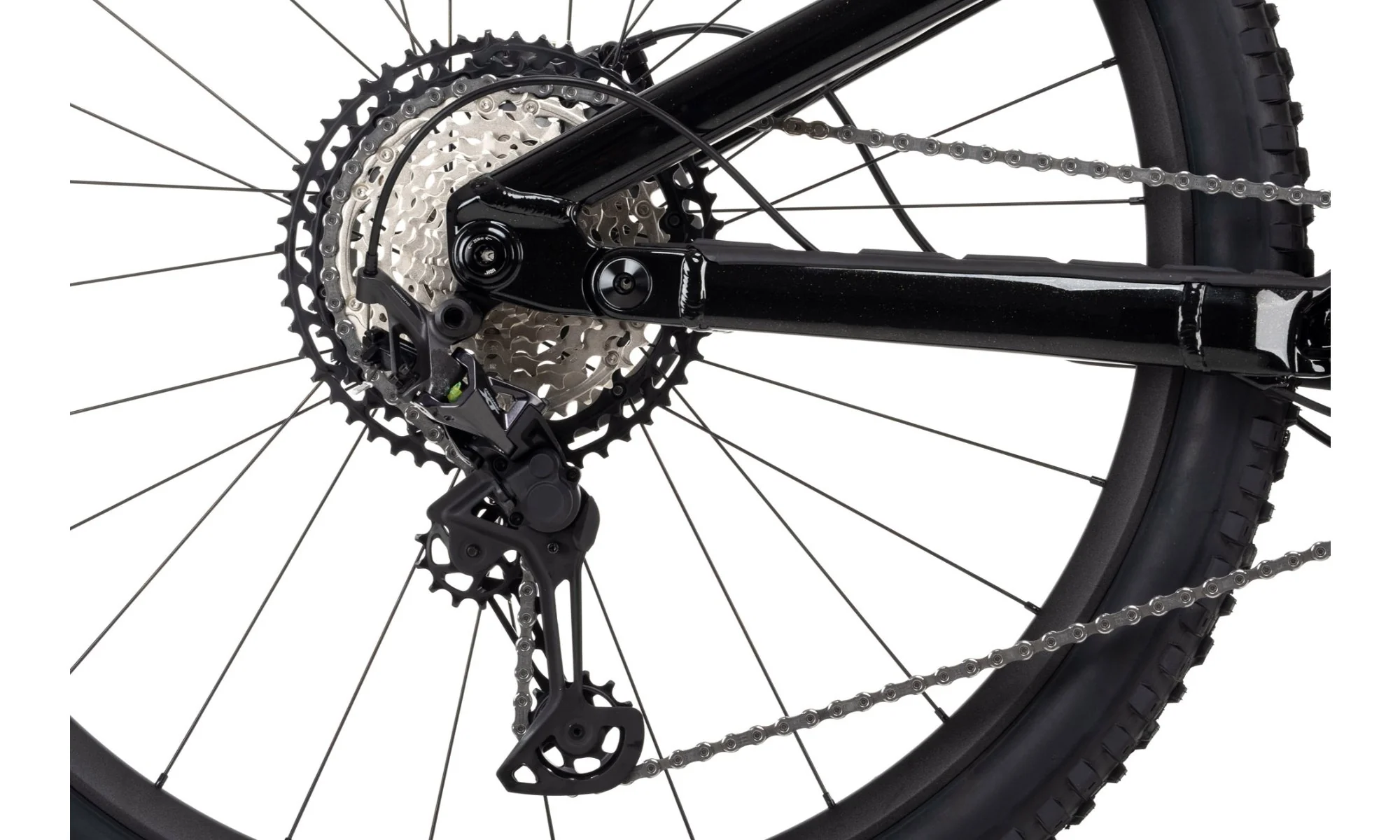

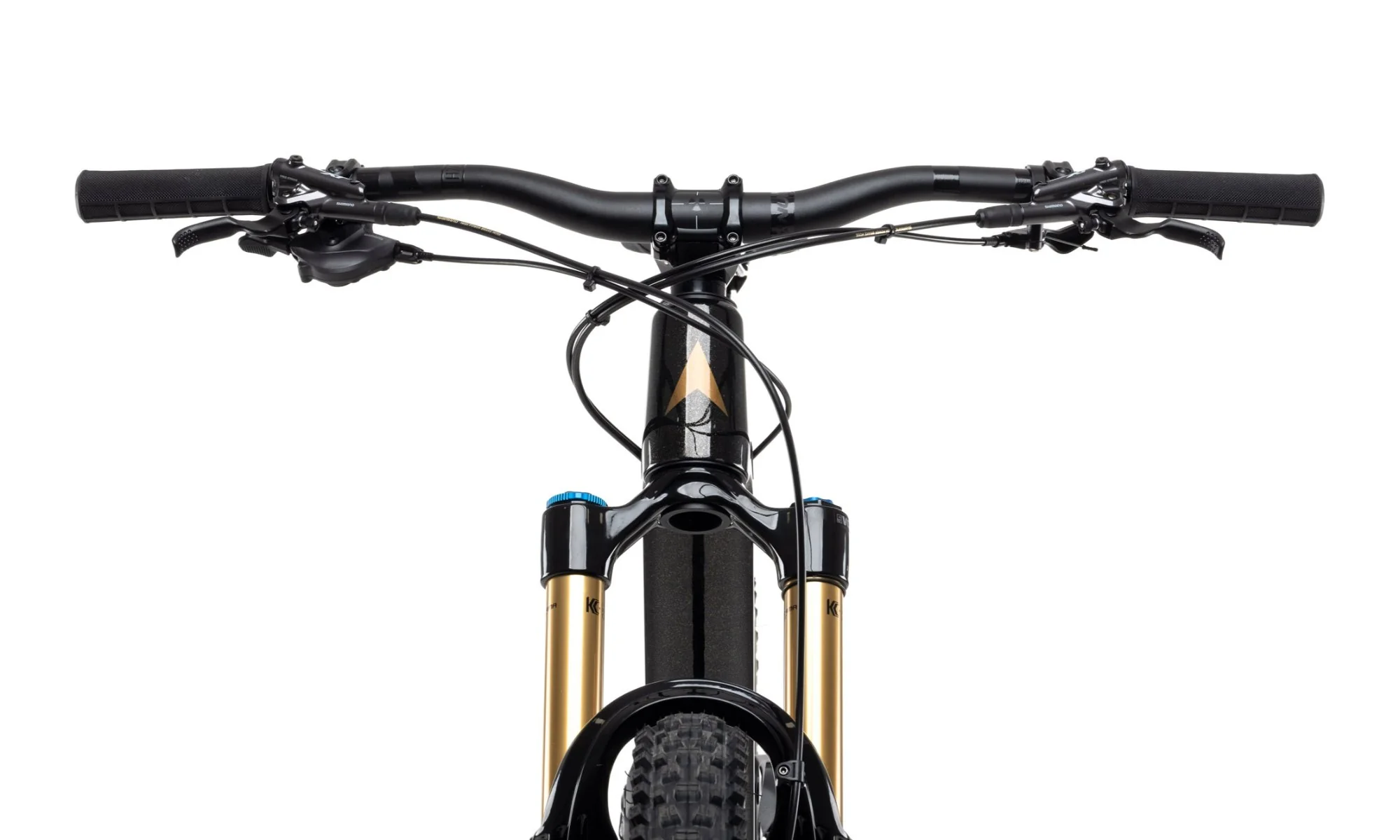

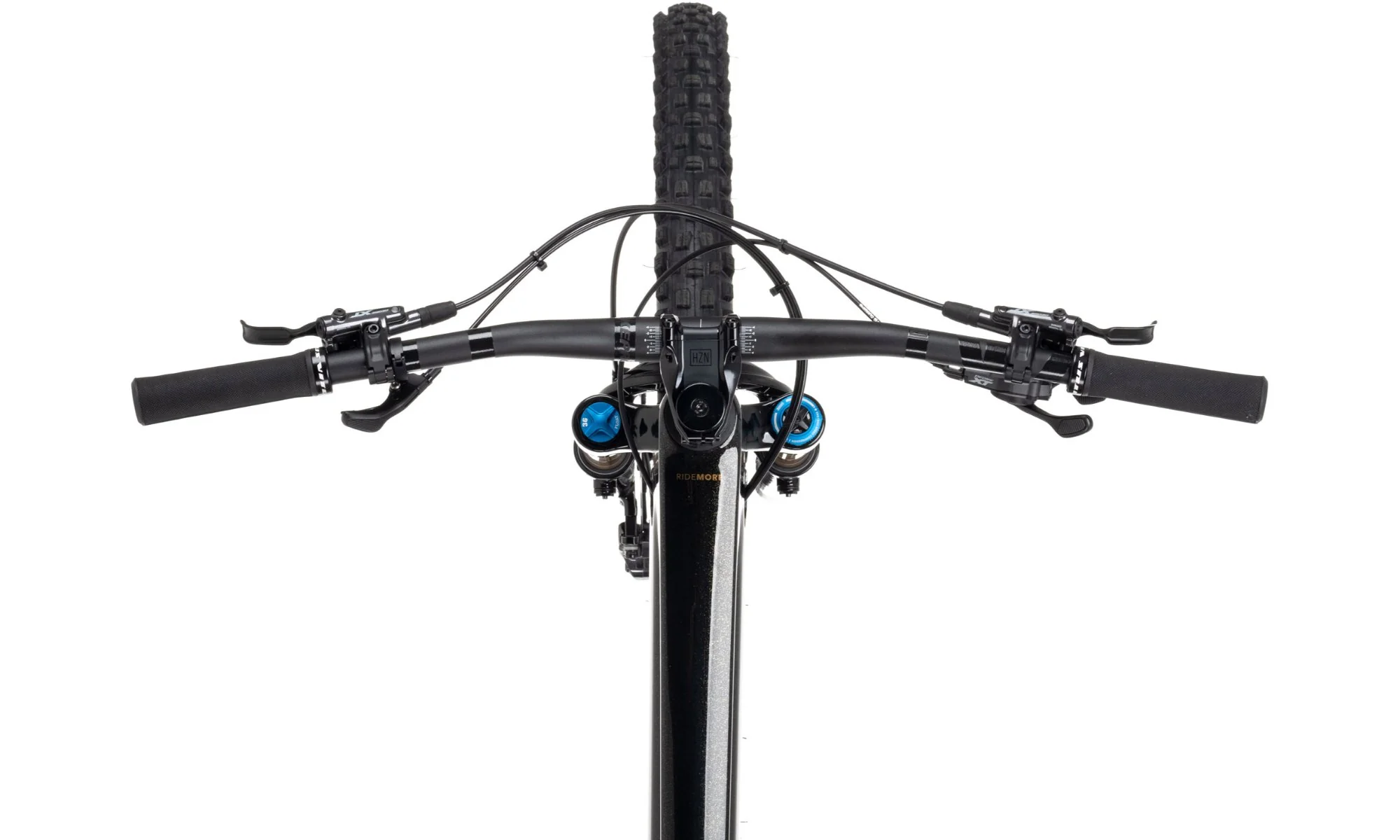

REAR DERAILLEURShimano XT M8100 Shadow plus, long cage, 12 speed	HANDLEBARSNukeproof Horizon riser   Alloy 7050, 25mm rise,  9° back sweep, 760mm wide S/M, 780mm wide L/XL
SHIFTERSShimano XT M8100   Rapidfire plus, 12 speed	STEMNukeproof Horizon   Alloy 6061, 45mm reach, 0° rise
CASSETTEShimano XT M8100 10t-51t, 12 speed	HEADSETAcros AZX-212-CO R5   Sealed bearings, OD44, 44/28.6 – 56/40
CHAINShimano XT M8100   12 speed	GRIPSVitus lock on   N/A
FRONT RIMDT Swiss M 1700    SPLINE 6 Bolt Black Front, 15x110mm, 29"	SADDLENukeproof Neutron   N/A

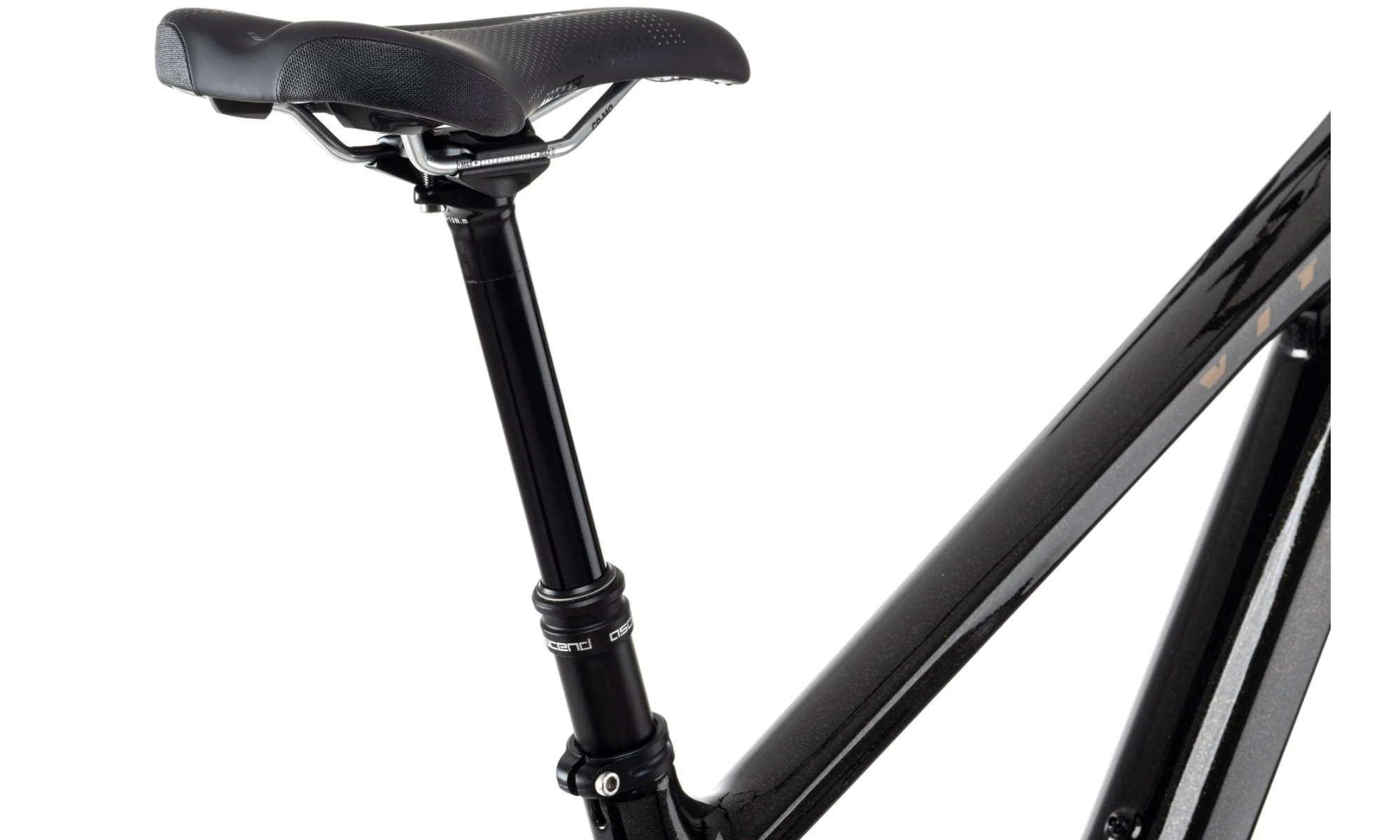

REAR RIMDT Swiss M 1700     SPLINE 6 Bolt Black, 12x148mm, 29" Shimano Microspline Driver Body	SEATPOSTBrand-X Ascend dropper   Remote lever, 31.6mm,  S 125mm drop/M 150mm drop/L,XL 170mm drop
FRONT HUBDT Swiss M 1700    110mm x 15mm thru axle, 6 Bolt	SEATCLAMPVitus bolt, 36.4mm   N/A
