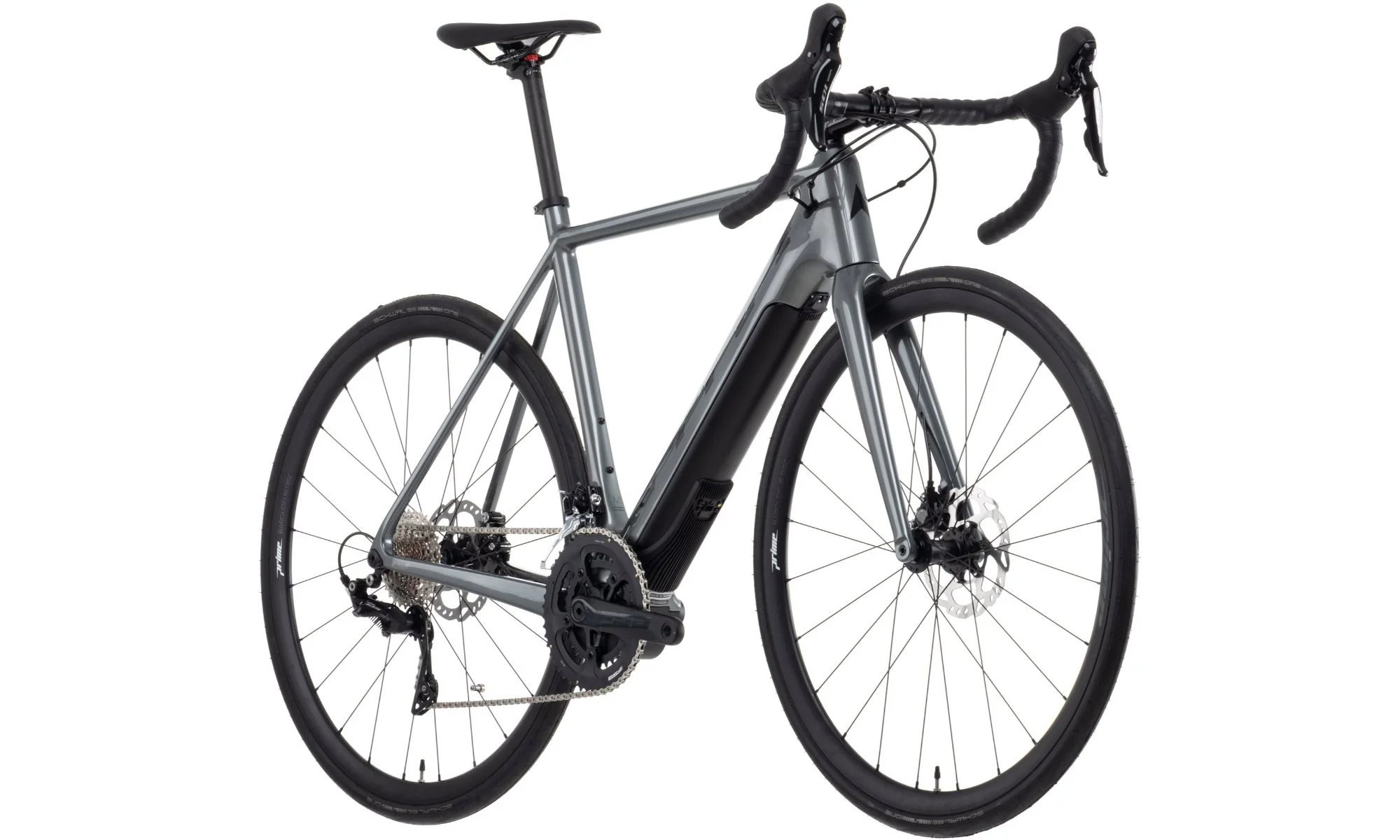

Vitus Emitter Carbon E Road Bike Fazua (2021)

A lightweight carbon e-road bike featuring the award winning Fazua evation drive system

The Emitter Carbon uses a superlight carbon fibre frame, with integrated electric drive system from Fazua - the lightest and most compact drive system in the industry. The sporty road bike geomerty combined with the mid-position motor results in a bike that handles every bit as well as a traditional road bike, but with the added benefit of a little assistance.

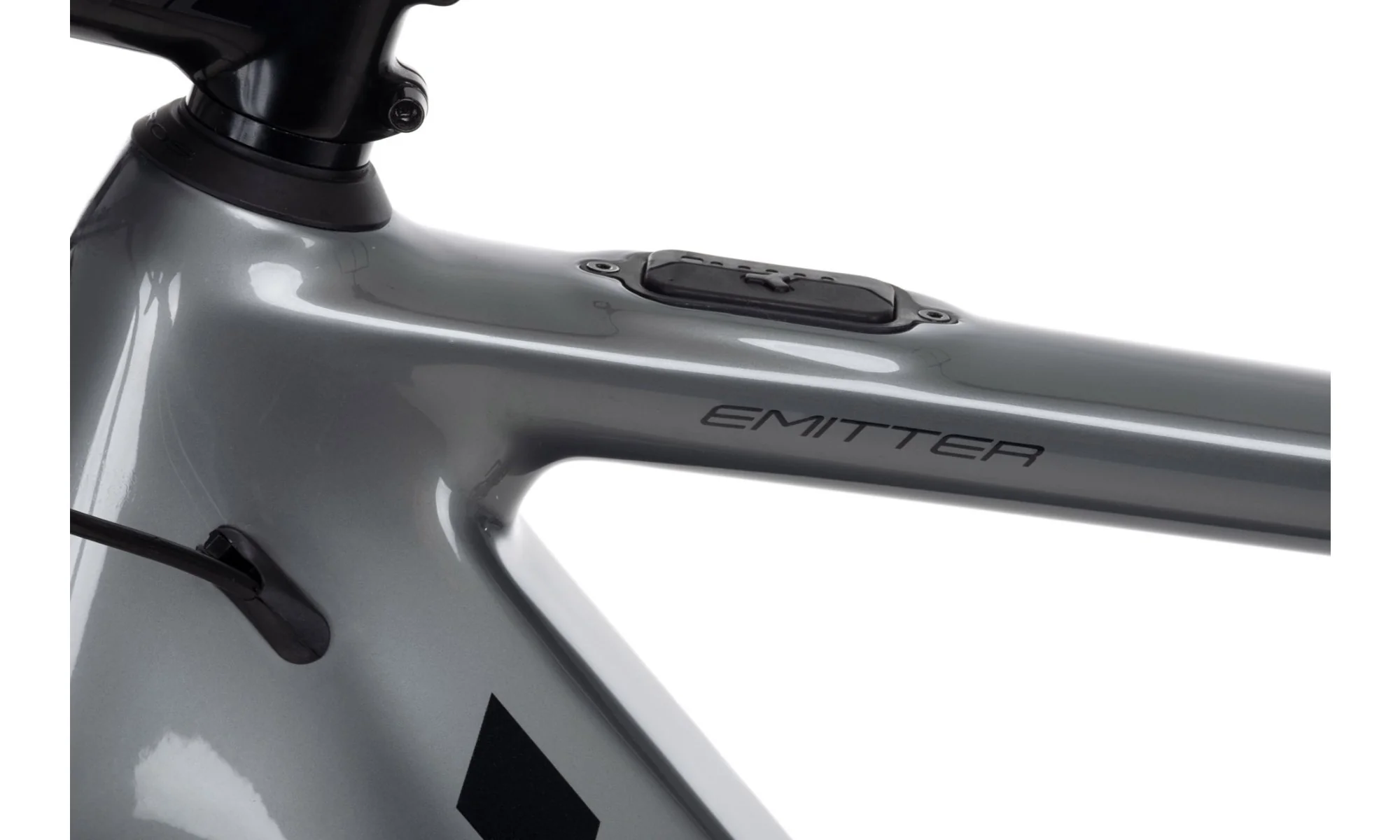

Fazua evation is the most compact drive system around, thanks to it's slim integrated design, meaning the Emitter Carbon retains a classic road bike look. A unique natural riding feel with no mechanical resistance above the legal speed limit makes the Emitter perfect for anyone looking to enjoy a fun ride at any speed in a lightweight package. 3 levels of assistance up to 250 watts allow you to tailor the ride to suit. Featuring the latest generation evation with integrated Top Tube controller.

The frame features internal cable routing, and is paired to a full carbon fork with tapered steerer. Alongside the drive system is a Shimano 105 2 x 11 speed hydraulic disc groupset with FSA chainset. Schwalbe One Performance tubeless tyres come fitted to a sleek looking Prime Baroudeur disc wheelset.

Carbon frameset featuring integrated Fazua evation drive system

3 Assistance levels

Assistance up to 25 km/h

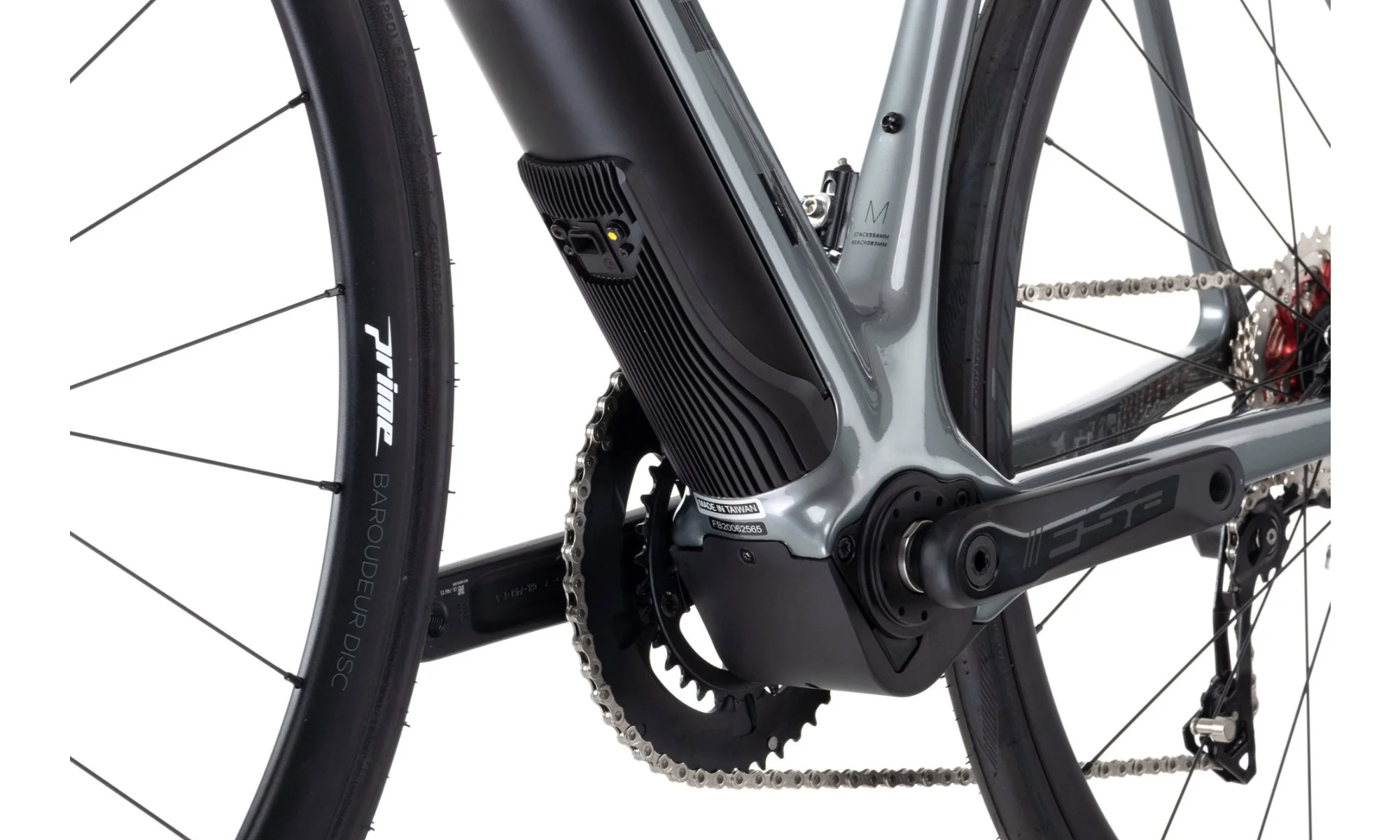

Mid-drive motor, 250 Watt Max - 55 Nm

252 Wh battery

Approx 2hr charge time - UK Plug

Fazua evation powered road bike Fast carbon road bike with electric assistance

Frame Material Carbon

Wheel Size 700c

Available Size S, M, L, XL

Colour Anthracite

Weight: Medium: 13.77kg



Specifications

FRAMEEmitter Carbon Carbon, Fazua evation Integration , Internal Cable Routing, Flat Mount, 142 x 12mm axle	REAR RIMPrime Baroudeur Disc 700c, Tubeless Ready, 24 Hole
FORKSEmitter Carbon UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount	FRONT HUBPrime Baroudeur Disc   100 x 12mm Front, Centre Lock
SHOCKN/A N/A	REAR HUB Prime Baroudeur Disc 142 x 12mm Rear, Centre Lock, HG Freehub
CHAINSETFSA CK 746 50/34T, 10 Speed, XS:170mm S:172.5mm M:172.5mm L:175mm	SPOKESPrime N/A
BOTTOM BRACKETN/A N/A	FRONT TYRESchwalbe One Performance TLE 700c x 25, RaceGuard, MicroSkin, ADDIX
FRONT DERAILLEURShimano 105 R7000 FD-7000, Braze-On,	REAR TYRESchwalbe One Performance TLE 700c x 25, RaceGuard, MicroSkin, ADDIX
REAR DERAILLEURShimano 105 R7000 RD-7000, 10 Speed, Long Cage	BRAKESShimano 105 R7000 Hydraulic Disc   ST-7025-R/L & BR-7070-F/R, Flat Mount
SHIFTERSShimano 105 R7000   ST-7025-R	BRAKE ROTORSShimano SMRT70   Front:160mm, Rear:160mm

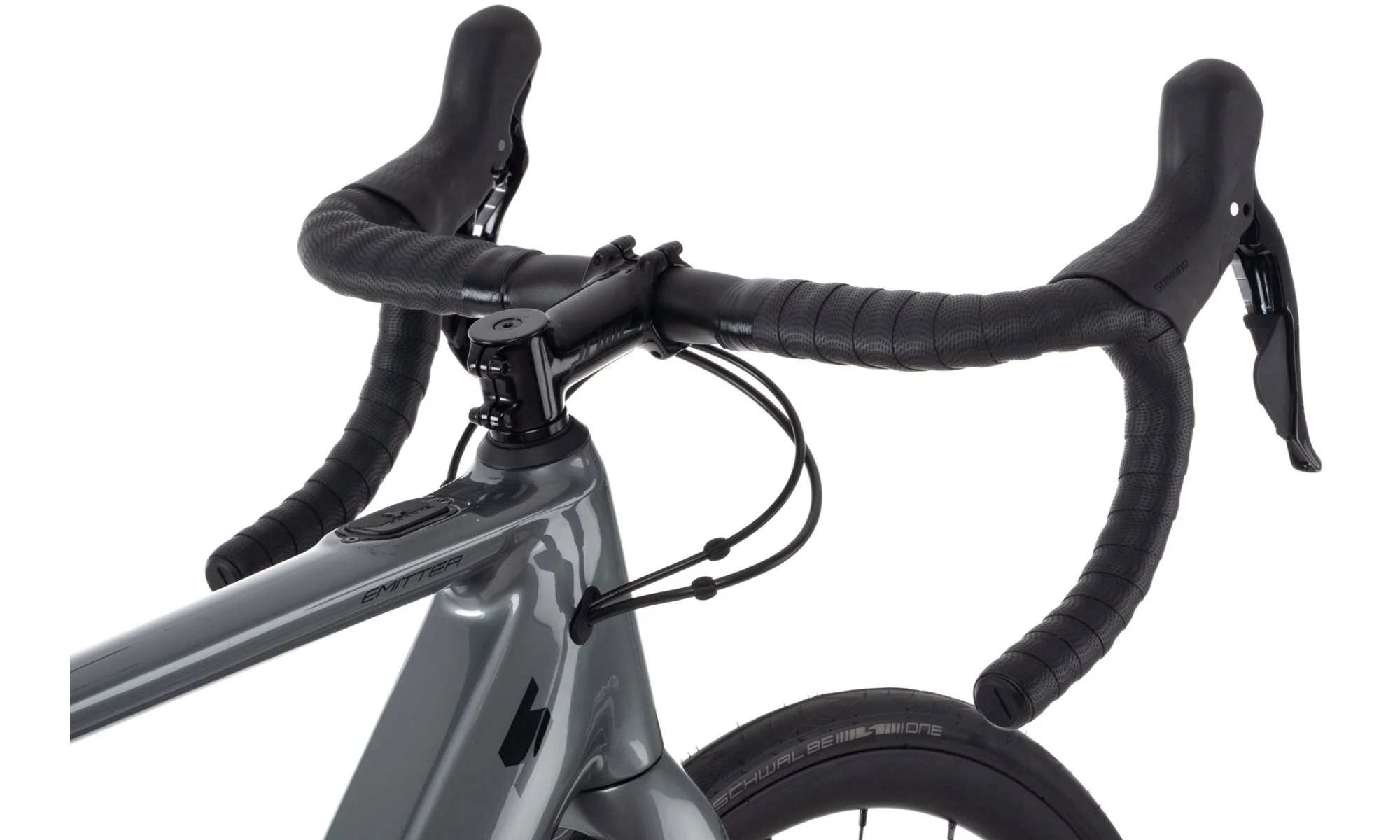

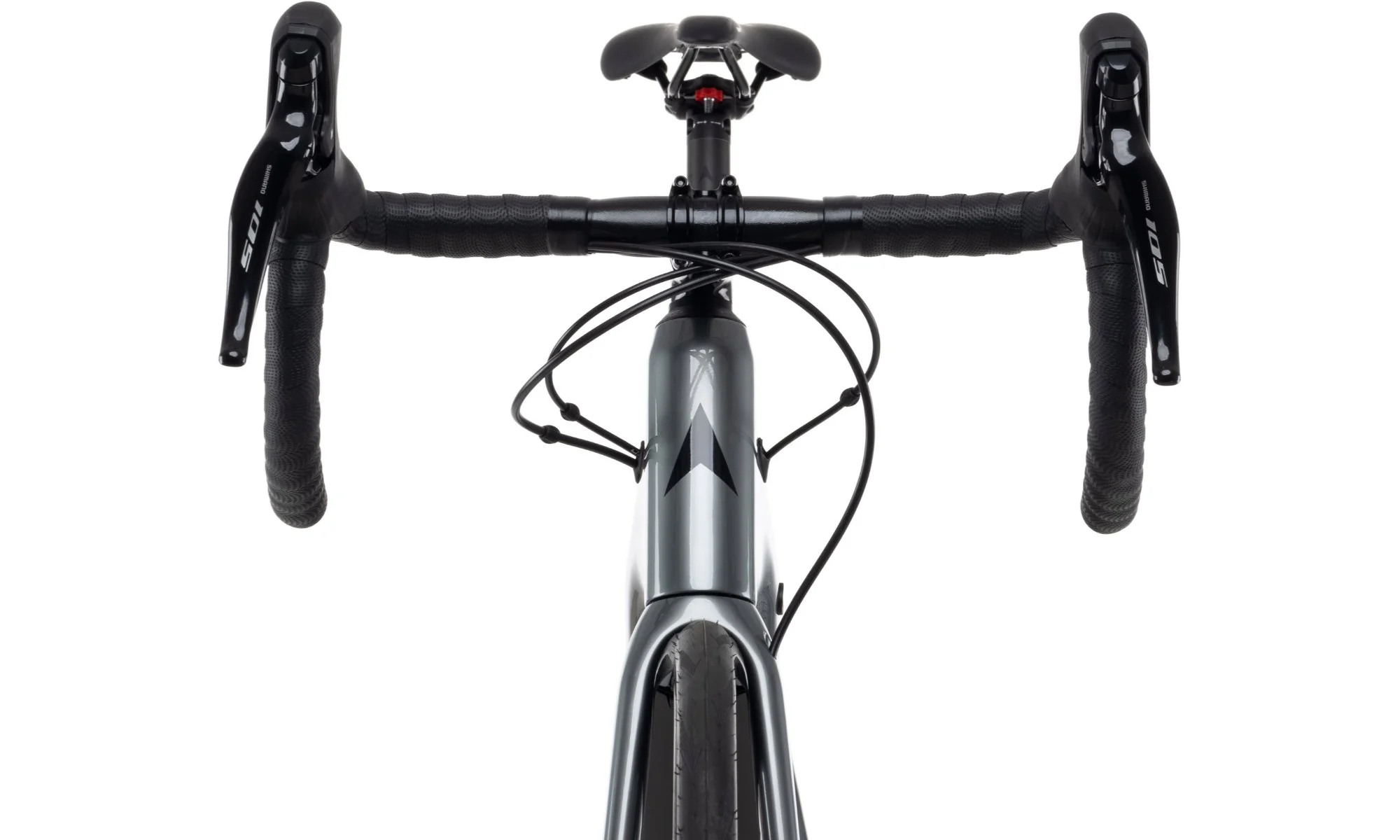

CASSETTESunrace CSXR1 11-32T	HANDLEBARSPrime Doyenne Aluminium   6061 Aluminium, XS:380mm S:400mm M:420mm L:440mm
CHAINKMC e11T   11 Speed, E-Bike Specific	STEMPrime Doyenne Lightweight Aluminium   Bar Bore 31.8mm, +/- 5 degrees, XS:80mm S:90mm M:100mm L:110mm
MOTOR BATTERYFazua evation   FAZUA Evation engine battery 252Wh - 36v / 7ah	HEADSETACROS Aix-Low R3   Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
MOTOR COMPUTERN/A   N/A	GRIPSVitus SuperGrip   Anti Slip, Shock Proof
MOTOR SHIFTERFazua evation   Frame Integrated	SADDLEVITUS   Steel Rail
MOTOR DRIVE UNITFazua evation   Mid Position Motor	SEATPOSTVITUS Carbon   27.2mm, 12mm Offset, 350mm
FRONT RIMPrime Baroudeur Disc   700c, Tubeless Ready, 24 Hole	SEATCLAMPAluminium   N/A
