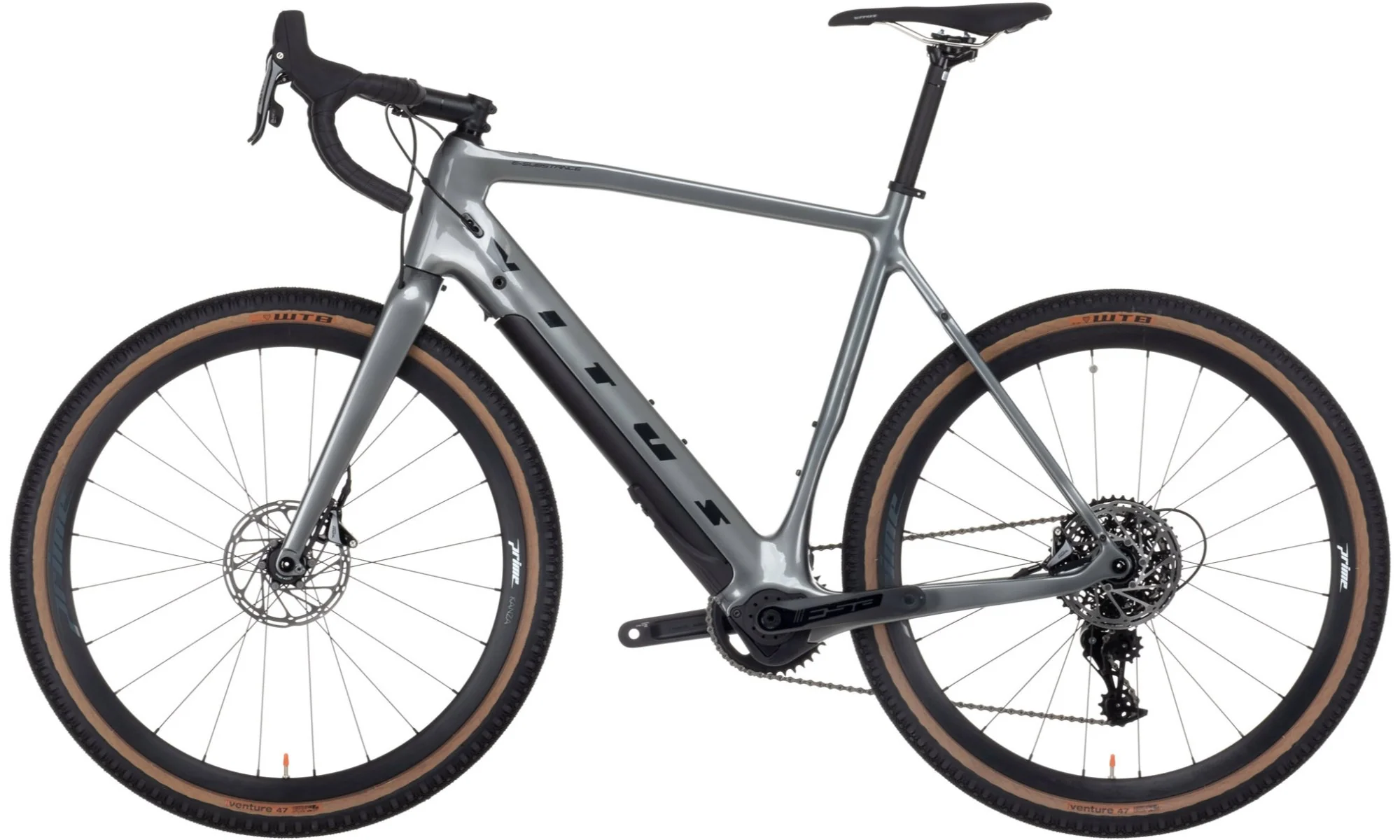

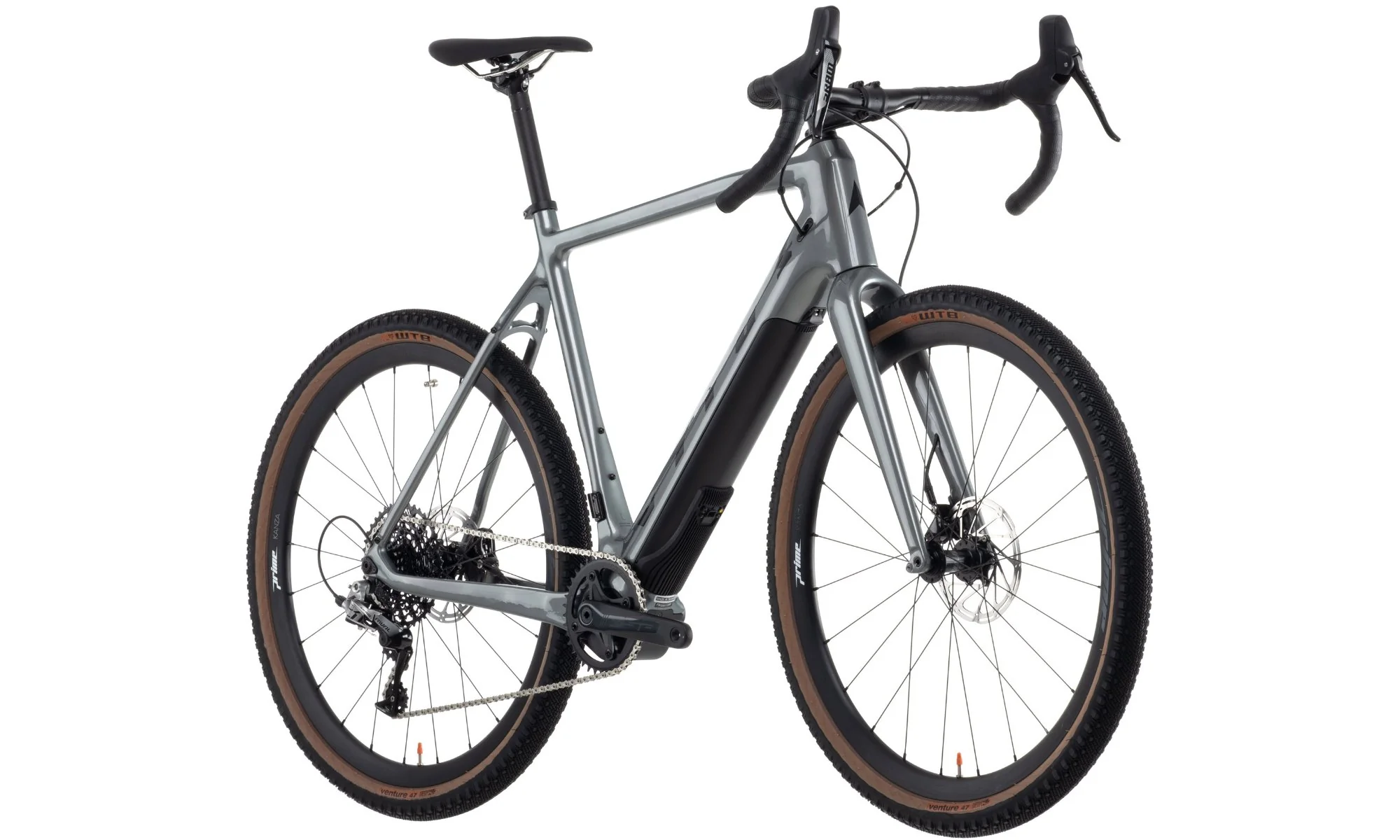

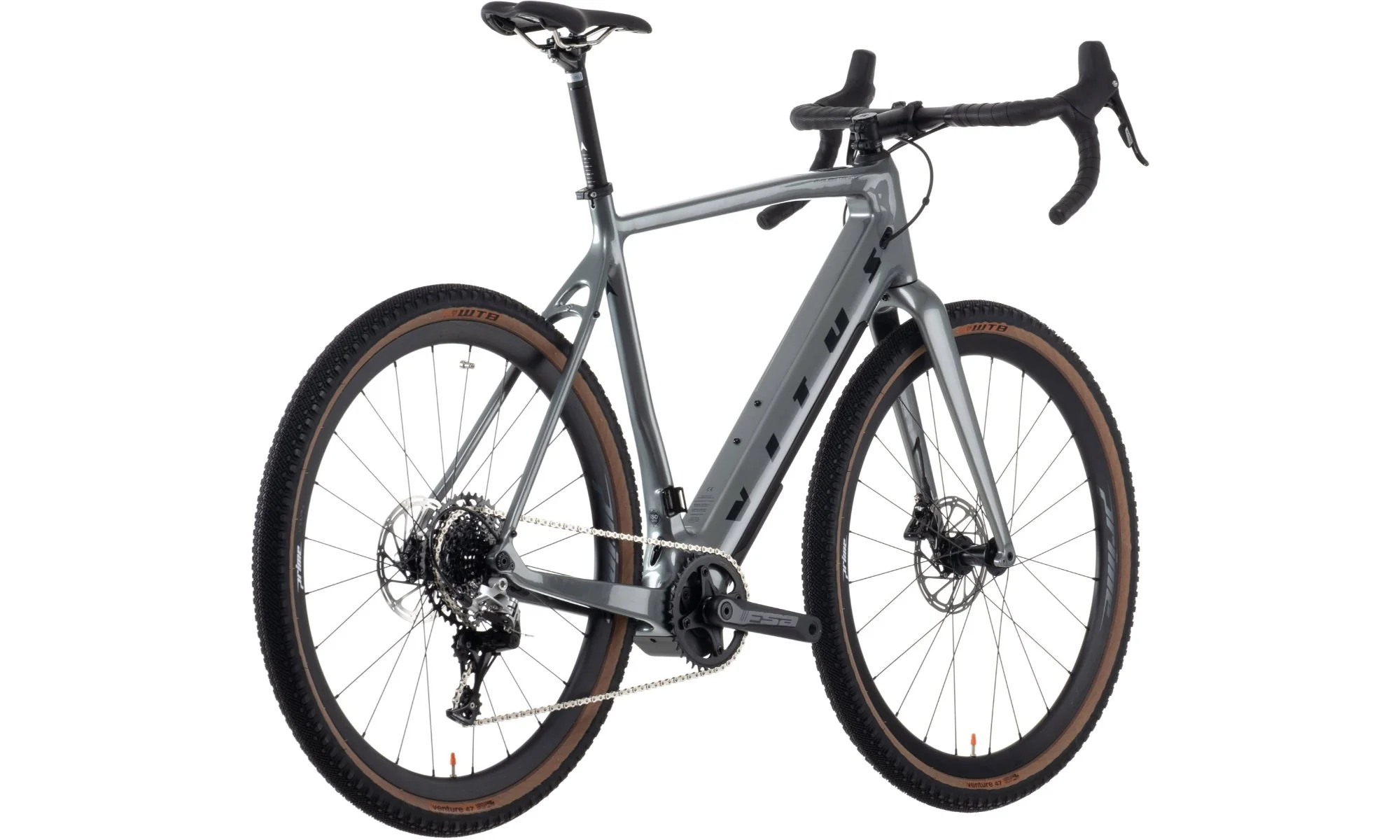

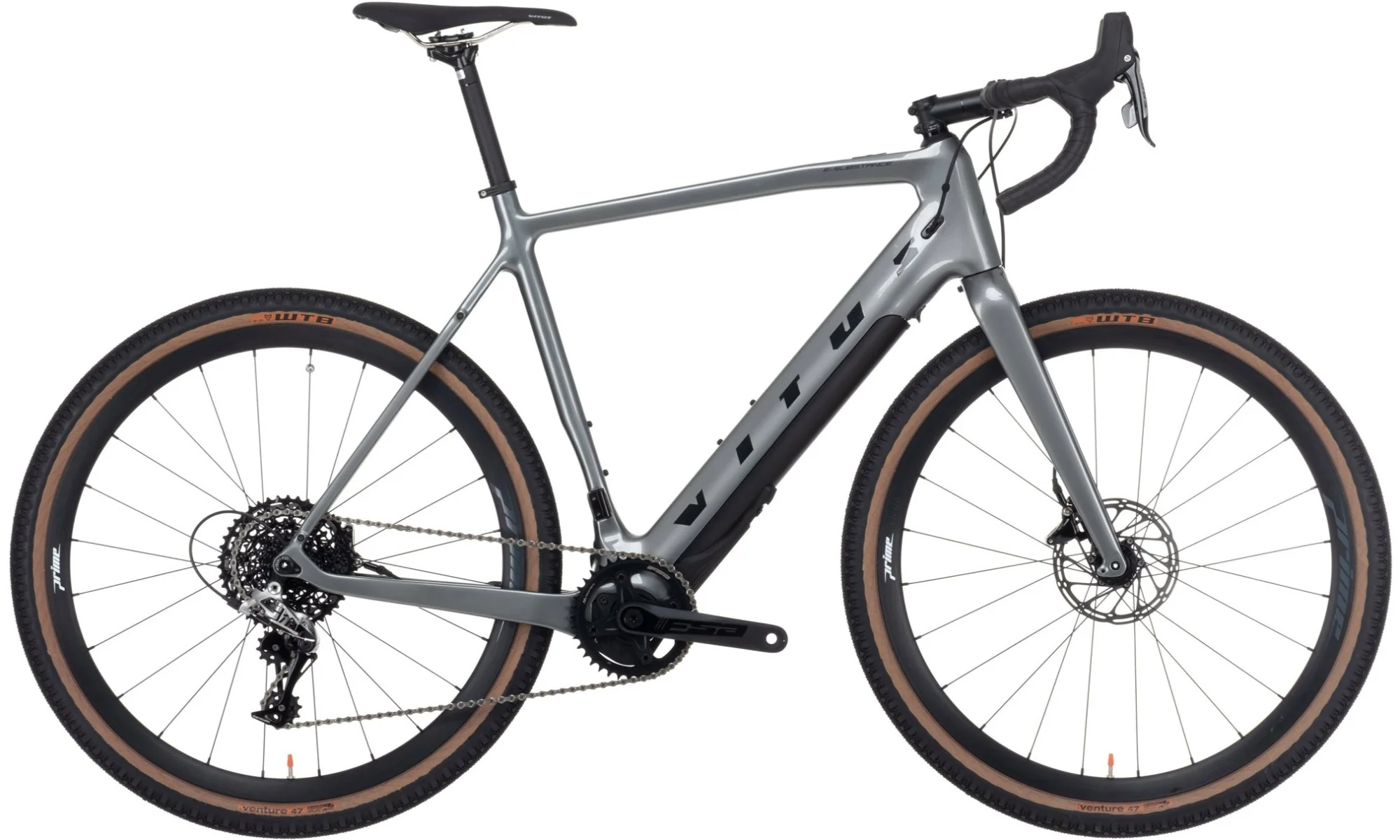

Vitus E-Substance Carbon E Gravel Bike (2021)

The perfect lightweight Carbon all-round adventure gravel bike featuring the award winning Fazua evation drive system

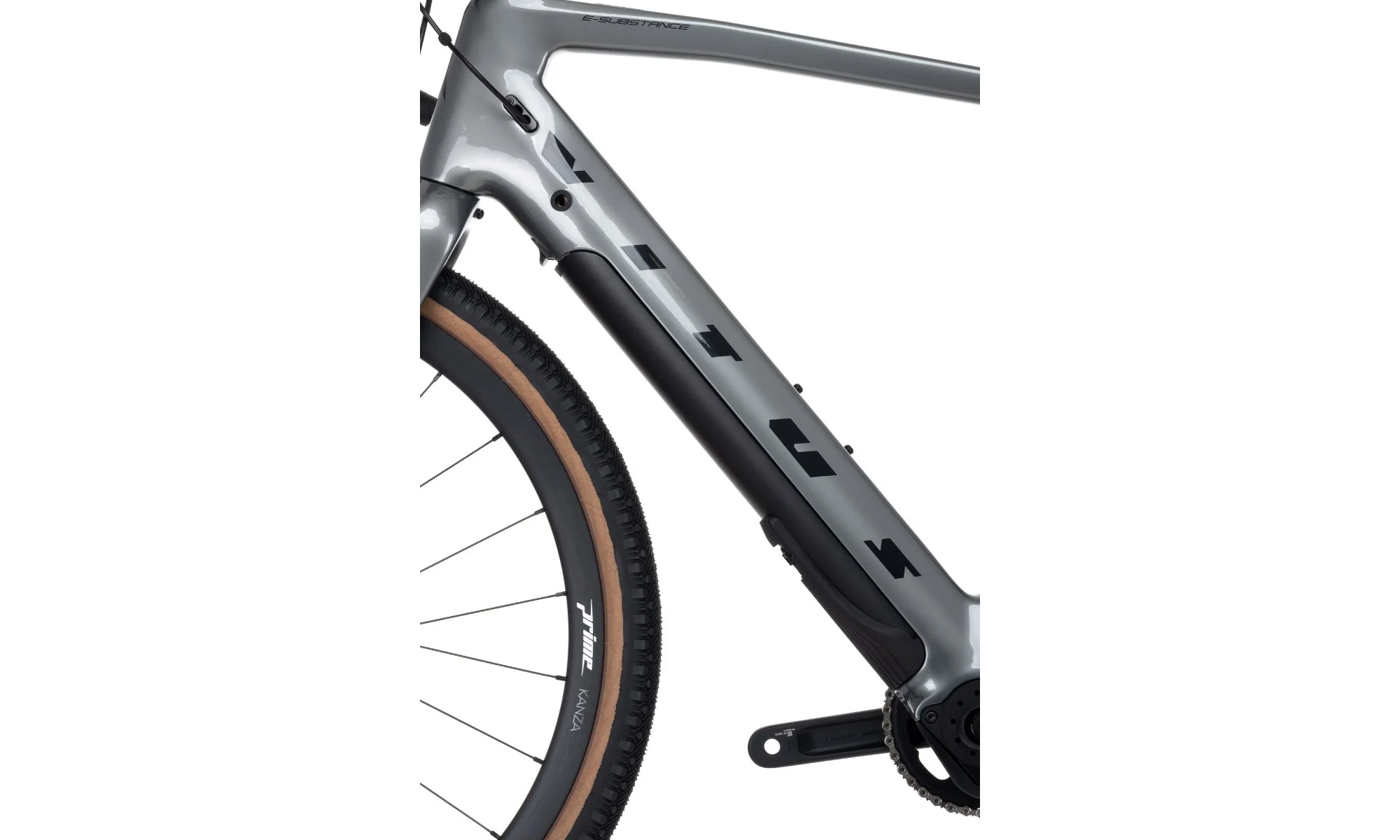

The E-Substance Carbon is built around a lightweight and versatile UD Carbon frame, with integrated electric drive system from Fazua - the lightest and most compact drive system in the industry. Based on the award winning Substance, with the addition of a mid-position motor results in a bike that handles every bit as well as a traditional adventure gravel bike, but with the added benefit of a little assistance.

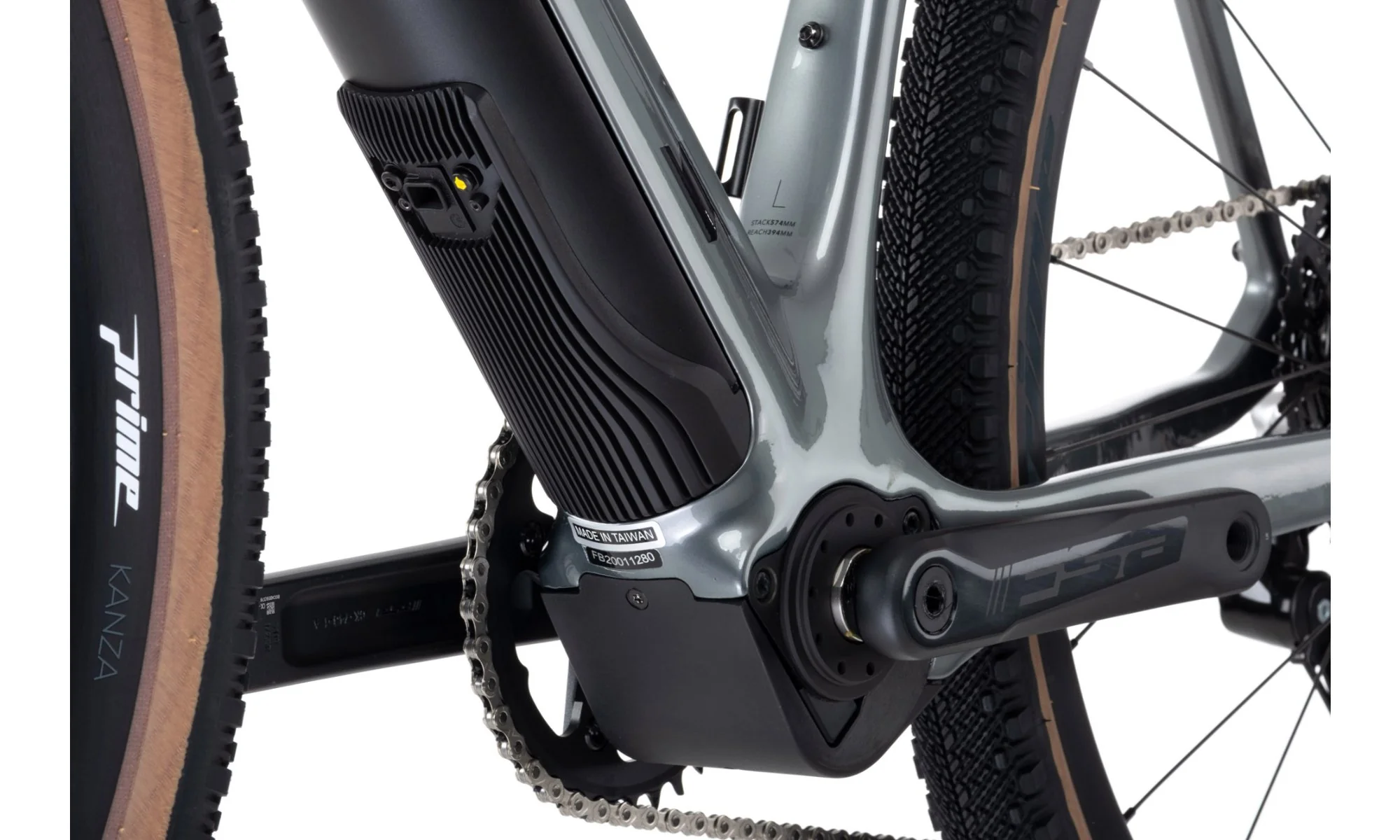

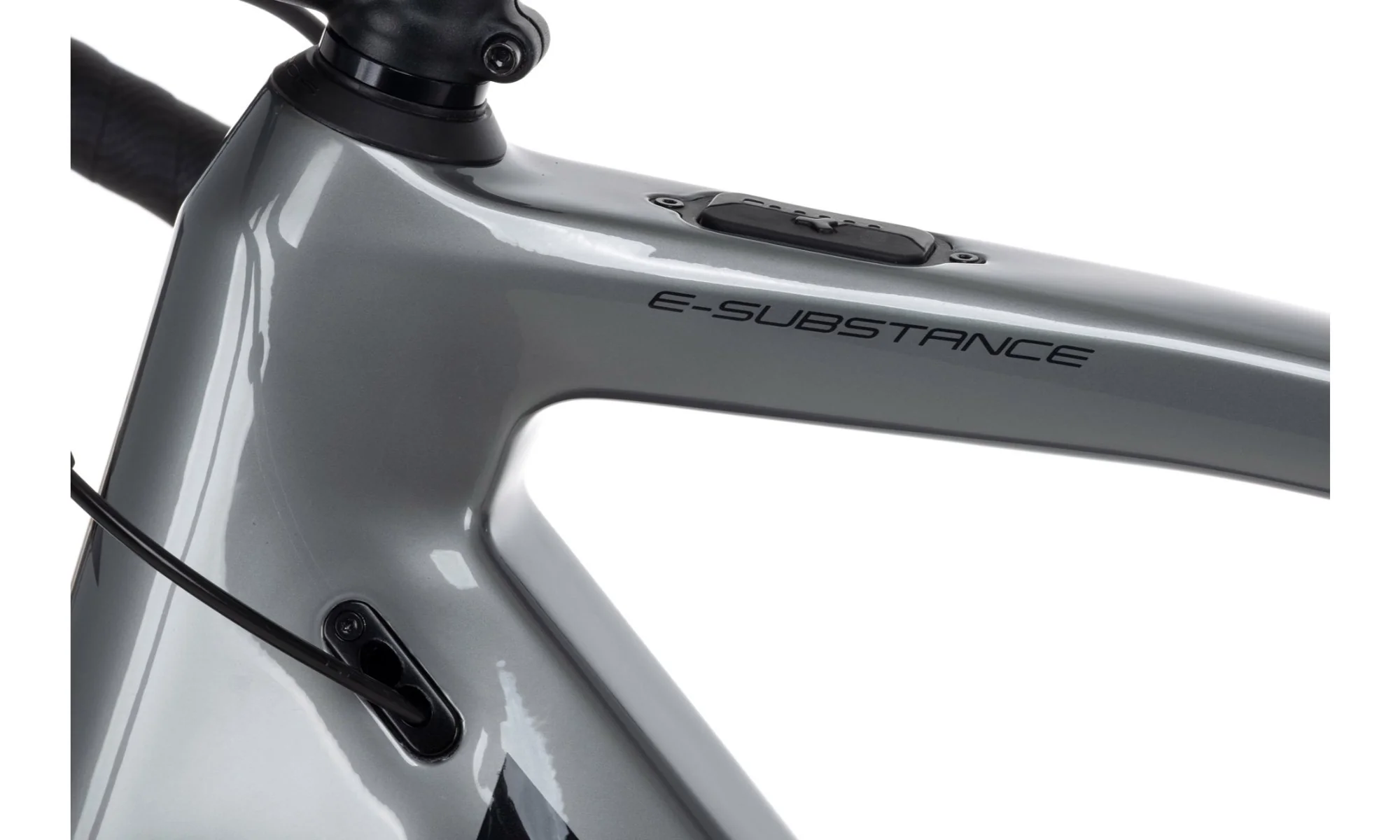

Fazua evation is the most compact drive system around, thanks to it's slim integrated design, meaning the E-Substance retains a classic look. A unique natural riding feel with no mechanical resistance above the legal speed limit makes the E-Substance perfect for anyone looking to enjoy a fun ride at any speed, on any terrain. 3 levels of assistance up to 250 watts allow you to tailor the ride to suit. Featuring the latest generation evation with integrated Top Tube controller.

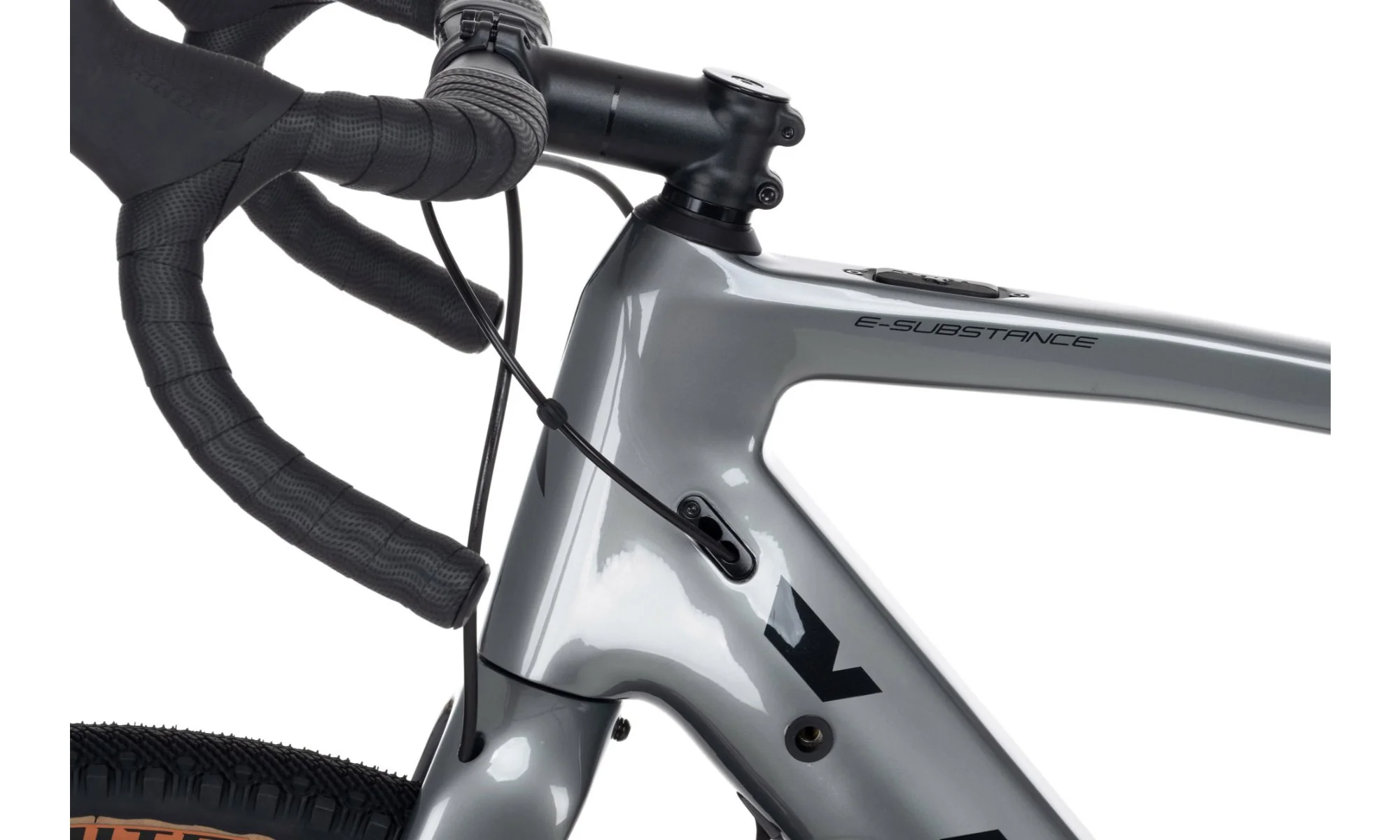

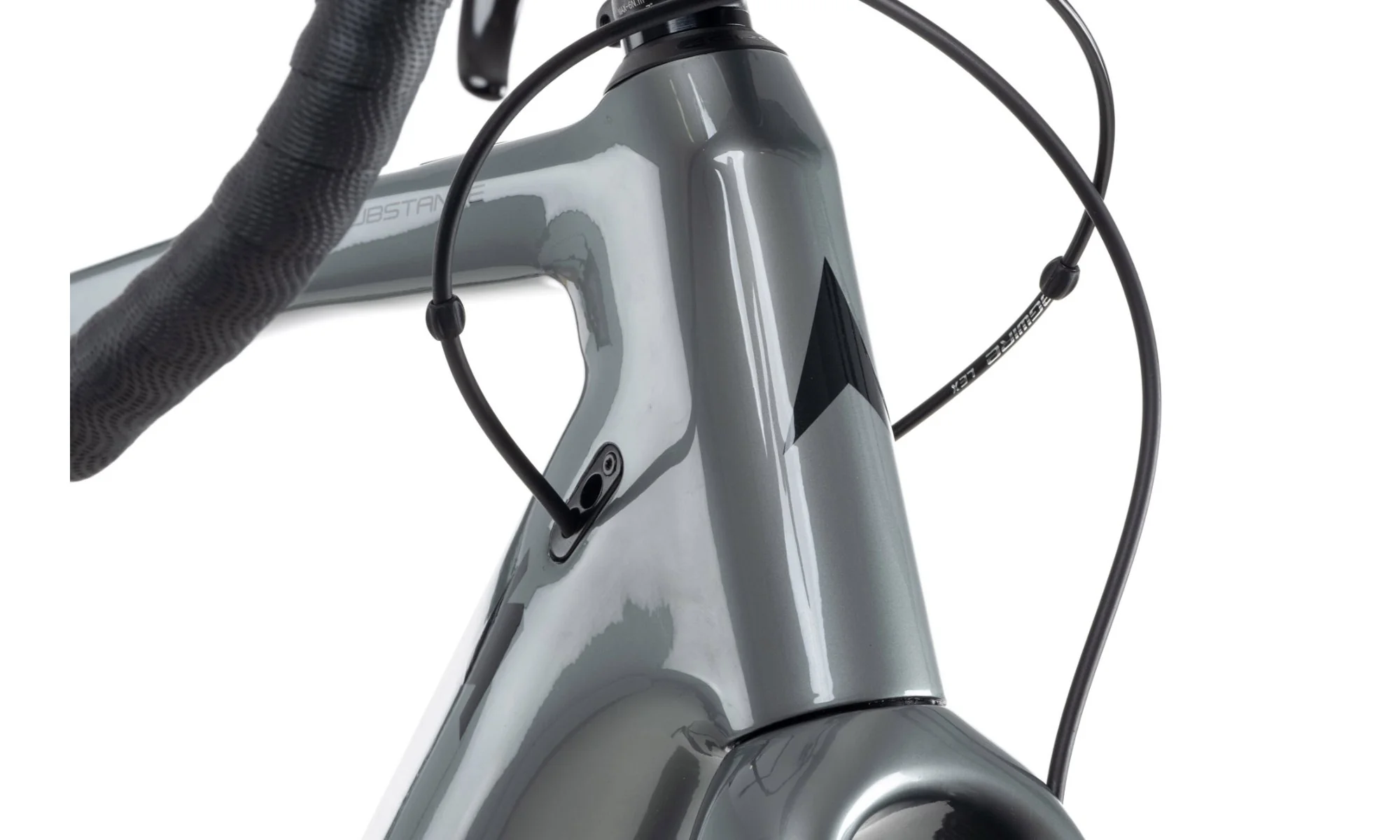

The frame features internal cable routing, and is paired to a full carbon fork with tapered steerer. Both frame and fork include mounts for mudguards and rear rack. Alongside the drive system is a SRAM Apex 1x11 speed hydraulic disc groupset with FSA chainset, with 'go-anywhere' gearing. WTB Venture TCS tubeless tyres come fitted to a gravel specific set of Prime Kanza 650b wheels

Aluminium frame featuring integrated Fazua evation drive system

3 Assistance levels

Assistance up to 25 km/h

Mid-drive motor, 250 Watt Max - 55 Nm

252 Wh battery

Approx 2hr charge time - UK Charger Plug

Fazua evation powered adventure gravel bike Drop handlebar explorer with electric assistance

Frame Material UD Carbon

Wheel Size 650b

Available Size S, M, L, XL

Colour Anthracite

Weight: Medium: 14.7kg



Specifications

FRAMEE-Substance Carbon - Fazua UD Carbon, Fazua evation Integration, Mudguard Mounts, Rack Mounts, 12mm x 142mm axle, Flat Mount	REAR RIMPrime Kanza 650b 650b, Tubeless Ready, 24 Hole
FORKSE-Substance Carbon UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts	FRONT HUBPrime Kanza 650b   100 x 12mm Front, Centre Lock
SHOCKN/A N/A	REAR HUB Prime Kanza 650b 142 x 12mm Rear, Centre Lock, XD Freehub
CHAINSETFSA CK 746 38T, 11 Speed, XS:170mm S:172.5mm M:172.5mm L:175mm	SPOKESPrime N/A
BOTTOM BRACKETN/A N/A	FRONT TYREWTB Venture TCS 650b x 47
FRONT DERAILLEURN/A N/A	REAR TYREWTB Venture TSC 650b x 47

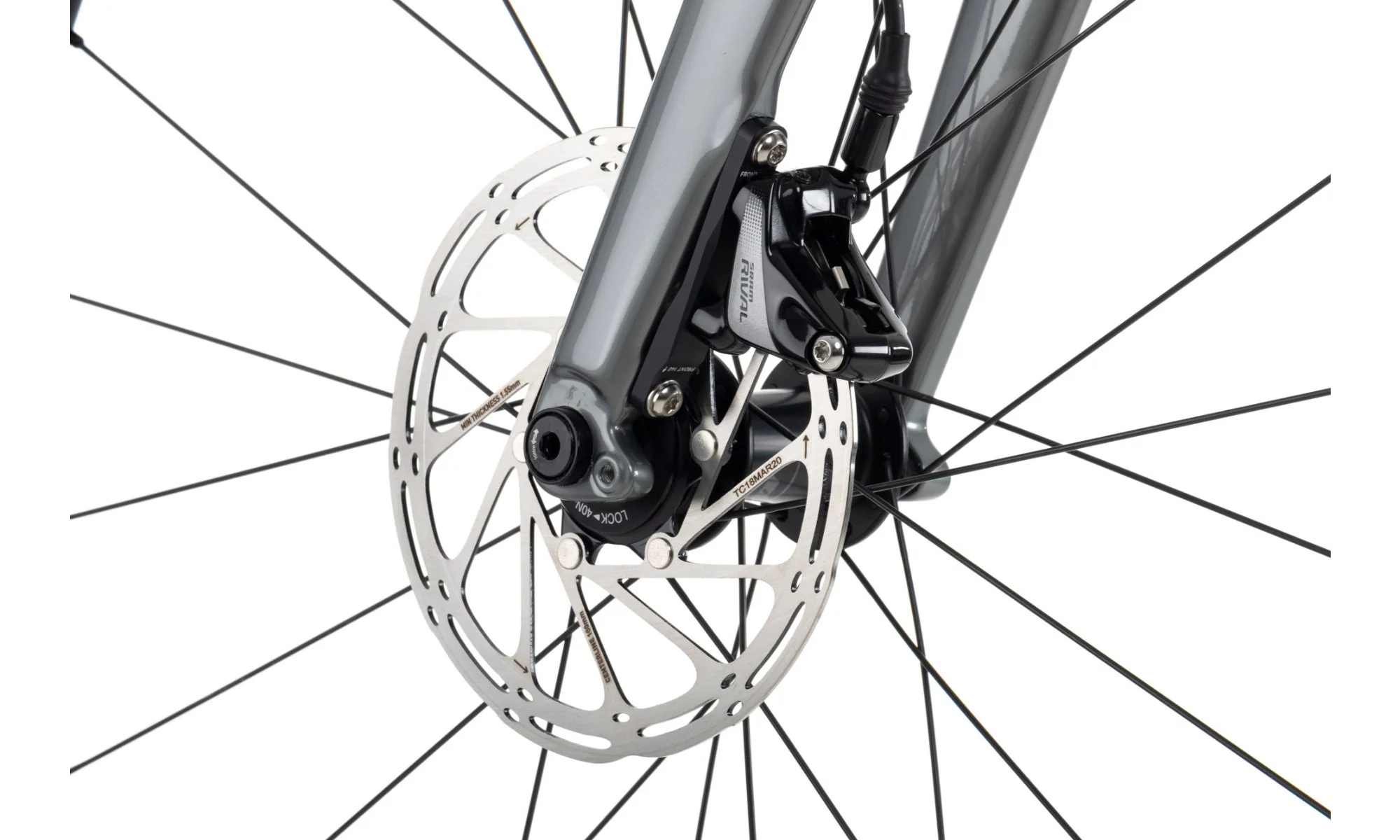

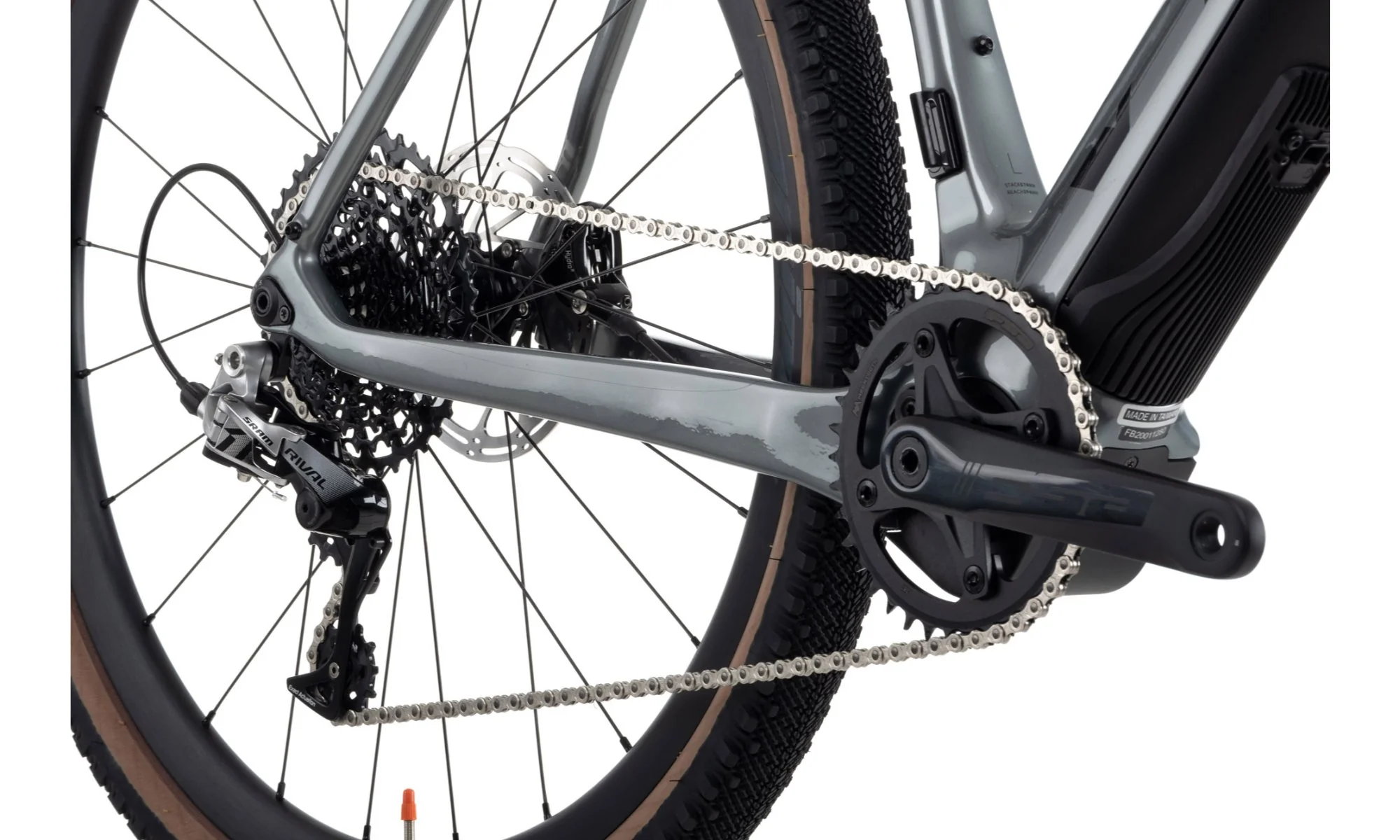

REAR DERAILLEURSRAM Apex 1 11 Speed, Long Cage	BRAKESSRAM Apex 1 Hydraulic Disc   ST-4720-R/L & BR-4770-F/R, Flat Mount

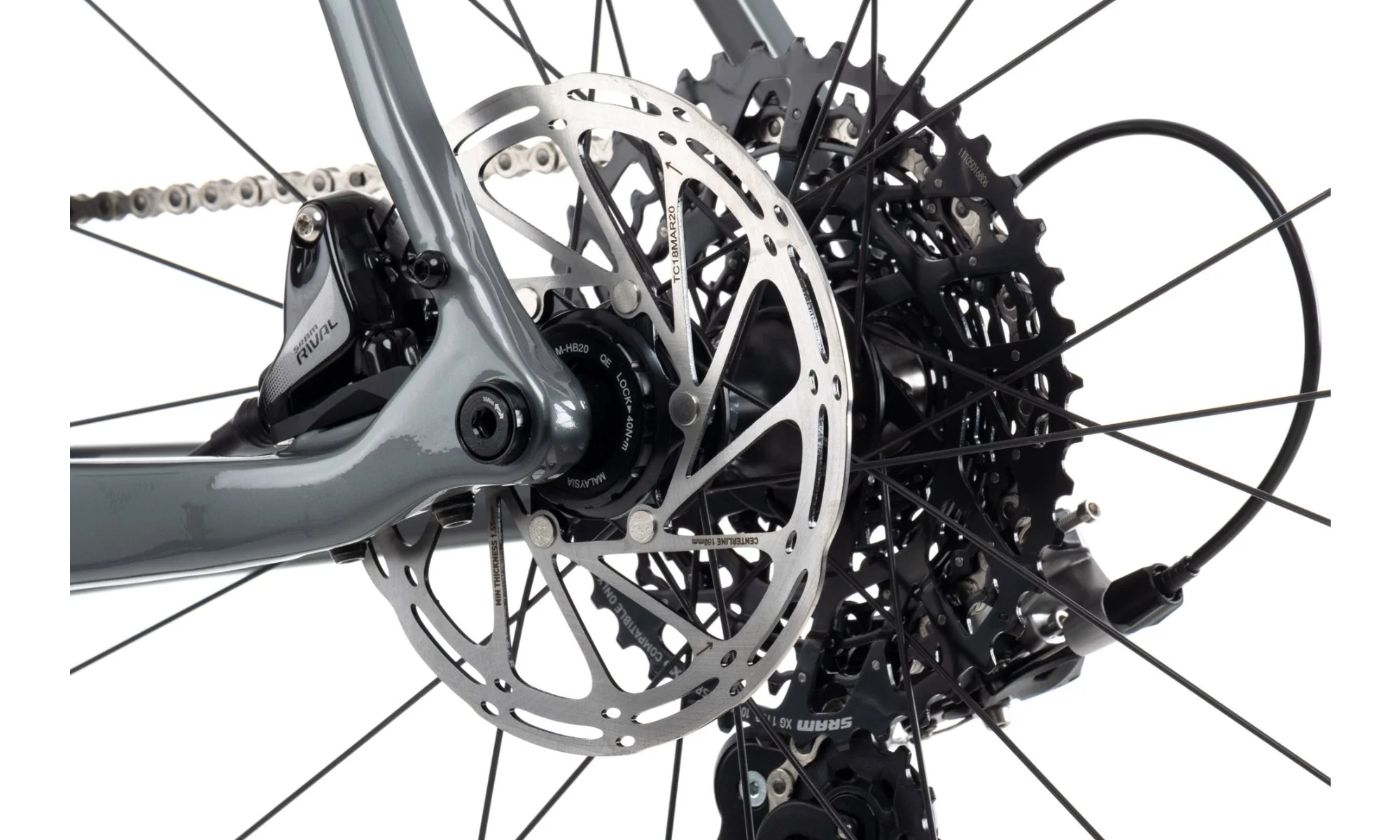

SHIFTERSSRAM Apex 1 Hydraulic Disc   ST-4720-R	BRAKE ROTORSSRAM Centreline   Front:160mm, Rear:160mm

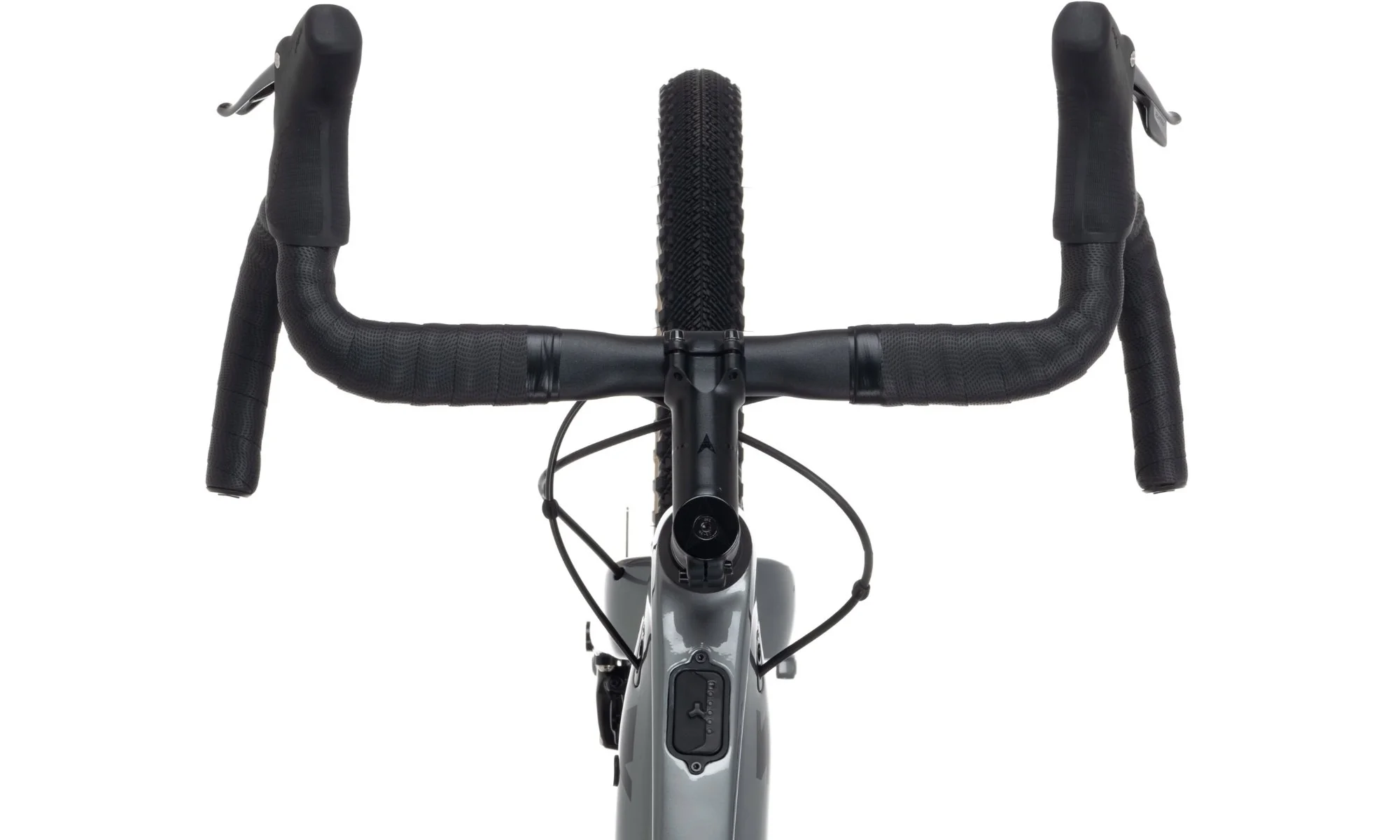

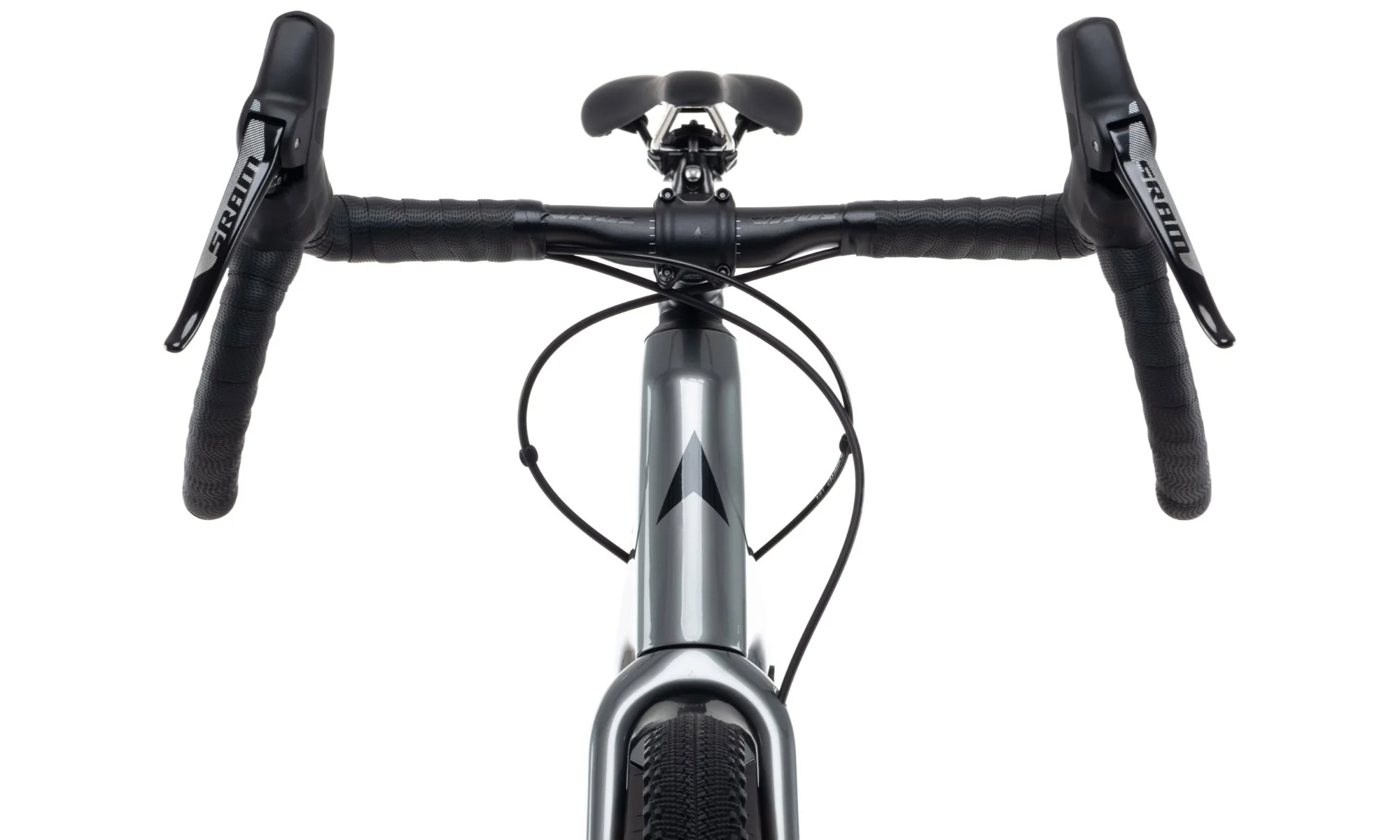

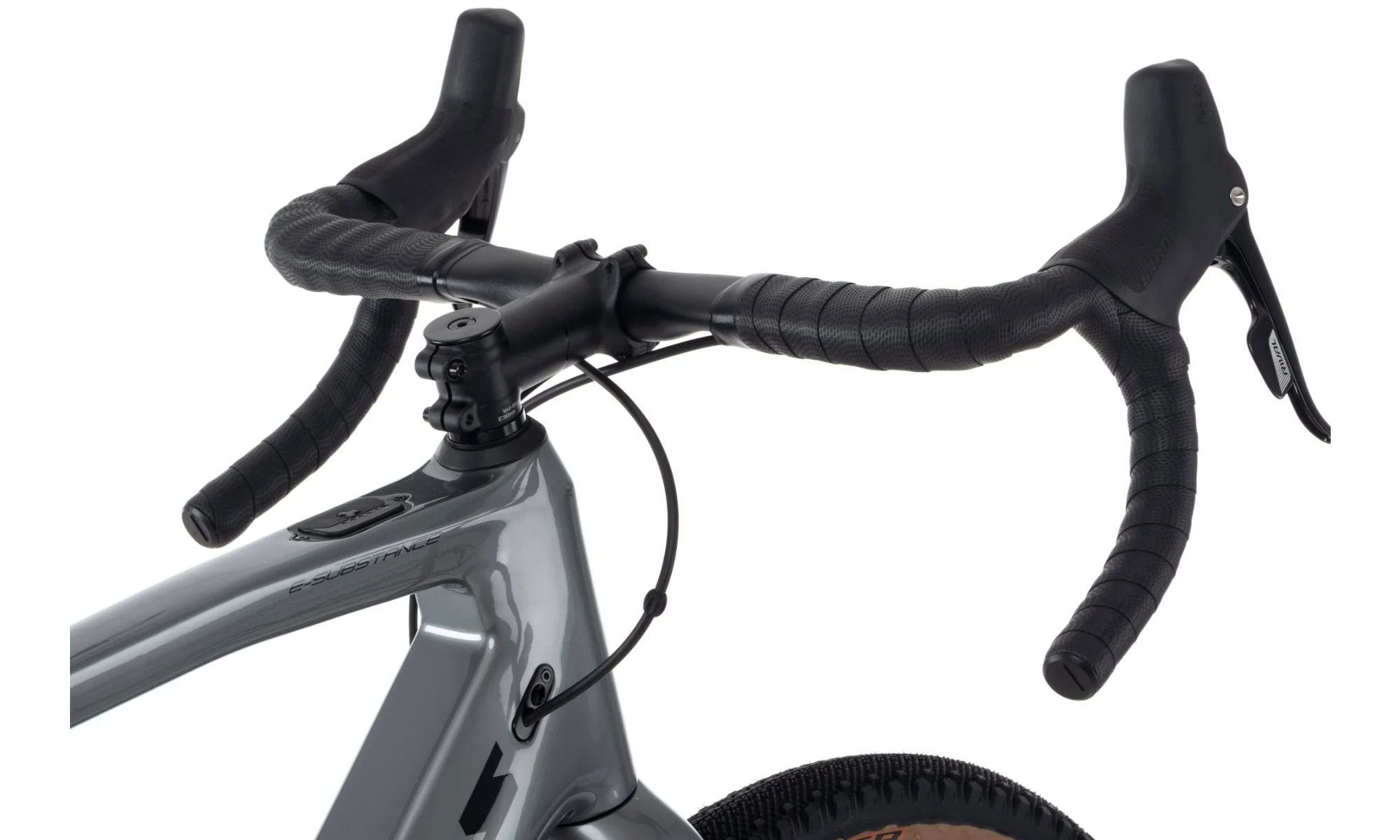

CASSETTESRAM XG-1150 10-42T	HANDLEBARSVitus Adventure 6061 Aluminium   16 Degree Flare, XS:380mm S:400mm M:420mm L:440mm
CHAINSRAM PC-1110   11 Speed with PowerLock	STEMVitus 6061 Aluminium   Bar Bore 31.8mm, +/- 7 degrees, XS:80mm S:90mm M:100mm L:110mm
MOTOR BATTERYFazua evation   FAZUA Evation engine battery 252Wh - 36v / 7ah	HEADSETACROS Aix-Low R3   Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
MOTOR COMPUTERN/A   N/A	GRIPSVitus SuperGrip   Anti Slip, Shock Proof

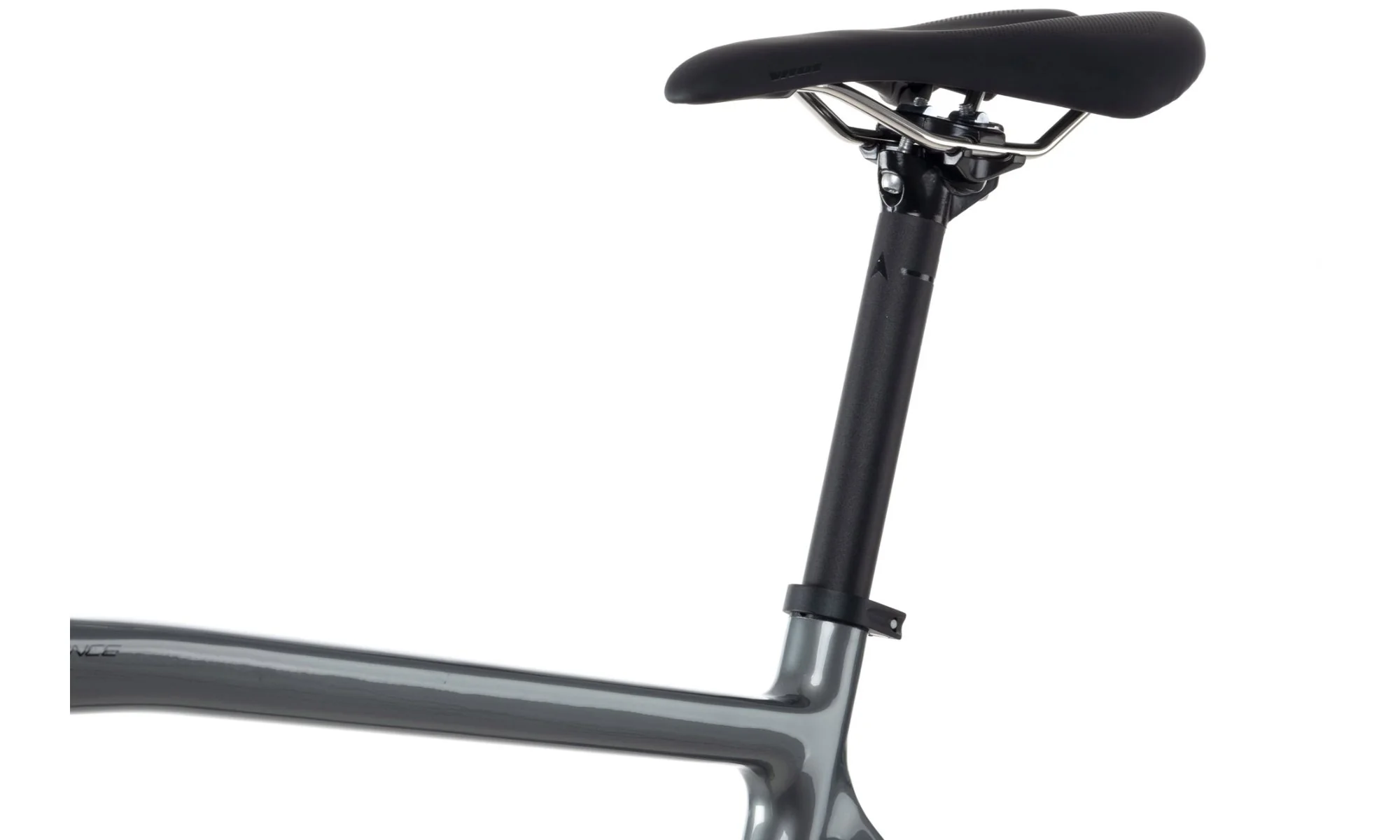

MOTOR SHIFTERFazua evation   Frame Integrated	SADDLEVITUS   Ti Rail

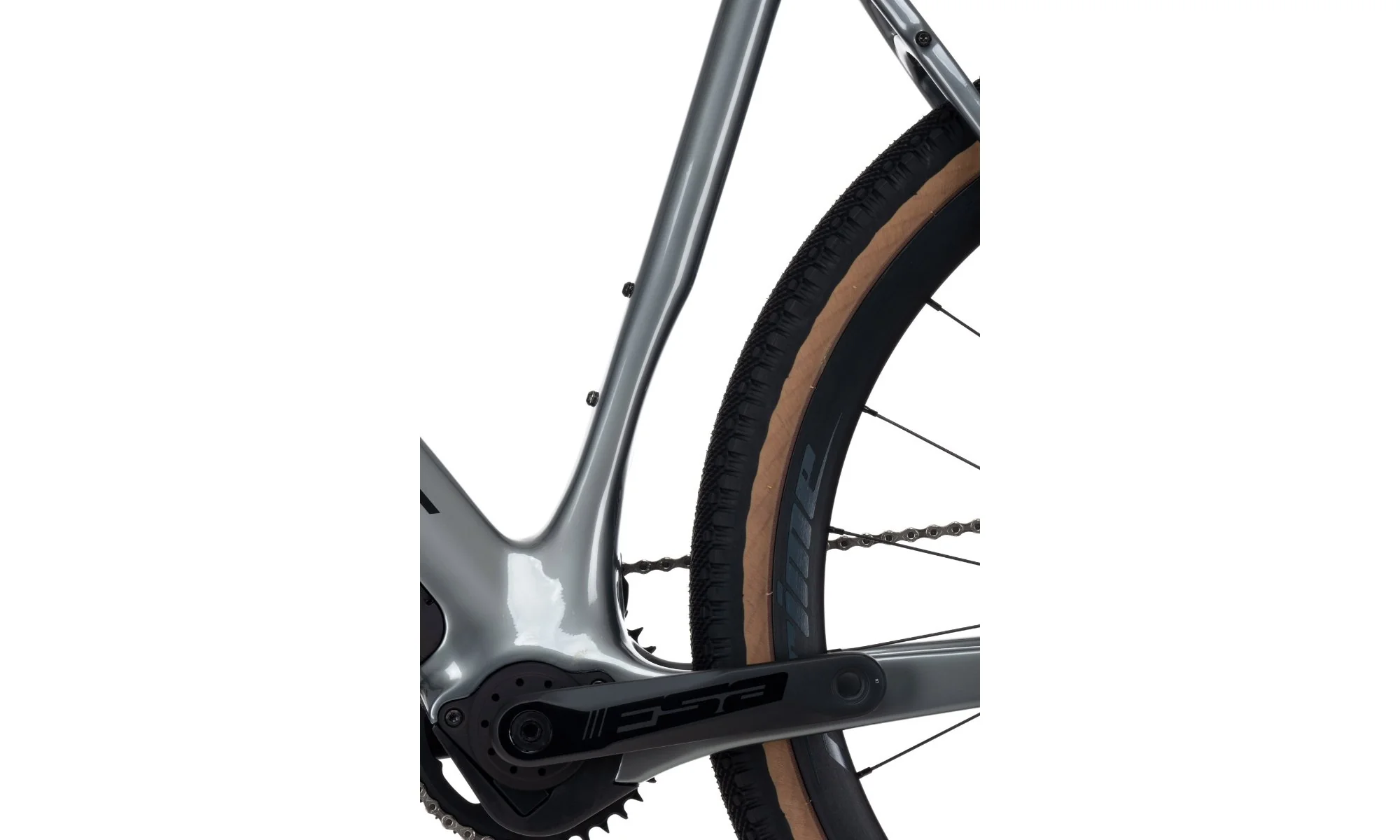

MOTOR DRIVE UNITFazua evation   Mid Position Motor	SEATPOSTVITUS Aluminium   27.2mm, 15mm Offset, 350mm
FRONT RIMPrime Kanza 650b   650b, Tubeless Ready, 24 Hole	SEATCLAMPAluminium   N/A
