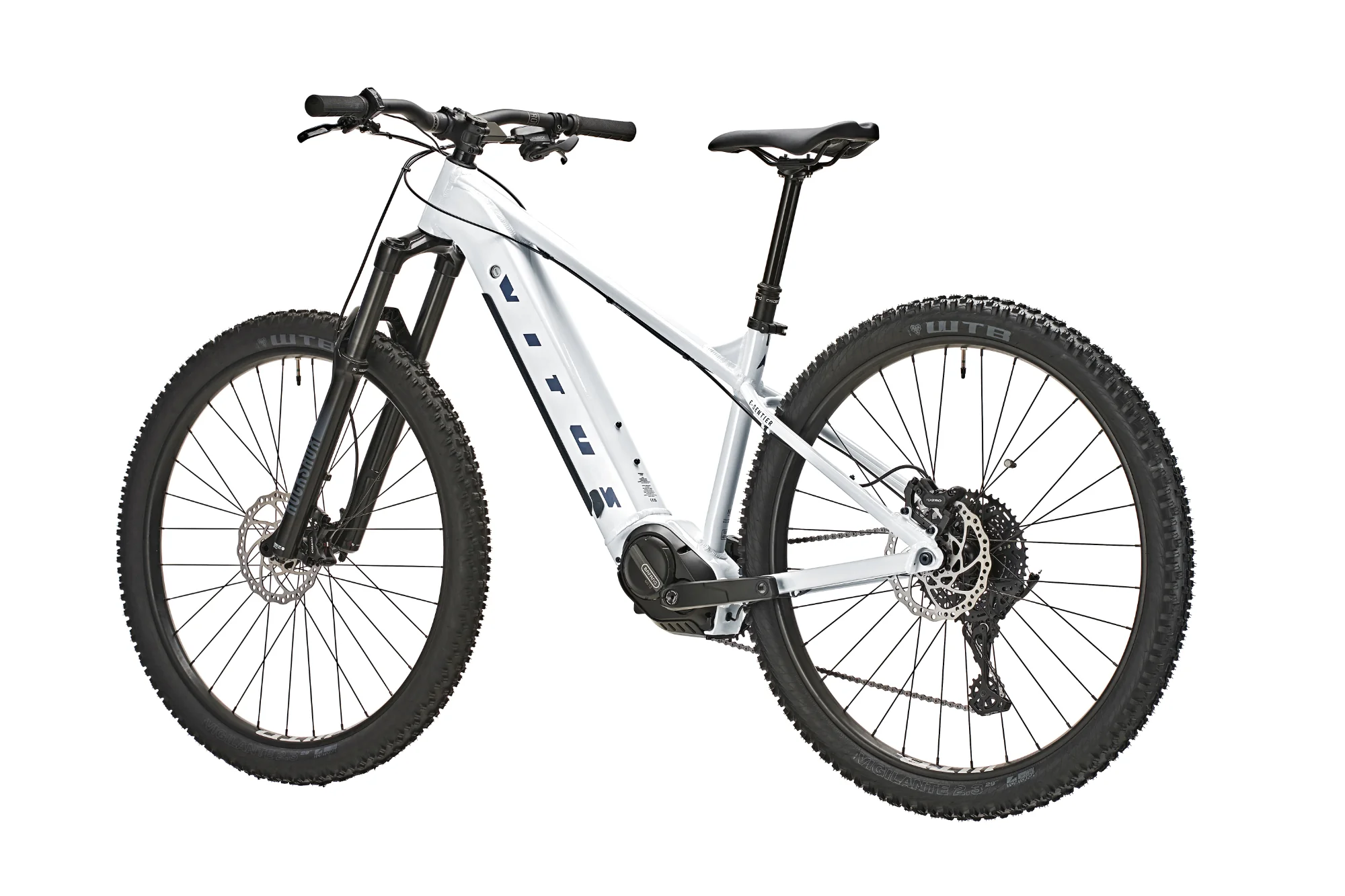

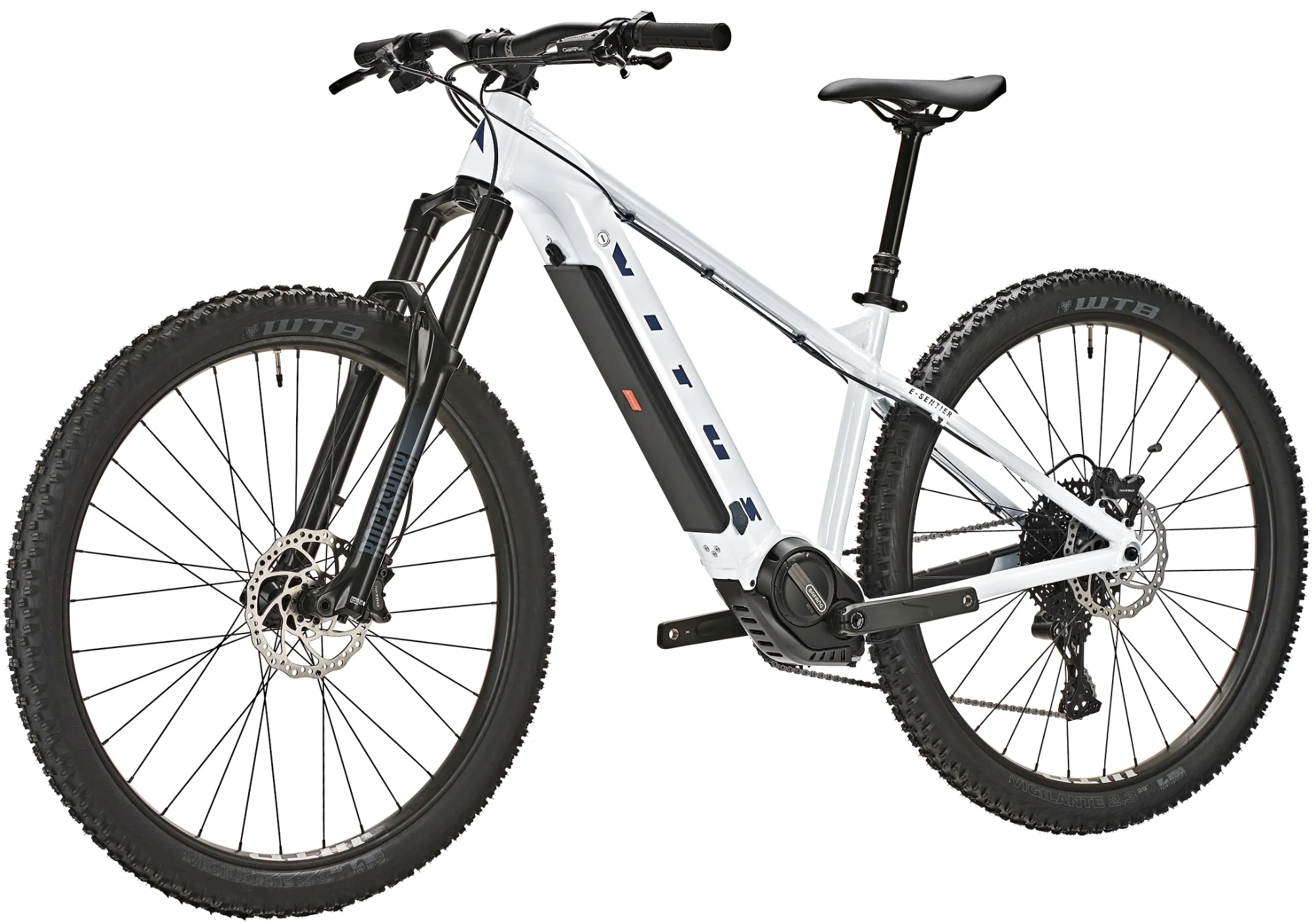

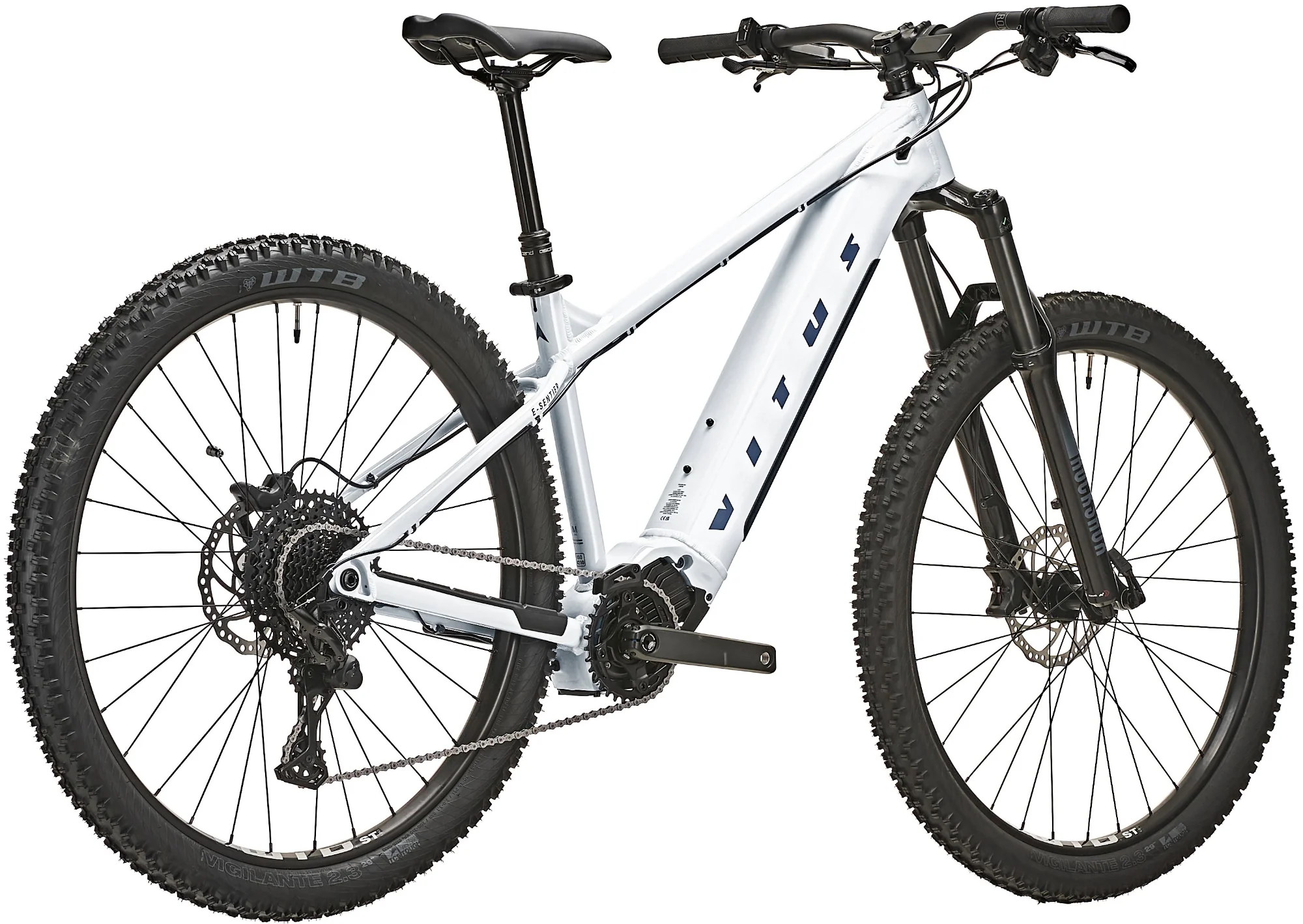

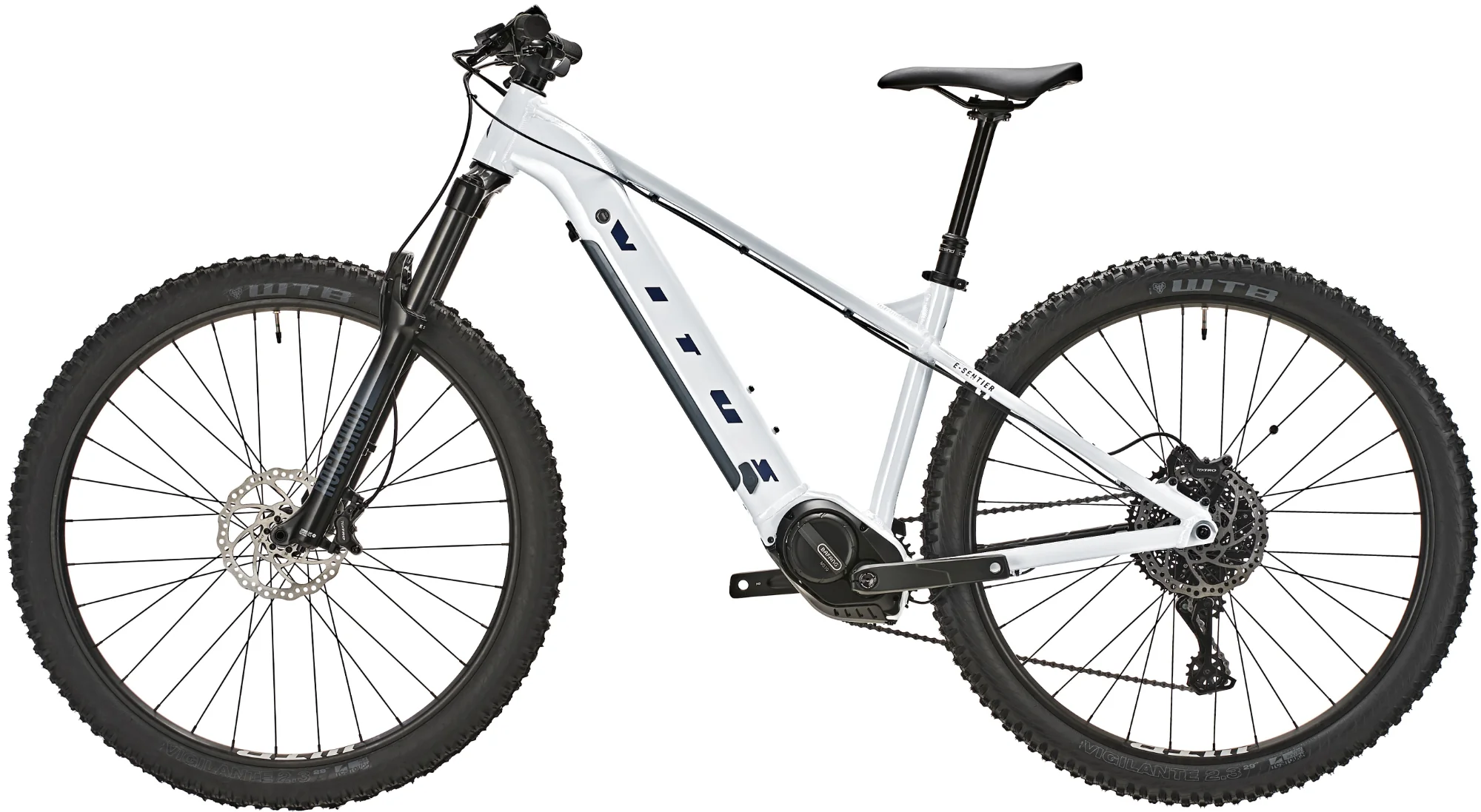

Vitus E-Sentier Hardtail Mountain Bike
Engineered for fast-paced trail riding, the Vitus E-Sentier combines the agility and fun-loving nature of a traditional hardtail with the power of the Bafang M510 motor system.
At the heart of the E-Sentier is the Bafang M510 motor system with a maximum torque of 95Nm. We developed a close partnership with Bafang and tuned the system to perform exactly to our needs, effectively cherry-picking the best features and incorporating them into our drive unit.
The M510 system is powered by an integrated 630Wh battery and a display with five custom power modes — Eco, Eco-plus, Trail, Boost, and Race — giving the rider maximum options for adjusting range and on-trail performance.
Spec wise, the Microshift Advent X 1x10 speed groupset combined with four piston Tektro disc brakes and a 140mm RockShox 35 Silver TK fork gives the rider the perfect balance of versatility and control.
When it comes to wheels, size matters – but it's all about finding the perfect match for your riding style. For our smaller riders cruising on the size small, we've dialled in the agility with 27.5" wheels. These wheels bring an extra dose of responsiveness, making quick turns and navigating tight spots a breeze. It's all about snappy handling and a nimble feel that suits riders looking to conquer trails with precision.
For medium, large and X-large riders, we've rolled out the big guns – 29" wheels. These larger wheels bring a whole new level of momentum and stability to the game. The 29ers effortlessly roll over obstacles, providing a smoother ride that eats up rough terrain. It's all about maximising speed, maintaining momentum, and conquering the trail with confidence.
The E-Sentier's wheel size optimisation ensures that every rider, regardless of stature, gets the best possible ride. Choose your size and own the trail.
- RockShox 35 Silver TK suspension fork
- Smooth Bafang M510 motor produces 250W max power and 95Nm torque
- Long range 630Wh internal battery
- Wide range Microshift Advent X 1x10 speed drivetrain

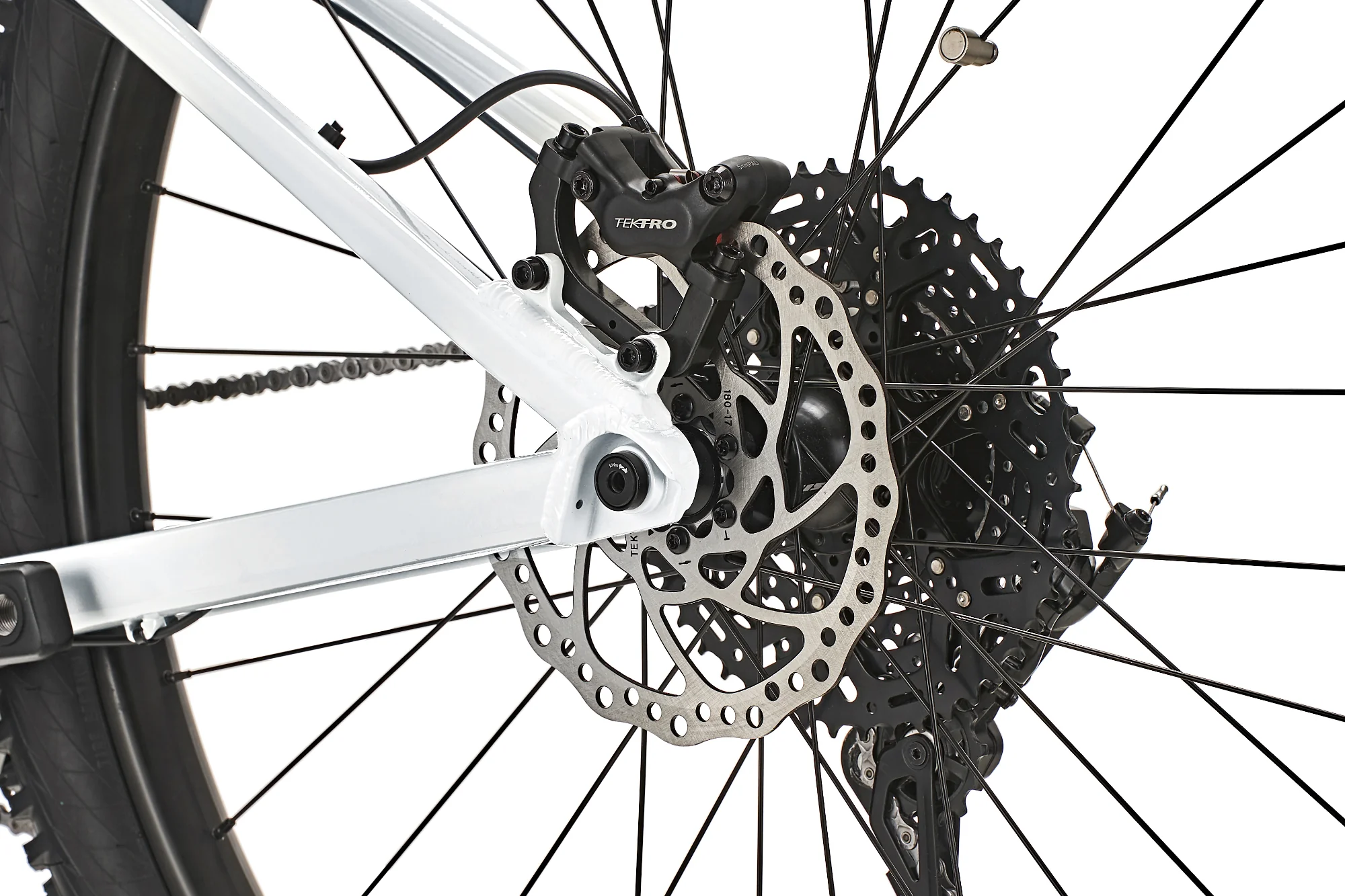

- Powerful Tektro 4 piston hydraulic disc brakes
- Tubeless ready WTB rims with grippy WTB Vigilante Tyres
E-Sentier Electric Hardtail PlatformInternal battery frame design with Bafang M510 drive unit, engineered for fast-paced trail riding |
Frame Material6061-T6 Aluminium |
Suspension Travel (MTB Only)140mm Front |
Wheel SizeS: 27.5" Front & Rear, M/L/XL: 29" Front & Rear |
Available SizeS, M, L, XL |
ColourCool Grey |
Weight:Medium: 23.5kg (tubeless setup) |
Specifications
 FRAMEE-Sentier 6061-T6 Alloy S: 27.5", M/L/XL: 29", Internal battery, Internal cable routing, post mount disc brake mounts, Boost hub spacing - 148mm x 12mm thru axle, Bafang M510 compatible. Axle Specifications: 176mm Length, 14.5mm Thread Length, M12xP1.0 Thread Pitch |
 REAR RIMWTB ST i30 TCS 2.0 S: 27.5", M/L/XL: 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed |

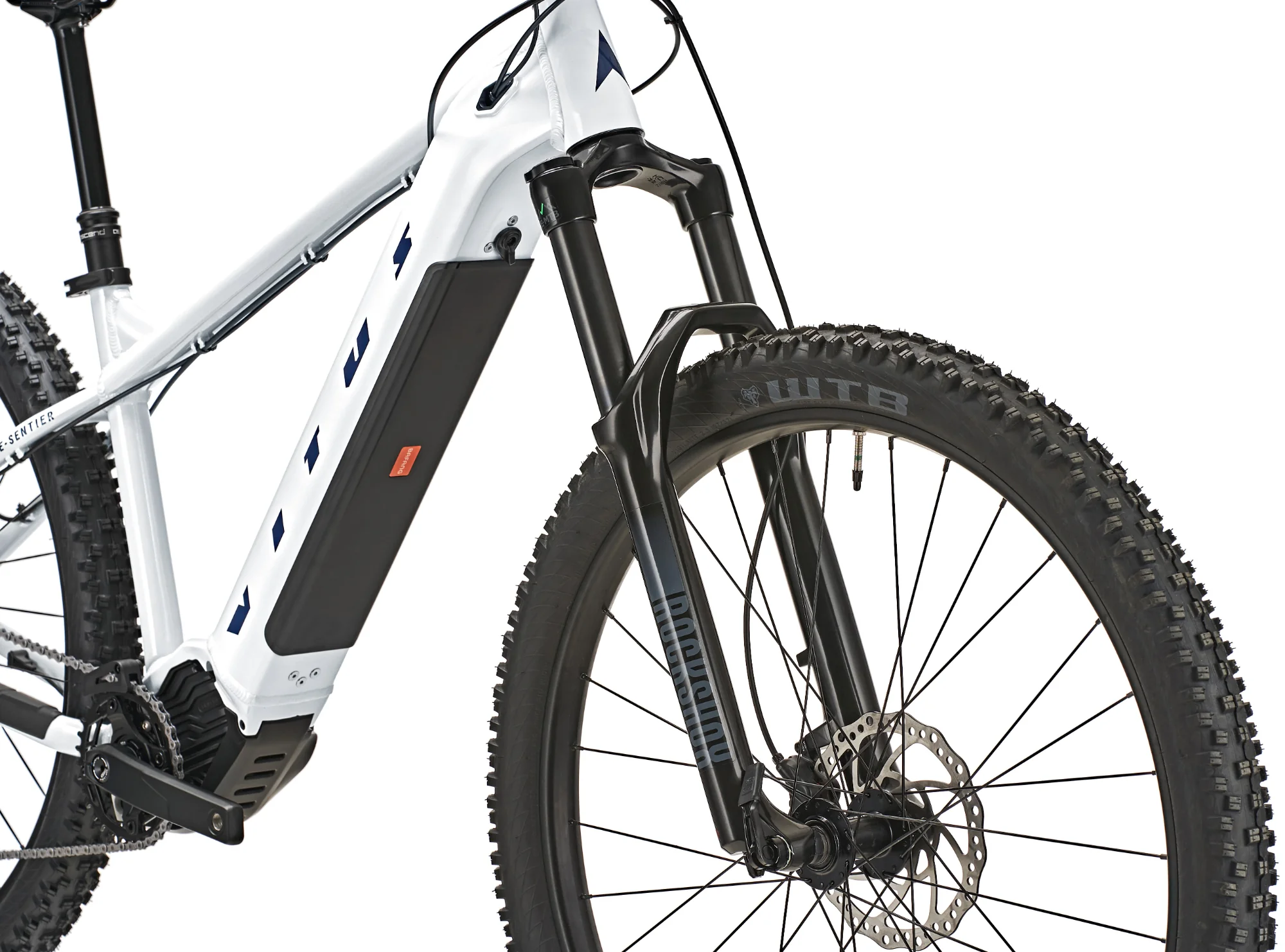

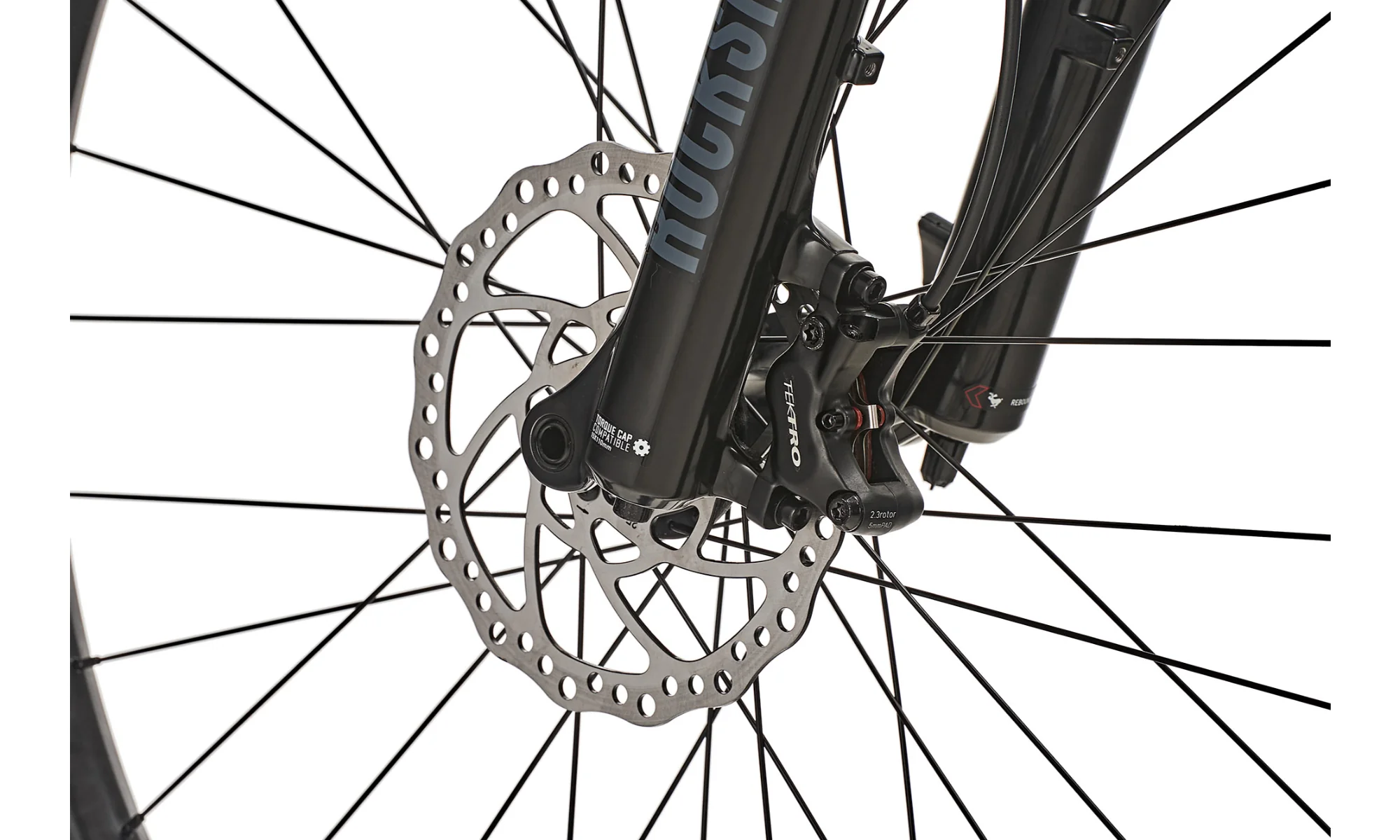

 FORKSRockShox 35 Silver TK S: 27.5", M/L/XL: 29", 140mm travel, 110mm x 15mm axle, 1-1/8" upper tapered to 1.5" lower steerer tube |
 FRONT HUBVitus KT MS6F
32H, 6 Bolt Disc Fitment, 110mm x 15mm |
 SHOCKN/A |
 REAR HUB Vitus KT H5ER-SH 32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm |

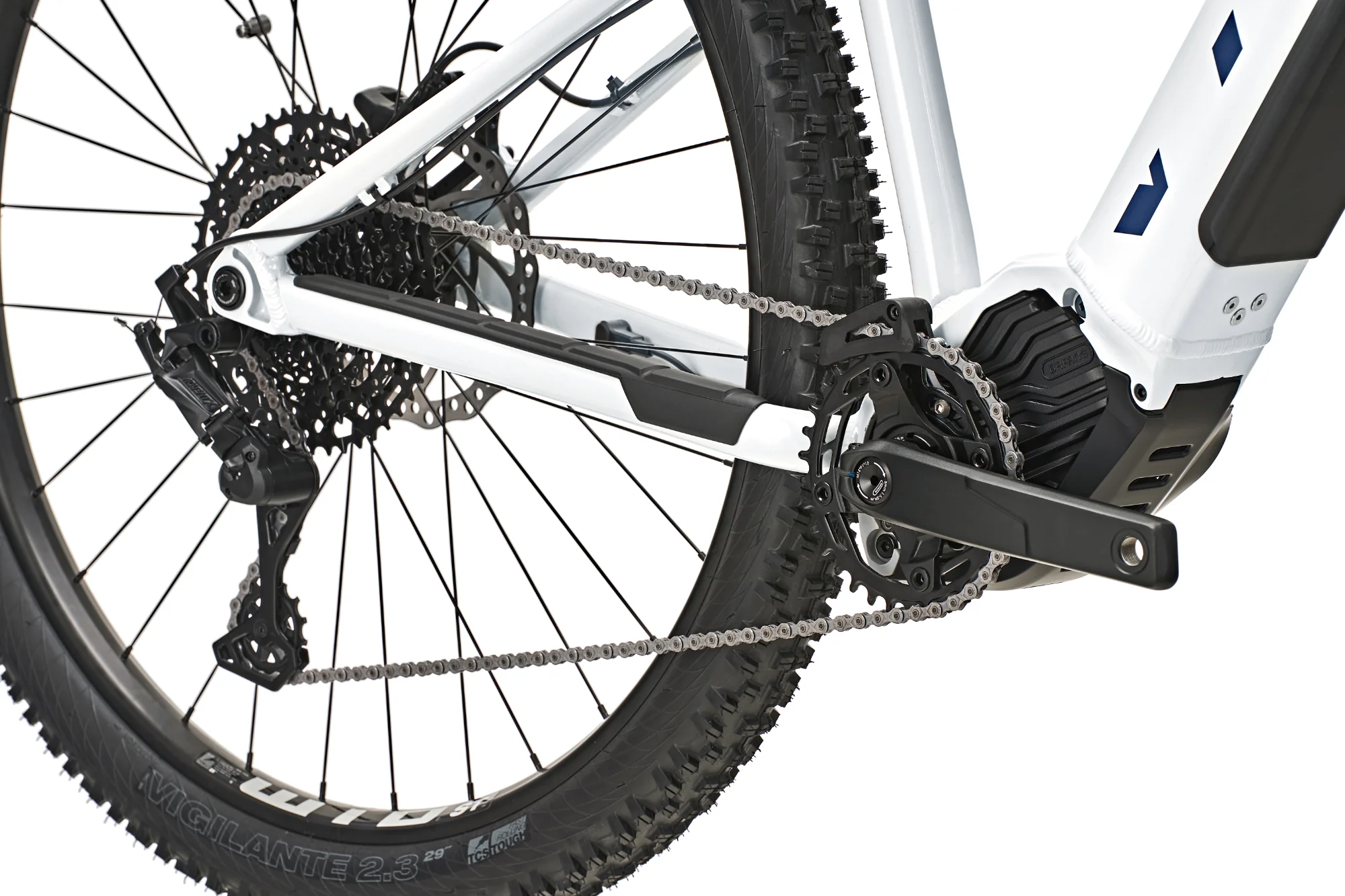

 CHAINSETBafang 34T Narrow Wide Chainring, 170mm Crank Length, 53mm Chain Line |
 WHEELSETWTB ST i30 TCS 2.0 rims on Vitus KT hubs S: 27.5" Front & Rear, M/L/XL: 29" Front & Rear, 32H, 6 Bolt, Boost 110mm x 15mm Front & 148mm x 12mm Rear Hub Spacing, Tubeless Ready |
 BOTTOM BRACKETN/A N/A |
 FRONT TYREWTB Vigilante TCS S: 27.5" x 2.3", M/L/XL: 29" x 2.3", Folding Bead, Tough High-Grip Compound |
 FRONT DERAILLEURN/A |
REAR TYREWTB Vigilante TCS S: 27.5" x 2.3", M/L/XL: 29" x 2.3", Folding Bead, Tough High-Grip Compound |
 REAR DERAILLEURMicroshift Advent X 10 Speed, Medium Cage |
 Post Mount, Four Piston Caliper |
 10 Speed, Trigger Shifter |
180mm Front & Rear, 6 Bolt Hub Fitment |
 CASSETTEMicroshift Advent X H-Series 10 Speed, CS-H104, 11-48T Range |

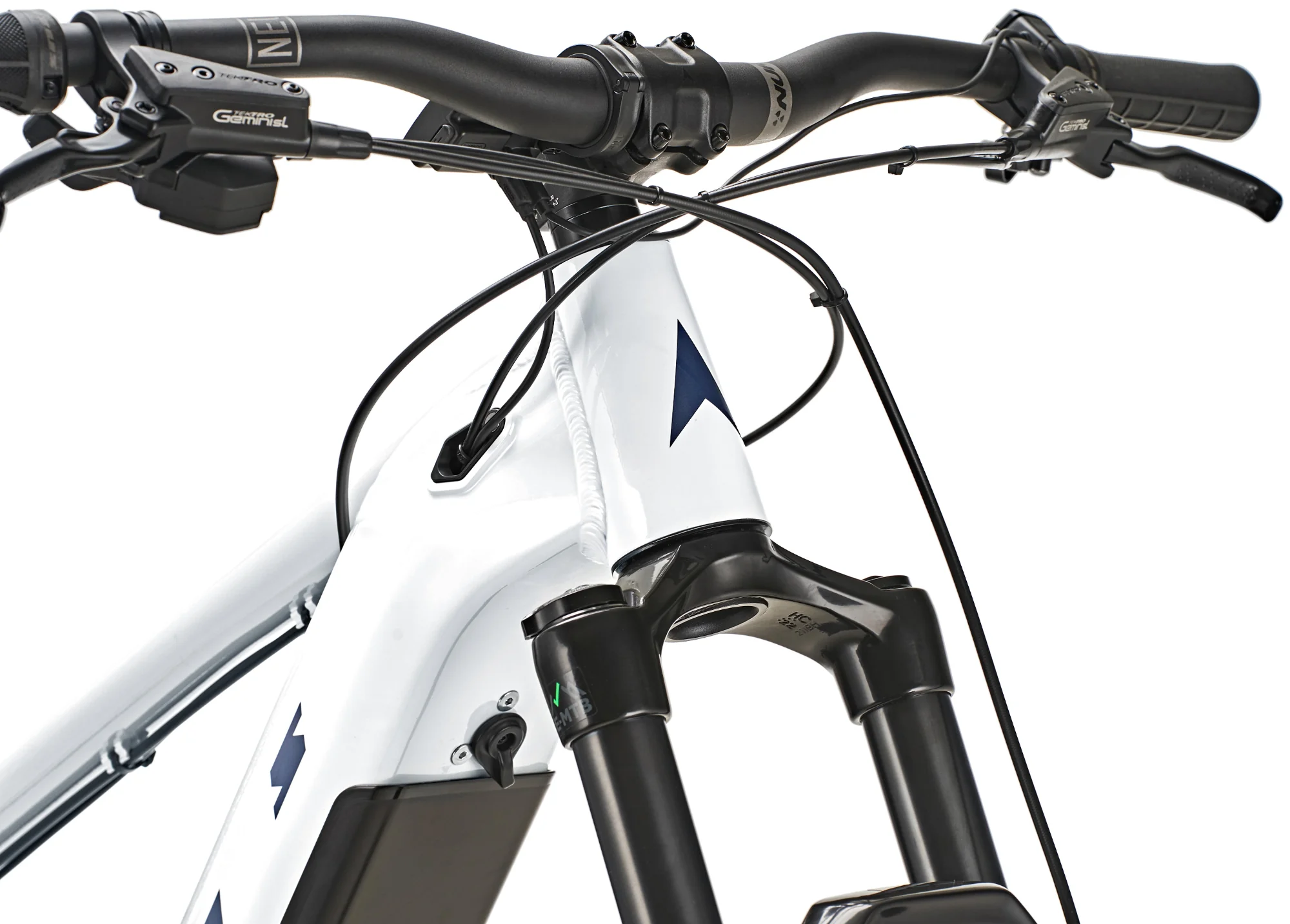

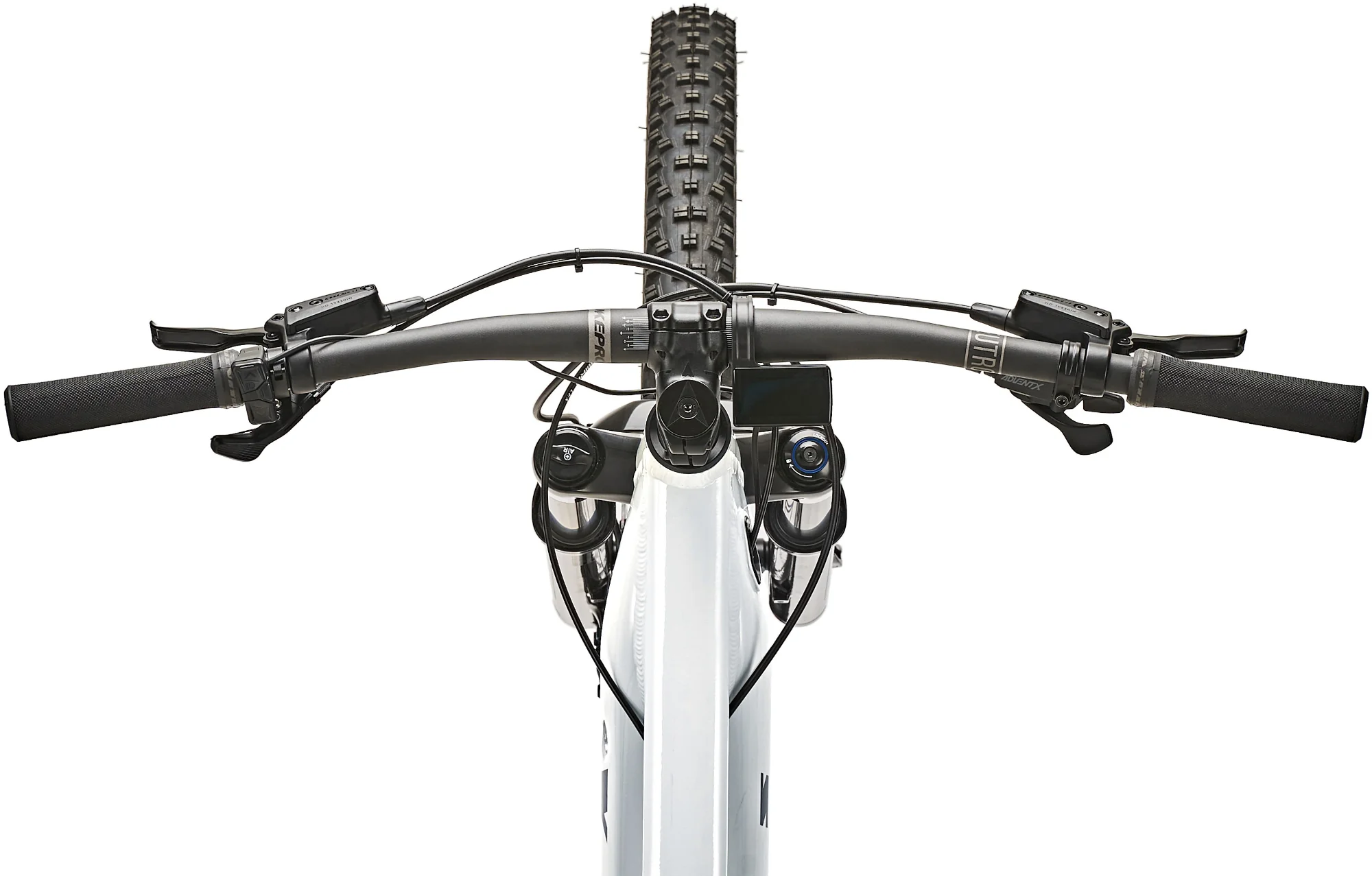

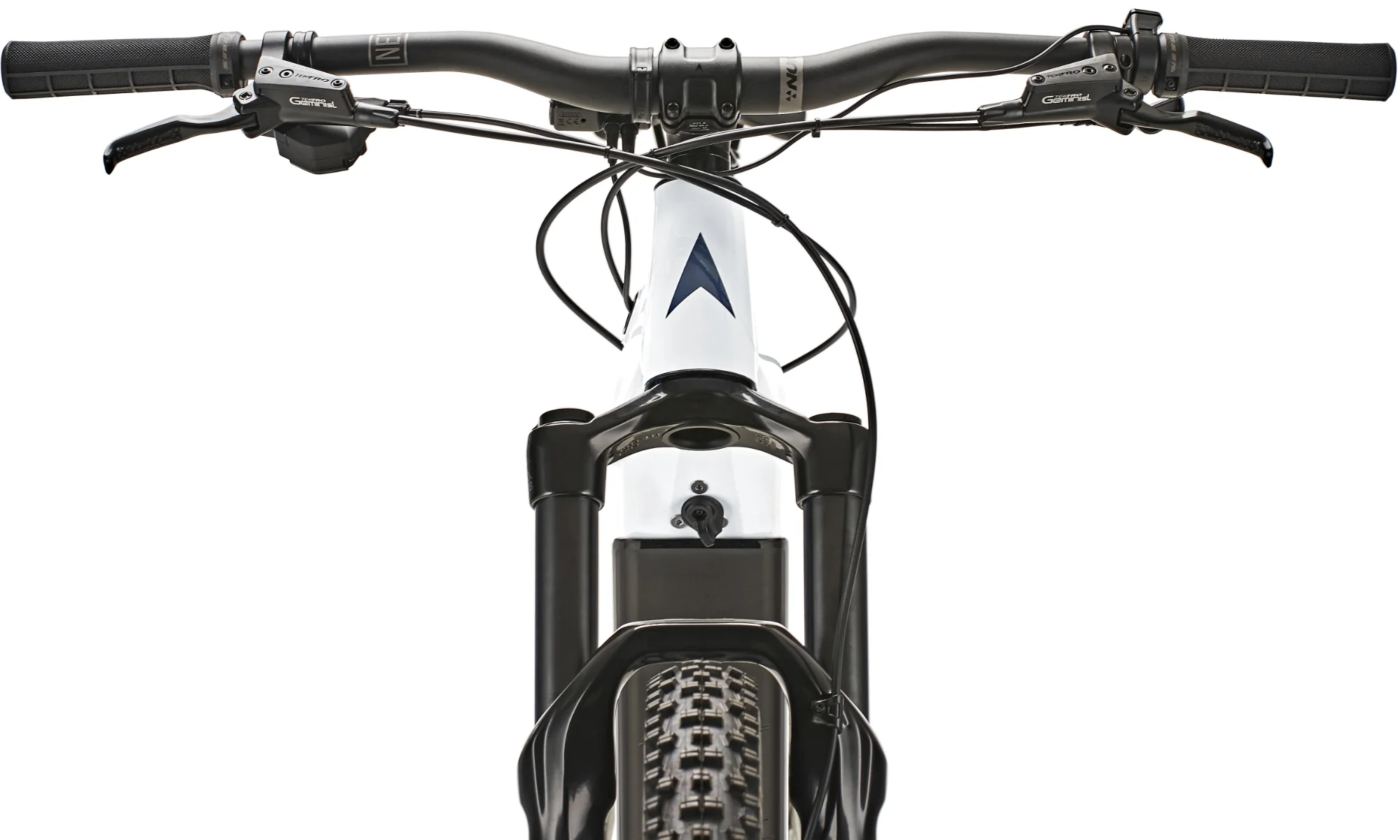

 6061 Alloy, 9° Back Sweep, 25mm Rise, 31.8mm Clamp Diameter, S & M: 760mm Wide, L & XL: 780mm Wide |
 10 Speed, 118 Links |
 40mm Reach, 3° Rise, 31.8mm Handlebar Clamp Diameter |
 630Wh, Downtube Integrated |
 Semi-integrated, ZS44/28.6 upper & ZS56/40 lower |

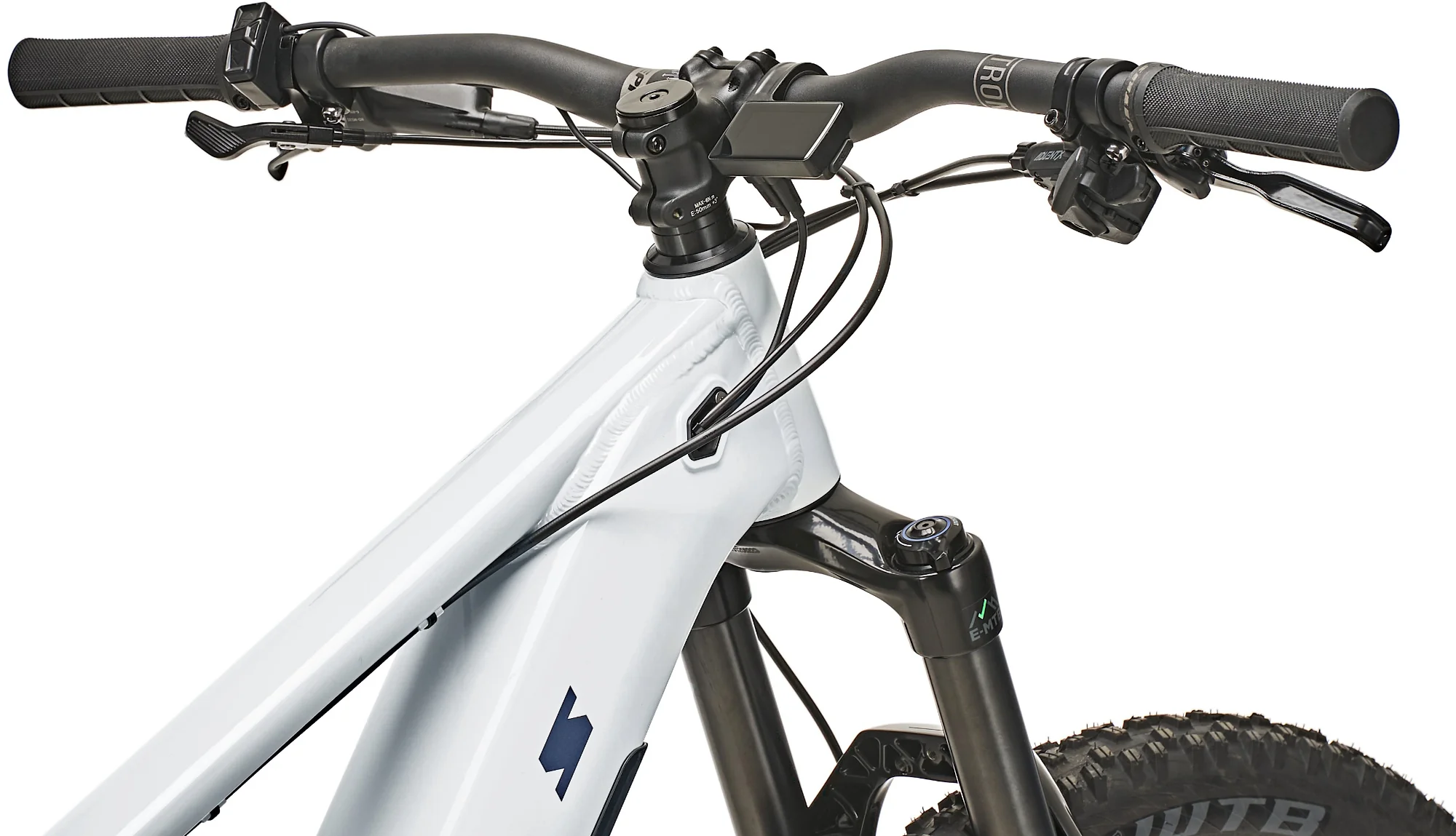

 Colour LCD Screen, 5 Modes |
 Black |
 Mounted on left |
 Black, Steel Rails |
|
Max Power Output 250W, Max Torque 95Nm |

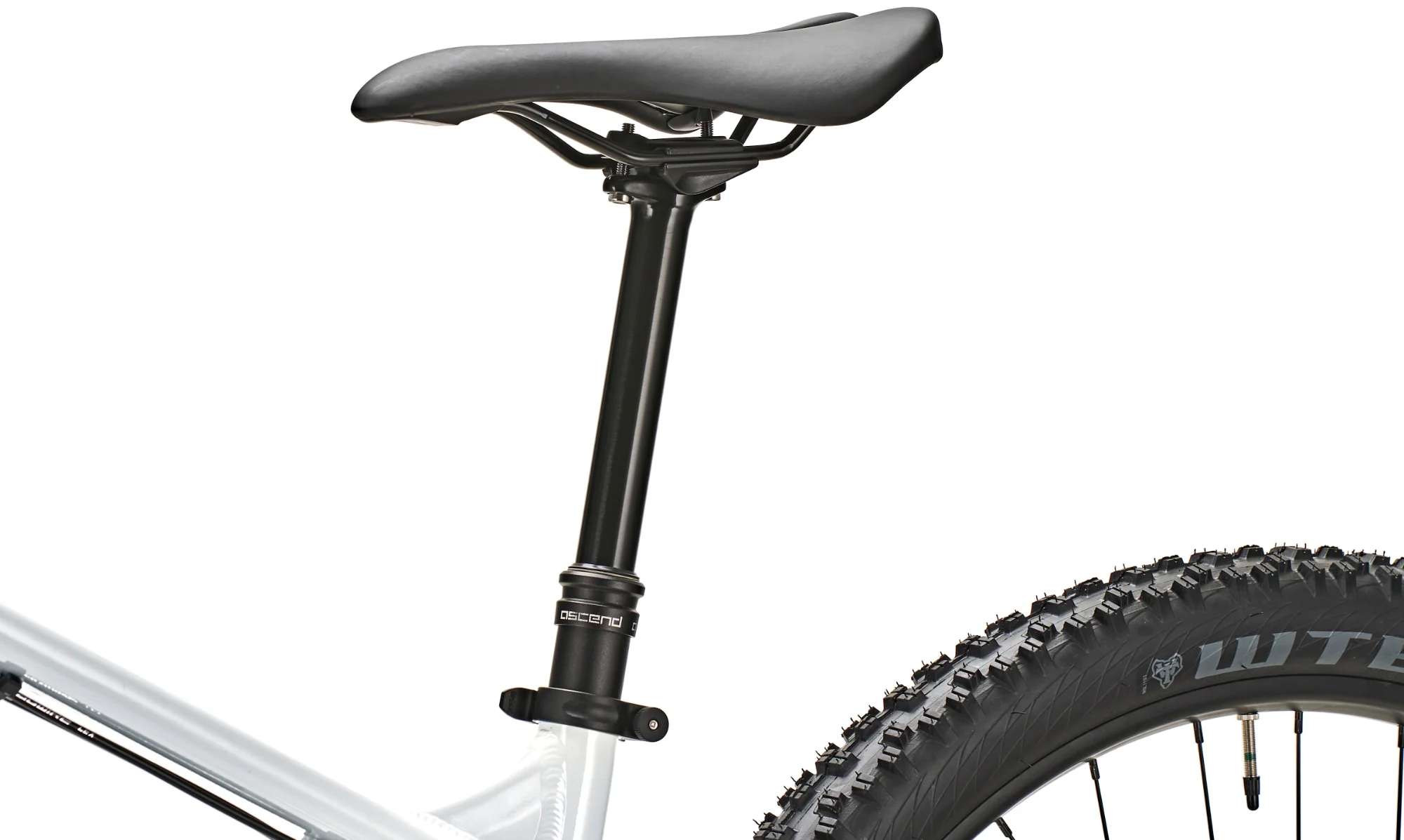

 Remote lever, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop |
|
S: 27.5", M/L/XL: 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed |
 34.9mm Diameter |
